Introduction to the IRF1404PBF MOSFET by Infineon Technologies

The IRF1404PBF from Infineon Technologies represents a high-performance, N-channel enhancement-mode HEXFET® Power MOSFET. It is engineered with seventh-generation process technology to deliver ultra-low on-resistance and high efficiency in demanding power management applications. Housed in the widely adopted TO-220AB package, the IRF1404PBF is specifically designed for applications requiring robust switching and high current capabilities up to 202A at a drain-to-source voltage of 40V. This device addresses the needs of circuit designers working in power conversion, automotive electronics, industrial control, and other fields where reliability and switching speed are critical.

Main Attributes of the IRF1404PBF

The IRF1404PBF is distinguished by several advanced features that support high-performance system design:

Ultra-Low On-Resistance: With a maximum R_DS(on) of 0.004Ω, the device minimizes conduction losses, boosting overall system efficiency in high current configurations.

Fast Switching Capability: HEXFET power MOSFET architecture ensures low gate charge and rapid switching, enabling high-frequency operation and reducing switching losses.

High Operating Temperature: Designed to operate reliably at junction temperatures up to 175°C, making the IRF1404PBF suitable for environments with extreme thermal demands.

Avalanche Rated: The device's robust construction allows it to withstand and safely dissipate energy from high-voltage transients in unclamped inductive loads, supporting fully avalanche-rated operation.

Dynamic dv/dt Performance: Designed to tolerate rapid voltage transients, critical for inductive load switching and motor drive circuits.

Lead-Free and Environmentally Compliant: The IRF1404PBF is available in a lead-free package, supporting compliance with global environmental directives.

These attributes make the IRF1404PBF a preferred solution for engineers seeking durability, speed, and efficiency in power switching designs.

Technical Data and Electrical Ratings of the IRF1404PBF

A detailed understanding of the IRF1404PBF electrical ratings is necessary for optimizing circuit performance and ensuring device reliability. Key ratings include:

Drain-to-Source Voltage (V_DS): 40V

Continuous Drain Current (I_D): 202A (limited by maximum junction temperature; package constraint: 75A)

Power Dissipation: Up to 333W (case temperature consideration)

Gate Charge and Capacitance: Optimized for efficient drive circuitry, enabling high-speed switching and effective voltage control.

Thermal Resistance: The TO-220AB package features low junction-to-case thermal resistance, supporting high power dissipation and simplified heat management.

Safe Operating Area and Avalanche Energy: Detailed in device curves, the IRF1404PBF allows designers to evaluate short-duration and repetitive pulse conditions, ensuring reliable operation under transient events.

Threshold Voltage: The transfer characteristics provide predictable switching behavior across a typical range, favoring precision in digital and analog control systems.

These technical ratings must be considered in conjunction with layout, cooling, and overall system architecture to maximize device longevity and system safety.

Operational Performance of the IRF1404PBF in Practical Applications

Applying the IRF1404PBF in an engineering context requires careful evaluation of its switching and conduction performance:

Switching Performance: The part's fast turn-on and turn-off times are supported by low gate resistance and charge, making it ideal for high-frequency DC-DC converters and motor control.

Conduction Losses: Ultra-low R_DS(on) results in reduced I²R losses during power delivery, which is crucial in high-current scenarios like battery or capacitor bank management.

Avalanche and Overvoltage Handling: The fully avalanche-rated structure ensures safe absorption of transient voltage spikes, a common requirement in automotive relay switching, solenoid control, or industrial automation where load dump and inductive kickbacks are present.

Thermal Management: The TO-220AB package and high junction temperature rating allow for compact heatsink solutions in confined board spaces, supporting reliable performance in demanding layouts.

Engineers should examine typical application waveforms, safe operating areas, and transient performance curves in the datasheet to ensure compliance with system safety margins and to avoid overstressing the device under dynamic conditions.

Package Specifications and Installation Guidelines for the IRF1404PBF

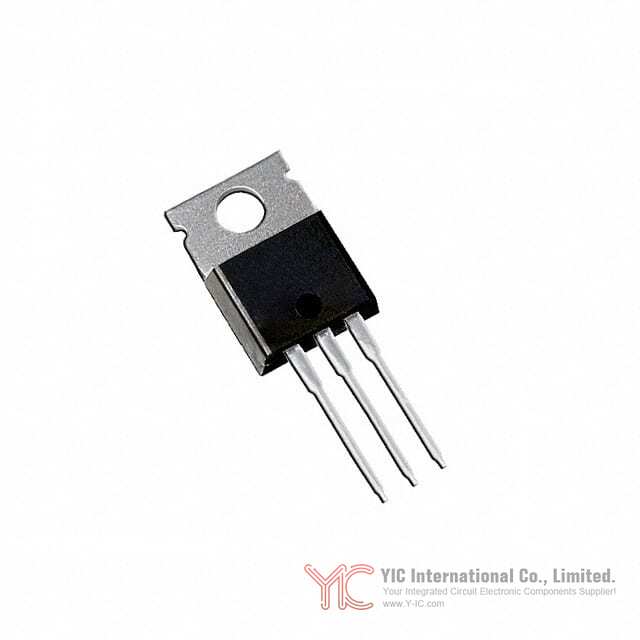

The IRF1404PBF is delivered in a TO-220AB through-hole package, renowned for its mechanical robustness, low package thermal impedance, and ease of assembly in industrial and commercial designs. It is not recommended for surface-mount applications and is best employed in power stages requiring straightforward heatsink mounting and high electrical isolation. Package outline drawings and marking information facilitate BOM validation and physical inspection during procurement and assembly. Engineers should reference the most current mechanical drawings for exact mounting dimensions and ensure proper heatsink selection to capitalize on the device’s thermal dissipation capability.

Environmental Standards, Reliability, and Application Certifications of the IRF1404PBF

Infineon Technologies qualifies the IRF1404PBF primarily for industrial applications; comprehensive reliability data and qualification standards are provided to meet stringent lifecycle requirements. The device is compliant with global environmental regulations (EAR99), with lead-free construction supporting widespread deployment. Automotive-qualified versions are available for systems requiring enhanced robustness and long-term field operation. Application consideration notes encourage engineering teams to confirm suitability for safety-critical roles and to observe all specified usage restrictions, especially in contexts where reliability impacts end-user safety.

Alternative or Substitute Options for the IRF1404PBF

Selecting suitable alternatives or replacements to the IRF1404PBF is an important aspect of risk management and supply chain resilience. When considering equivalency, engineers should focus on matching critical ratings such as V_DS (40V), I_D (202A), R_DS(on) (0.004Ω), package type (TO-220), and avalanche capability. Potential equivalents may exist within Infineon’s HEXFET® Power MOSFET range or from comparable N-channel power MOSFET offerings from other manufacturers. Attention must be paid to differences in thermal management, switching speed, and qualification status (industrial vs. automotive). Cross-reference guides and detailed datasheet reviews are recommended for thoroughly vetting candidates. For automotive applications, engineers should reference the Infineon automotive-qualified version per manufacturer guidance.

Conclusion

The IRF1404PBF from Infineon Technologies stands out as a robust, efficient, and flexible N-channel power MOSFET solution for high-current, fast-switching design requirements in industrial and automotive sectors. Its combination of ultra-low on-resistance, avalanche robustness, and high thermal capability addresses the core needs of product selection engineers and procurement professionals focused on reliability, performance, and global compliance. Careful examination of its technical specifications, application scenarios, and equivalent models supports informed, future-proof design decisions and successful component integration in a wide range of advanced power electronic systems.
