Atmel ATMEGA169PV-8AUR

Introduction to the ATMEGA169PV-8AUR Microcontroller

The ATMEGA169PV-8AUR, manufactured by Microchip Technology, is an 8-bit AVR microcontroller designed for high-performance, low-power embedded applications. Housed in a 64-TQFP (thin quad flat package), the device is equipped with 16 KB of in-system self-programmable flash, 512 bytes of EEPROM, and 1 KB internal SRAM, making it suitable for a broad spectrum of resource-constrained control systems. Alongside its processing and memory features, the ATMEGA169PV-8AUR offers a dedicated LCD controller, advanced RISC architecture for fast instruction execution, and comprehensive peripheral sets to support complex embedded applications in industrial, consumer, and instrumentation fields.

Processor Structure and Performance Details of ATMEGA169PV-8AUR

At the heart of the ATMEGA169PV-8AUR lies an enhanced AVR RISC core, utilizing a rich instruction set and 32 general-purpose working registers, each directly linked to the arithmetic logic unit (ALU). This arrangement enables high-speed, single-clock execution of most instructions and efficient access to memory and peripherals, raising throughput up to 1 Million Instructions Per Second (MIPS) per MHz of system clock. The device operates at up to 8 MHz with supply voltages between 2.7 V and 5.5 V, or up to 4 MHz down to 1.8 V, making it suitable for both legacy and battery-operated designs. The fully static operation expands application versatility, and the integrated two-cycle multiplier further accelerates complex mathematical tasks in control and display systems.

Embedded Memory Architecture in ATMEGA169PV-8AUR

The on-chip memory suite of the ATMEGA169PV-8AUR is engineered for reliability and flexibility. Its 16 KB flash memory supports Read-While-Write operation, allowing application firmware updates without halting operation—a critical advantage in systems requiring high availability. The 512 bytes of EEPROM offer non-volatile storage for configuration parameters, calibration data, or user settings, with endurance of up to 100,000 write/erase cycles and industry-leading data retention (20 years at 85°C / 100 years at 25°C). The 1 KB SRAM enables fast and efficient real-time data processing. The boot code section and programming lock mechanisms ensure in-system programmability with enhanced software security.

Peripheral Capabilities and Interface Options of ATMEGA169PV-8AUR

The ATMEGA169PV-8AUR stands out for its comprehensive on-chip peripherals. Key integrated features include:

4 × 25-segment LCD driver, supporting direct connection of multi-segment displays, eliminating the need for external controllers.

Three advanced timer/counters: two 8-bit modules and one 16-bit module, each with independent prescalers, compare, and capture modes for precise time and event management.

Four PWM channels, an 8-channel 10-bit ADC, and an analog comparator facilitate mixed-signal sensing and control.

A real-time counter with dedicated oscillator ensures accurate clock/calendar functions.

Diverse serial interfaces: a USART for asynchronous communication, SPI for high-speed synchronous communication, and a Universal Serial Interface (USI) with Start Condition Detector for flexible protocol support.

Enhanced security and debugging capabilities include a JTAG interface (IEEE 1149.1 compliant) for boundary-scan, on-chip programming, and extensive debug support.

Interrupt and wake-up functions, including pin-change interrupts, enable responsive and efficient event-driven designs.

A programmable watchdog timer with an independent oscillator enhances system reliability by providing automatic recovery from software anomalies.

Ultra-Low Energy Consumption and Power Regulation in ATMEGA169PV-8AUR

Energy efficiency is a defining characteristic of the ATMEGA169PV-8AUR. The device offers five software-selectable sleep modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby, enabling engineers to tailor power consumption according to operational demands. In active mode at 1 MHz and 1.8 V, current consumption is as low as 330 μA. Standby or power-save modes can bring that down to microamp-level currents (down to 0.1 μA at 1.8 V in power-down mode). Even when the LCD and oscillator are enabled, total current remains remarkably low—a vital attribute for portable, battery-powered, or energy-harvesting applications. The on-chip brown-out detector and programmable power-on reset bolster system reliability across power cycling events.

Package Variations and Pin Layout of ATMEGA169PV-8AUR

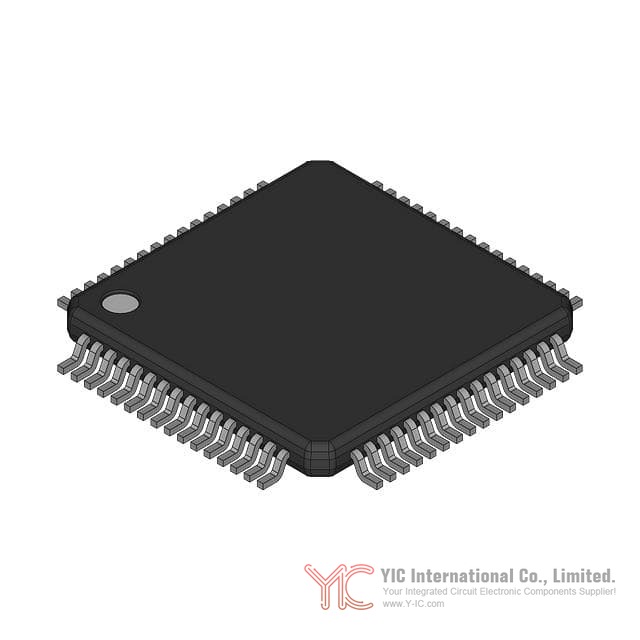

The ATMEGA169PV-8AUR is primarily available in a 64-pin TQFP package with 54 programmable I/O lines, providing substantial flexibility for complex interface and expansion needs. The platform also supports dual-row QFN/MLF and DRQFN variants for applications requiring minimized PCB footprint or alternative mounting options. The device pinout is optimized for straightforward hardware integration, including dedicated analog reference, supply, LCD reservoir, oscillator terminals, and unified digital/analog I/O groups, supporting both general-purpose and mixed-signal roles. Special attention to ground and power pin layout ensures robust EMC performance and reliable analog measurements in harsh environments.

Alternative or Replacement Options for the ATMEGA169PV-8AUR

When considering product selection or replacement, engineers should note the close compatibility within the ATmega169P series, particularly the ATmega169P non-V variant. The ATMEGA169P offers higher maximum clock capability (up to 16 MHz at 4.5–5.5 V), making it appropriate where performance margins are critical. For most other characteristics—pinout, peripheral set, memory configuration, and package options—the ATMEGA169PV-8AUR is form-, fit-, and function-compatible with other models within this series. When selecting an equivalent or upgrading, engineers should carefully assess voltage and timing requirements, as well as any LCD controller implementations or specific package needs.

Conclusion

: ATMEGA169PV-8AUR’s Role in Modern Embedded Designs

The ATMEGA169PV-8AUR is a robust, versatile 8-bit AVR microcontroller, uniquely suited for embedded applications requiring a blend of low power, high integration, ample non-volatile memory, and sophisticated peripheral support—including direct LCD drive. Backed by comprehensive development tools and a proven architecture, it enables efficient, cost-effective, and reliable embedded solutions. With its low active and standby power profiles, flexible package choices, and advanced system functions, the ATMEGA169PV-8AUR continues to hold relevance for engineers and procurement teams tasked with selecting the optimum microcontroller platform for next-generation electronic products.
