AT91SAM9CN11-CU Microprocessor General Product Summary

The AT91SAM9CN11-CU from Microchip Technology is a high-performance, application-oriented 32-bit embedded microprocessor based on the ARM926EJ-S core. Operating at up to 400 MHz and integrating a comprehensive suite of connectivity, security, and memory features, the AT91SAM9CN11-CU is engineered for applications demanding advanced user interfaces, high data throughput, and robust cryptographic capability. Its integration of peripheral controllers—including LCD, touchscreen, SDIO, USB, and serial interfaces—positions the device as a prime candidate for modern industrial, automation, control, and secure IoT designs.

Core Design and Processing Capabilities of AT91SAM9CN11-CU

Central to the AT91SAM9CN11-CU is the ARM926EJ-S processor core, supporting both the ARM (32-bit) and Thumb (16-bit) instruction sets, as well as Jazelle acceleration for Java bytecode. This enables designers to balance high-performance C code with dense binary images, and to efficiently implement on-board Java virtual machines when required.

The ARM926EJ-S in this device runs at up to 400 MHz, equipped with separate 16 KB instruction and data caches, a full memory management unit (MMU), and tightly coupled memory interfaces for both instruction and data paths. A five-stage pipeline supports high-throughput execution, including enhanced digital signal processing (DSP) instructions.

Integrated debug features include JTAG/ICE ports and an on-chip debug unit, facilitating in-circuit emulation, real-time breakpoints, and communication channel tracing without adverse effects on application timing or code integrity.

Memory System and Startup Methods for AT91SAM9CN11-CU

The AT91SAM9CN11-CU provides a flexible memory subsystem tailored for high-speed and robust embedded applications:

On-chip, it features 128 KB ROM (housing boot routines and ECC tables) and 32 KB of high-speed SRAM.

Externally, the device supports up to 8-bank DDR2/LPDDR and SDR/LPSDR mainstream memories via a 32-bit external bus interface.

Control and ECC for both SLC and MLC NAND flash are provided, with programmable multibit error correction (PMECC) and hardware error location for enhanced data integrity—critical for industrial or mission-critical deployments.

Its boot strategy supports multiple sources: internal ROM, external NAND, SD Card, SPI Flash, and TWI/I2C EEPROM. Boot selection is configurable using the BMS pin and Boot Sequence Controller, enhancing flexibility during manufacturing or in field updates. In the AT91SAM9CN11-CU and related devices, the ROM contains a first-level bootloader for robust multi-media boot and includes the SAM-BA Monitor for communication and firmware updating over USB or serial lines.

System Regulation and Power Optimization in AT91SAM9CN11-CU

Comprehensive power control and system integration are hallmarks of the AT91SAM9CN11-CU’s design. The System Controller covers reset management, clock selection, power sequencing, and real-time clock (RTC) support—all mapped within addressable registers for easy system software integration.

Features of note include:

Dynamic clock gating and multiple power-saving modes, such as shutdown, idle, and slow clock operation, to minimize both static and dynamic power consumption.

On-chip 32 kHz and 12 MHz RC oscillators, as well as PLLs for multi-frequency operation—including one PLL dedicated to USB timing.

A logic-controlled reset controller that prioritizes various reset sources (backup, power-on, software, watchdog, user-initiated), ensuring reliable state recovery across power events and fault conditions.

Battery-backed RTC and backup registers, supporting timekeeping and data preservation across main power outages.

Enhanced Peripherals and Connectivity Features of AT91SAM9CN11-CU

For interface flexibility and integration, the AT91SAM9CN11-CU offers an extensive array of peripherals:

LCD controller with resistive touchscreen support for embedded UI applications.

USB 2.0 Full-Speed Host and Device controllers with on-chip PHY for direct USB connectivity.

High-speed SD/SDIO controller for storage and wireless cards.

Multiple serial communication blocks: four USARTs and two UARTs, two SPIs, two TWI/I2C, and an SSC for synchronous data transfers.

Analog subsystem featuring a 12-channel, 10-bit ADC with touchscreen wire support.

PWM controller and sophisticated timers/counters for sensor, actuator, motor, and industrial automation tasks.

Up to 105 programmable digital I/Os, with comprehensive multiplexing and configuration (open-drain, pull-up/down, Schmitt trigger inputs, etc.), suitable for extensive signal interfacing without the need for external logic.

Security Mechanisms and Encryption Support in AT91SAM9CN11-CU

Addressing the growing need for data and application security in embedded designs, the AT91SAM9CN11-CU integrates advanced cryptographic hardware and security mechanisms:

True Random Number Generator (TRNG), compliant with NIST SP 800-22, suitable for cryptographic key generation and exchange.

On-device hardware accelerators for AES (128-, 192-, and 256-bit keys) and SHA1/SHA256 (FIPS compliant) ensure high-speed, secure data operations with minimal CPU involvement, and direct DMA support for high-throughput applications.

One-Time Programmable fuse bits for storing cryptographic keys and device configuration, including secure JTAG disable and forced boot from secure ROM.

Hardware support for device authentication and encrypted/secure boot (including binding boot firmware to device-unique keys in related models), ideal for anti-cloning and IP protection in critical environments.

Interrupt System High-Performance Interrupt Controller in AT91SAM9CN11-CU

Efficient, deterministic interrupt handling is delivered by the Advanced Interrupt Controller (AIC):

Supports 32 sources, including internal peripherals and externally routed signals.

Individually programmable priority and masking provides fine-grained preemption and nested interrupt handling.

Hardware vectoring enables rapid context switching—ideal for real-time operating systems (RTOS) and time-sensitive industrial control.

Features such as "Fast Forcing" allow selected interrupts to be upgraded to fast interrupt requests (FIQ) for lowest-latency handling.

Write protection, interrupt source test/debug, and spurious interrupt detection/recovery enhance reliability and debuggability.

Package Type, Pin Configuration, and Electrical Specifications for AT91SAM9CN11-CU

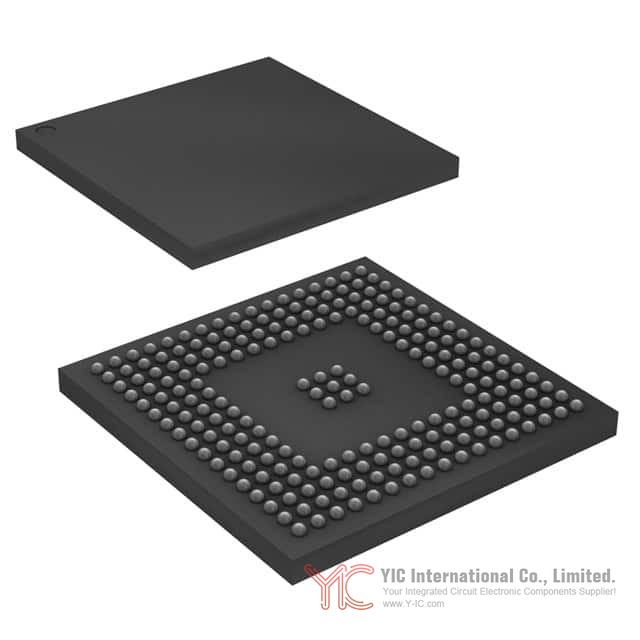

The AT91SAM9CN11-CU is supplied in a solderable 217-ball LFBGA package with a 0.8 mm ball pitch, optimizing for PCB cost and manufacturability in dense, multi-layer embedded boards. Pinout is structured for high signal integrity, memory expansion, and minimal external glue logic.

Key electrical and environmental characteristics include:

I/O lines independently configurable for 1.8V or 3.3V operation (both memory and peripheral interfaces), permitting direct interfacing with modern and legacy components without external level shifters.

Defined power supply sequencing requirements and hardware POR ensure reliable device initialization.

Multiple power domains (core, backup, I/O, PLL) permit low-power design techniques and system-level optimization.

Debugging, Testing, and Development Resources for AT91SAM9CN11-CU

Robust support for firmware development and high-volume test is intrinsic to the AT91SAM9CN11-CU:

Dual-mode JTAG/ICE interface supports broad tool compatibility and allows for both device programming and in-depth, non-intrusive system debugging.

On-chip debug unit with dedicated debug UART enables application code download, trace, and runtime diagnostics.

Boundary-scan (IEEE 1149.1) accessible on all digital pins for rapid automated test and functional verification in production.

Alternative or Substitute Models for AT91SAM9CN11-CU

When considering alternatives or replacements for the AT91SAM9CN11-CU, engineers should explore other members of the same family, notably the SAM9CN12 (featuring secure boot capabilities and additional fuse bits) and the SAM9N12 (with a more basic security feature set but similar processing and peripheral capabilities).

Key considerations when selecting a potential equivalent include:

Required cryptographic/security features: The SAM9CN12, for example, adds secure boot and additional fuse bits for applications needing enhanced firmware protection.

Package pinning and compatibility: The package and pinout are consistent within the series when selecting the same BGA variant, easing migration.

Performance needs: All share the ARM926EJ-S core and similar memory configurations, but minor differences in ROM/boot implementation may affect the choice in specific secure or cost-sensitive applications.

Conclusion

The Microchip Technology AT91SAM9CN11-CU is a sophisticated ARM9-based embedded MPU platform, optimized for security, connectivity, and interface-rich designs where reliability, power efficiency, and development flexibility are pivotal. Its carefully balanced mix of high-speed processing, robust memory and I/O architecture, security hardware, and comprehensive power and debug control addresses a wide range of industrial, control, and secure IoT applications.

When integrating the AT91SAM9CN11-CU, engineers benefit from a scalable, thoroughly documented, and field-proven architecture—balancing modern performance trends with the reliability and longevity required in embedded system deployments. The adaptable memory, security, and peripheral landscape ensures that the device remains a solid foundation for both new and legacy systems, while the interoperability and compatibility within the SAM9 family provides clear migration and design-in pathways for future product generations.
