Overview of the MAX9268GCM/V+T Product

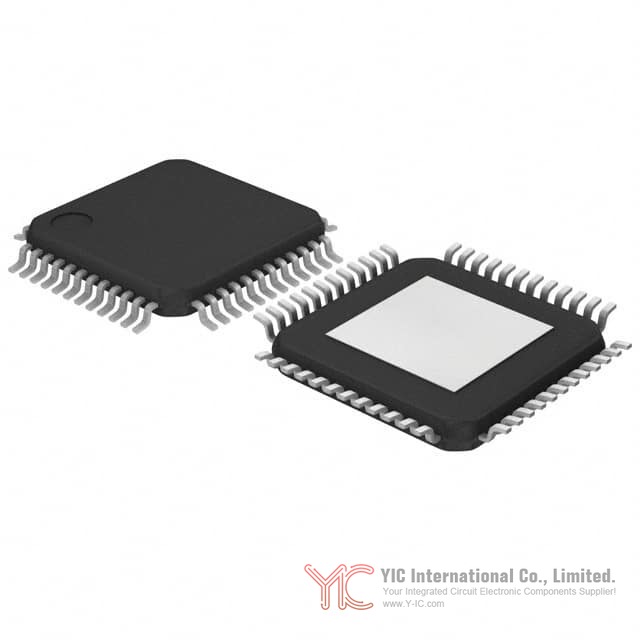

The MAX9268GCM/V+T, manufactured by Analog Devices Inc./Maxim Integrated, is a high-performance deserializer utilizing Gigabit Multimedia Serial Link (GMSL) technology. Integrating a Low-Voltage Differential Signaling (LVDS) system interface, the MAX9268GCM/V+T is designed to deliver seamless conversion of high-speed serialized data back into parallel LVDS signals for systems demanding robust, long-range, and EMI-resilient connectivity. Available in a space-efficient 48-pin TQFP package with an exposed pad (7x7 mm), this device targets automotive, camera, and infotainment system designers seeking reliable high-data-rate links for video, audio, and control data over extended cable distances.

-

Main Functions and Features of the MAX9268GCM/V+T

The MAX9268GCM/V+T supports a maximum serial payload of 2.5Gbps, enabling high-resolution and color-rich video transmission, including WXGA (1280 x 800, 24-bit color) panels, over shielded twisted-pair cabling exceeding 15 meters in length. Its LVDS output interface offers flexible 3-channel (21 bits) or 4-channel (28 bits) modes, catering to a wide range of video display requirements.

Audio transmission is supported via an I²S interface, accommodating word lengths from 4 to 32 bits at sampling rates from 8kHz to 192kHz, ensuring high-fidelity sound. A full-duplex, bidirectional embedded UART control channel, scalable from 100kbps to 1Mbps, supplements system-level communication for configuration and peripheral control, including real-time panel adjustments and peripheral device management.

Advanced features such as a programmable equalizer (12 selectable compensation levels up to 13dB), LVDS output spread spectrum for EMI reduction (±2%, ±4%), and robust error checking with PRBS test patterns and error registers bolster system reliability and compliance. Protection mechanisms comply with automotive-grade ESD standards (ISO 10605, IEC 61000-4-2), enabling the MAX9268GCM/V+T to withstand harsh operating environments.

-

Integration into Systems and Use Cases for the MAX9268GCM/V+T

Engineered for flexibility, the MAX9268GCM/V+T pairs with any compatible GMSL serializer, allowing for broad deployment scenarios across automotive infotainment, high-resolution navigation, rear-seat displays, and megapixel camera architectures. In display-centric deployments, the deserializer is typically positioned at the display module's end, while for camera or sensor applications, it resides on the receiving processor board.

Versatile control channel options enable both base (half-duplex, addressable register access using GMSL UART or I²C protocol conversion) and bypass (full-duplex, custom UART) communication modes. The device supports microcontroller placement on either side or both sides of the GMSL link, with provisions for resolving bus contention and facilitating dual-host operation.

Integrated sleep and power-down modes optimize system power consumption when links or peripherals are inactive. Multiple boot and startup options accommodate varied system topologies and power sequencing requirements, such as autostart, standby, and wake-on-command modalities for both display and image-sensing applications.

-

Electrical and Environmental Specifications of the MAX9268GCM/V+T

Operating from a core voltage supply of 3.3V and I/O supply in the range of 1.8V to 3.3V, the MAX9268GCM/V+T ensures compatibility with a broad spectrum of logic families and system voltages. The device is specified for automotive temperature extremes from –40°C to +105°C.

Absolute maximum ratings include robust ESD handling capabilities: up to ±12kV (air discharge) and ±10kV (contact discharge) per ISO 10605 for serial data inputs, with other pins rated for up to ±8kV (air and contact discharge). The package supports a maximum junction temperature of +150°C and is optimized for efficient heat dissipation.

DC and AC electrical characteristics (including supply current versus clock frequency, LVDS timing, and signal integrity parameters) are specified across the industrial temperature range, enabling reliable engineering evaluation and system design.

-

Design Approaches for Configuration, Control, and Audio Management in MAX9268GCM/V+T

Register mapping on the MAX9268GCM/V+T facilitates fine-tuned device operation, with programmable device addresses (three-level logic for ADD0/ADD1 or via register access), and granular configuration of LVDS output widths, spread spectrum, equalization, and audio channels.

The I²S audio support allows integration with a variety of audio codecs and DACs. If required, the device can generate an MCLK (master clock) output, programmable via internal dividers, leveraging either the output pixel clock or an internal oscillator, ensuring adaptation to differing DAC timing requirements.

The embedded UART-based control channel supports both base mode operation (host-register and peripheral access with packet acknowledgment) and bypass mode (transparent, system-defined UART communication), allowing system architects to optimize for complexity or real-time constraints. The channel also provides for I²C command-byte-only devices, supporting peripheral management without register addressing.

Special attention is given to error management: decoding errors are tracked in dedicated registers, with user-configurable thresholds for error alarm output, automatic error reset capabilities, and a built-in PRBS generator for link margin evaluation.

-

Methods for Ensuring Signal Quality and Electromagnetic Compatibility with the MAX9268GCM/V+T

Interfacing at gigabit speeds mandates disciplined signal integrity practices. Differential signaling over shielded twisted-pair or microcoaxial cables with 100Ω characteristic impedance is essential. The programmable equalization enables compensation for cable attenuation from 2.1dB to 13dB, ensuring optimal eye opening over long cable runs.

EMI mitigation is addressed through user-selectable spread spectrum on LVDS and control outputs, with programmable modulation frequencies and depths to comply with emissions standards without degrading high-speed data or audio performance.

ESD protection is integral to the MAX9268GCM/V+T, with compliance to HBM, IEC, and ISO standards, ensuring resilience against assembly, service, and operational electrostatic events typical in automotive and industrial environments.

-

Guidelines for Implementing the MAX9268GCM/V+T at the Board Level

For robust PCB layouts, engineers should partition digital and high-speed differential domains, use continuous ground and power planes, and follow differential pair design conventions (closely coupled, matched-length traces for 100Ω differential impedance). Avoiding via usage and maintaining symmetry in pair routing minimizes skew and reflections.

AC-coupling capacitors are necessary for isolation and protection, with a minimum value of 0.2μF (high-frequency ceramic, small case size), deployed at both serializer and deserializer ends. LVDS and control pullups must balance speed and power, with consideration given to total bus capacitance and required rise times.

Proper voltage bypassing, connector selection, and cable matching are critical. Connectors and cables should be chosen to minimize impedance discontinuities and EMI susceptibility, leveraging recommendations based on the deployment context.

-

Alternative or Substitute Models for the MAX9268GCM/V+T

When considering alternate devices to the MAX9268GCM/V+T, engineers should evaluate product options with comparable GMSL or similar serialized high-speed multimedia link capabilities, LVDS output interfaces, support for video up to WXGA resolutions, embedded control channels, and automotive-grade reliability. Devices such as the Analog Devices/Maxim Integrated MAX9278A (which features similar GMSL deserialization and LVDS interfacing), or offerings in the same GMSL deserializer family, may serve as viable equivalents, though verification of detailed feature alignment—particularly in spread spectrum, equalization depth, I²S support, and package options—remains essential for drop-in compatibility.

-

Conclusion

The MAX9268GCM/V+T stands out as a highly integrated, high-speed GMSL deserializer for demanding automotive, camera, and display applications. Its robust feature set addresses signal integrity, system control, and EMI mitigation while providing the flexibility and reliability demanded by modern engineering designs. By following best practices in configuration, signal integrity, and board implementation, product selection engineers and system designers can confidently leverage the MAX9268GCM/V+T for next-generation, high-bandwidth, low-latency multimedia links.
