Analog Devices Inc./Maxim Integrated MAX13451EAUD+

MAX13451EAUD+ RS-485 Transceiver Product Summary

The MAX13451EAUD+ from Analog Devices/Maxim Integrated is a half-duplex, RS-485-compatible transceiver featuring integrated termination resistors and advanced diagnostic capabilities. Targeted at robust industrial communication systems, the MAX13451EAUD+ is designed for multidrop and point-to-point data transmission across industrial control systems, portable equipment, motor and security networks, and medical networks. Provided in a space-efficient 14-pin TSSOP package with exposed pad, it operates across the automotive temperature range of -40°C to +125°C.

Main Attributes of the MAX13451EAUD+

The MAX13451EAUD+ is engineered to simplify RS-485 network configuration and enhance system reliability. Notable features include:

Integrated, pin-selectable 100Ω/120Ω termination resistors, eliminating the need for external resistor assemblies or DIP switches.

A 1/8-unit load receiver input, supporting up to 256 transceivers per bus, ideal for large distributed networks.

Operation with logic supply voltages as low as +1.8V, supporting interfacing to low-voltage logic systems such as modern ASICs and FPGAs.

Strong driver output stages capable of handling doubly terminated buses and supporting popular twisted-pair cables (Cat-5, Cat-6, and 24-AWG types).

Pin-selectable slew rate limiting for reduced electromagnetic interference (EMI) and minimized signal reflections up to 500kbps.

Fail-safe receiver thresholds that guarantee deterministic receiver output under open or shorted input conditions.

Comprehensive ESD protection: ±30kV (HBM), ±15kV (IEC 61000-4-2 air gap), and ±7kV (IEC 61000-4-2 contact).

Built-in thermal and overcurrent protection circuits for enhanced device and system safety.

Unique to the MAX13451EAUD+, an INV input for A/B line inversion (phase correction) and a dedicated FAULT alarm output.

MAX13451EAUD+ Pin Assignments and Function Guide

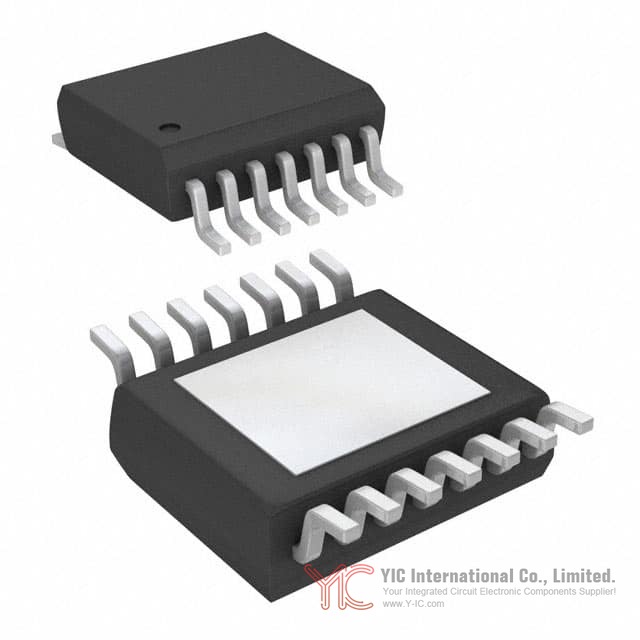

The 14-pin TSSOP-EP package delivers an optimized layout for space-constrained industrial designs. Key pins include:

Data enable (DE), receive enable (RE), driver input (DI), receiver output (RO)

Termination control pins (TERM, TERM100) for resistor selection and activation

Slew rate limiting (SRL) input for EMI performance management

INV pin for reversing A/B line sense (useful for phase correction in installation errors)

FAULT output, flagging driver short circuit, voltage anomalies, or overtemperature

Dual supply rails: VCC (+4.5V to +5.5V) for transceiver core and VL (+1.62V to VCC) for logic interface flexibility

This combination allows engineers to customize device behavior in response to network topology, cable choice, and application-level error handling requirements.

Electrical and Thermal Specifications of the MAX13451EAUD+

The MAX13451EAUD+ supports an industrial/automotive temperature range and robust voltage margins:

Supply voltage: 4.5V to 5.5V (core), logic interface VL: 1.62V up to VCC

Absolute maximum ratings: VCC/VL up to 6V, I/O pins withstanding -8V to +13V on A, B lines

ESD robustness as outlined above

Ample power dissipation with a maximum continuous rating of 2051mW at +70°C and derating above, assisted by a low θJC (3°C/W) for efficient junction-to-case heat spreading

Logic level input compatibility for advanced mixed-voltage systems

Electrical switching characteristics are optimized for both high-speed operation (up to 20Mbps typical, when slew rate limiting is disabled) and EMI-sensitive environments (500kbps and below with slew rate limiting active).

Built-In Termination Resistors of the MAX13451EAUD+

A standout feature of the MAX13451EAUD+ is its built-in, selectable line termination resistors. Users can:

Engage or disengage the termination resistor via the TERM pin (active low enables resistor)

Select between 100Ω and 120Ω values (TERM100 pin—high for 100Ω, low for 120Ω)

This ensures precise impedance matching to current RS-485 twisted-pair standards, simplifying field installation and making dynamic or software-controlled configuration practical. It also increases system reliability by mitigating mis-terminations and the need for discrete termination components—which are common sources of installation errors.

Driver Operation, Fault Detection, and Protection Mechanisms in the MAX13451EAUD+

The MAX13451EAUD+ prioritizes in-system resilience and diagnostic transparency:

A strong driver ensures signal integrity on heavily loaded or doubly terminated buses, critical for networks with long cable runs and many nodes.

The INV pin enables on-the-fly inversion of line polarity. In scenarios where A and B lines are accidentally swapped during wiring, the logical phase can be corrected electrically without rewiring—minimizing system downtime.

The FAULT output actively signals when the device detects a short circuit at its outputs, an over/undervoltage at the differential lines, or excess junction temperature above +150°C. This facilitates rapid fault isolation and maintenance in industrial networks.

Integrated thermal shutdown protects the device: exceeding +150°C disables the driver and termination resistor (receiver remains active), supporting graceful system recovery from transient faults.

The built-in fail-safe receiver circuitry provides deterministic output states in case of bus faults, open wire conditions, or all drivers being disabled, thus preventing “bus float” errors and minimizing false alarms in networked controllers.

ESD and EMI Protection Aspects of the MAX13451EAUD+

The high robustness of the MAX13451EAUD+ to electrostatic discharge events is a key enabler for reliability in industrial, medical, and security environments. The device meets and exceeds standard ESD protection requirements:

Human Body Model: ±30kV

IEC 61000-4-2 Air Gap: ±15kV

IEC 61000-4-2 Contact: ±7kV

No additional external ESD protection is typically required, reducing bill-of-materials costs and improving PCB space utilization.

Pin-selectable slew rate limiting (SRL) empowers the system designer to tailor driver edge rates as appropriate for cable length and EMI regulatory requirements. At data rates up to 500kbps, slew rate limiting minimizes radiated emissions and cable reflections, while for higher speeds (up to 20Mbps), the feature can be bypassed.

Common Use Cases for the MAX13451EAUD+

The MAX13451EAUD+ finds application in:

Industrial control and factory automation: Long multi-drop RS-485 buses with numerous sensor/actuator nodes

Motor drives and equipment demanding high immunity to electrical noise and ESD transients

Security and access networks where diagnostic and fault signaling is crucial

Medical instrumentation benefiting from robust isolation and fail-safe bus communication

Its 1/8-unit load receiver extends the feasible number of transceivers in a network by a factor of eight compared to traditional RS-485 designs, supporting up to 256 transceivers. This makes it a prime choice for networks needing extensive scaling without segmentation. Additionally, low-power shutdown capability brings further energy savings in battery-powered or standby-mode industrial/portable deployments.

Alternative and Substitute Models for the MAX13451EAUD+

When selecting or preparing for second-source or replacement options for the MAX13451EAUD+, engineers may consider:

The MAX13450E (full-duplex variant in the same Analog Devices/Maxim Integrated family, with similar termination and ESD features but supporting full-duplex operation and lacking the FAULT and INV capabilities)

Competing RS-485 transceivers from other major manufacturers with:

- Integrated, selectable termination resistors

- 1/8-unit load receivers

- High ESD protection (matching or exceeding ±30kV HBM)

- Slew rate limiting for EMI-sensitive installations

However, implementations of switchable line inversion (INV input) and integrated FAULT output are relatively unique, and careful cross-reference to data sheets is recommended to ensure feature equivalency, especially for designs relying on in-field diagnostics or automatic network topology correction.

Conclusion

The MAX13451EAUD+ RS-485 transceiver from Analog Devices/Maxim Integrated addresses key challenges in dense, high-reliability industrial communication networks by integrating advanced features such as built-in, selectable termination resistors, sophisticated fault and inversion signaling, scalable bus loading, and industry-leading ESD protection. These capabilities reduce installation complexity, enhance ongoing maintenance and diagnostics, and contribute significantly to long-term system robustness. Its feature set is especially relevant for engineering teams designing or retrofitting large, multidrop RS-485 networks where configurability, fault resilience, and EMI/ESD immunity are paramount. For most cases where mixed-voltage logic interface, simple cabling, and high node count are required, the MAX13451EAUD+ presents a compelling and technically comprehensive solution.
