onsemi NCP1271D65R2G

Introduction to NCP1271D65R2G

The NCP1271D65R2G from onsemi is a 7-pin current-mode PWM controller optimized for offline flyback power converter applications operating at a fixed 65kHz switching frequency. Housed in a space-efficient SOIC-7 package, this IC integrates advanced standby power management and fault protection mechanisms, supporting the development of rugged, cost-sensitive AC-DC adapters and power supplies for consumer and industrial electronics. Designed as a pin-to-pin compatible upgrade to the established NCP120X family, the NCP1271D65R2G facilitates seamless integration for both new and retrofit designs.

Main functions and technological advancements of NCP1271D65R2G

The NCP1271D65R2G is engineered to address the evolving needs of power supply designers, offering several technical innovations:

Proprietary Soft-Skip™ standby and skip-cycle mode, allowing sub-100 mW standby consumption and minimizing audible noise in low-load scenarios; enables the use of cost-optimized components in clamping networks.

Integrated high-voltage (up to 500V) startup FET, eliminating external bias circuitry and reducing PCB area and power losses during startup.

Timer-based fault protection with accurate overload/short-circuit shut down independent of the auxiliary winding.

Adjustable skip level for customizing the entry threshold into skip mode, balancing energy efficiency and acoustic performance for specific applications.

±5% current limit accuracy over full operating temperature range for consistent performance in demanding environments.

Internal frequency jittering to soften EMI signatures, improving compliance with regulatory standards.

Pin-selectable fixed switching frequency (65kHz for this model) with internal ramp compensation for improved loop stability at high duty cycle.

Latched and non-latched protection logic for integration of overvoltage and overtemperature protection circuits.

Robust gate drive (+500 mA / -800 mA peak) for direct MOSFET control.

Common use cases for NCP1271D65R2G

The NCP1271D65R2G controller is ideal for compact, reliable power supplies where standby efficiency and noise suppression are prime concerns:

AC-DC adapters for notebooks or LCD monitors, requiring low standby power and rapid transient recovery.

Offline battery chargers, where safety functions and efficient light-load operation are critical.

Set-top boxes, DVD/DVRs and other consumer appliances, demanding cost competitiveness and compliance with strict energy regulations.

Electrical properties and operational parameters of NCP1271D65R2G

The controller operates at a typical 65kHz frequency, featuring tight current limit regulation and performance stability across a wide temperature range (-40°C to +125°C). Key figures include:

Standby power draw well under 100mW, enabling compliance with modern standby standards.

Timer-based fault protection triggers at >130ms of overload/short-circuit, entering double hiccup mode to prevent thermal stress and allow cooling periods.

Maximum duty cycle capped at 80% for MOSFET protection.

Integrated 4ms soft-start ramp, minimizing component stress during power-up.

Internal ramp compensation synchronized to clock, facilitating continuous mode stability.

Working configurations of NCP1271D65R2G

The device supports multiple operating states for flexible power supply management:

Normal operation: Fixed frequency current-mode control with feedback regulation for full-load conditions.

Standby/skip cycle mode: Power dissipation is reduced by skipping pulses once current falls below the programmable skip threshold, with a proprietary envelope ramp to minimize acoustic noise.

Fault mode: If feedback is lost or Vcc falls below threshold, controller enters double hiccup cycles for overload/short-circuit recovery.

Latched shutdown: Initiated via the skip/latch pin (>8V), keeping the output disabled until a Vcc power-down reset occurs (Vcc < 4V).

Non-latched shutdown: Can be triggered by pulling the feedback pin below the skip threshold or Vcc below 190mV, leading to automatic recovery upon release.

Guidance for selecting components and designing with NCP1271D65R2G

Designers should pay attention to biasing, component values, and PCB layout when implementing the NCP1271D65R2G:

Vcc bias is provided via the integrated high-voltage startup current source; the startup sequence automatically transitions to auxiliary bias after initial power-up.

Sizing the Vcc capacitor—85μF is recommended to guarantee 130ms operation in absence of auxiliary supply, ensuring full utilization of fault timer functions.

Ramp compensation resistor should be set to less than 10 kΩ (e.g., 5.3kΩ as per typical calculation), balancing loop stability and dynamic performance.

Skip/latch pin configuration allows for external adjustment of skip level using a resistor, typically set for a default 1.2V (40% peak current entry).

Proximity of decoupling and bypass capacitors on Vcc, feedback, and skip/latch pins is critical to noise immunity and robust operation.

The output drive is suitable for direct connection to medium/high-power MOSFETs, with fast rise/fall times supporting efficient switching.

Error management and protection features of NCP1271D65R2G

Protection mechanisms in the NCP1271D65R2G strengthen both functional reliability and safety:

Timer-based fault detection accurately isolates overloads/short circuits for >130ms and manages recovery with double hiccup cycles.

Feedback and Vcc undervoltage conditions are dynamically detected, with consistent fault handling and soft-start on recovery.

Latch and non-latch shutdown options provide flexible integration of overvoltage, overtemperature, and system-level protection, allowing both manual and automated fault responses.

Approaches to minimize noise using NCP1271D65R2G

The device’s design incorporates several methods to reduce EMI and acoustic noise—essential for regulatory compliance and user experience:

Internal frequency jittering disperses switching energy within ±7.5% of the center frequency on a 6ms ramp, mitigating peak EMI emissions.

Soft-Skip mode modulates skip pulse entry and exit with ramped peak current envelopes, preventing low-frequency transformer noise.

Use of decoupling capacitors and careful PCB placement further suppresses switching noise, maintaining circuit stability.

Physical and packaging details for NCP1271D65R2G

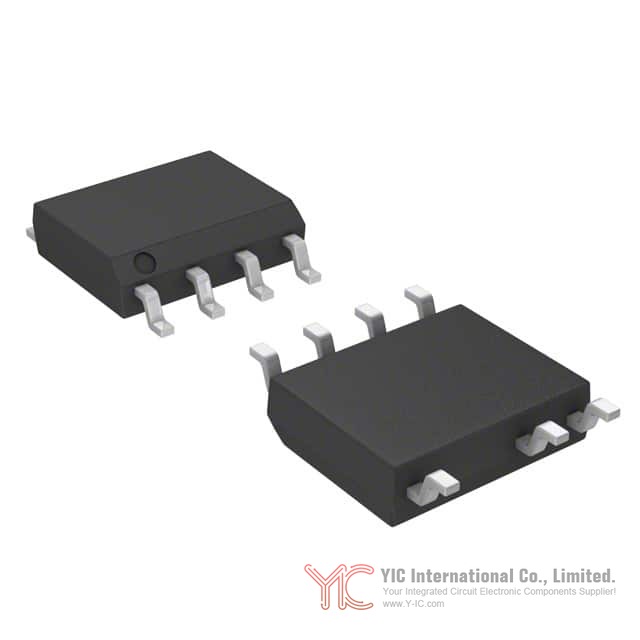

The NCP1271D65R2G is offered in a lead-free SOIC-7 package (case 751U), simplifying automated assembly and minimizing board space requirements. Standardized pin-outs support typical flyback topologies and facilitate migration from legacy designs. The robust mechanical design meets JEDEC standards for mounting and tolerances, ensuring compatibility with modern manufacturing processes.

Alternative or substitute models for NCP1271D65R2G

For alternative solutions, engineers may consider:

Other frequency options in the NCP1271 series (e.g., NCP1271D100R2G for 100kHz operation) for applications requiring different switching characteristics.

Previous-generation NCP120X series devices, noting the pin-to-pin compatibility for easy drop-in replacement where upgraded standby and fault protection are not required.

Competing fixed-frequency current-mode PWM controllers with integrated high-voltage startup and timer-based fault protection, so long as mechanical and electrical compatibility is verified.

Conclusion

The NCP1271D65R2G by onsemi delivers a proven blend of efficiency, robust protection, and flexible standby management for cost-sensitive flyback converter designs. Its suite of advanced features—including proprietary soft-skip control, high-voltage startup, timer-based fault detection, and EMI suppression—empowers engineers to meet stringent market and regulatory demands without sacrificing performance or reliability. Selection engineers and procurement specialists can rely on its compatibility, rich feature set, and sound documentation as a reference for next-generation power supply designs.
