onsemi NCP102SNT1G

Product Summary onsemi NCP102SNT1G Low Dropout Linear Regulator Controller

The onsemi NCP102SNT1G is a high-performance, low dropout (LDO) linear regulator controller specifically engineered for applications requiring ultra-low output voltages, high currents, and minimal dropout. Utilizing an external N-channel MOSFET, the NCP102SNT1G achieves flexibility in output current handling and thermal performance, making it highly adaptable to a wide range of embedded and computing applications. The device is targeted at design engineers and component procurement teams seeking robust, space-efficient LDO regulation for modern electronic systems, such as desktop motherboards, graphics cards, and sub-1 V point-of-load power supplies.

Highlighted Attributes of the NCP102SNT1G

The NCP102SNT1G offers several advanced features aimed at optimizing both electrical performance and ease of integration:

Wide input voltage range: Operates from 4.5 V to 13.5 V, accommodating typical system rail voltages.

Precision voltage reference: An integrated 0.8 V reference with ±2% accuracy (across variations of temperature and process) enables designers to realize ultra-low output voltages, critical for advanced logic and processor supplies.

Adjustable output: Output voltage is set via an external resistor divider, programmable down to 0.8 V.

Compatible with low-ESR output capacitors: Supports ceramic (MLCC) and POSCAP types for compact, stable power stages.

Dedicated enable input: Facilitates remote on/off control for system power management and sequencing.

Programmable soft-start: Minimizes inrush current and output overshoot during power-up by controlling the ramp rate of voltage, adjustable using an external capacitor.

High drive capability: An internal error amplifier supplies at least ±5 mA, ensuring fast transient response necessary in dynamic digital loads.

Integrated protection: Drive current is internally limited to protect both the controller and external MOSFET in fault conditions.

Compact SOT23/TSOP-6 package: Ideally suited for high-density PCB layouts with minimal real estate impact.

RoHS compliant, Pb-Free: Supports environmentally sustainable PCB assembly requirements.

Electrical Characteristics and Performance Metrics

For system engineers, understanding the electrical landscape of the NCP102SNT1G is vital for robust implementation. With a supply operating envelope from 4.5 V (min) to 13.5 V (max), the controller seamlessly integrates with standard supply rails found in modern electronics. The device’s voltage reference (0.8 V, ±2%) is tightly regulated across the junction temperature range (−40°C to +125°C), ensuring power integrity for sub-1 V digital cores and logic.

A minimum drive current of ±5 mA at the DRV pin is provided, capable of charging and discharging the gate of an external MOSFET for responsive load regulation. The DRV pin is internally clamped to 9.75 V (typ.), accommodating MOSFETs with Vgs ratings up to 12 V. The device’s enable threshold, soft-start charging characteristics, and undervoltage lockout all exhibit controlled, predictable behavior across temperature, as highlighted in the device’s typical characteristics curves.

Functional Design and Operating Mechanisms of the NCP102SNT1G

The NCP102SNT1G utilizes an advanced architecture centered around a high-bandwidth error amplifier and external MOSFET topology, granting significant flexibility:

Supply and Bypass: A bypass capacitor (≥0.1 μF recommended) on the VCC pin supports reliable operation during power-up and dynamic loads.

External MOSFET control: The error amplifier directly regulates the gate voltage of the external MOSFET, setting the output voltage by feedback from a resistor divider referenced to the integrated 0.8 V.

Feedback and Compensation: Frequency compensation is provided through an external capacitor between the DRV and FB pins, allowing designers to tailor loop stability and transient response.

Enable logic: The EN pin is internally pulled up; the device is enabled once EN exceeds 0.8 V (typ.), with a clamp at 9.5 V for safety if VCC is high.

Adjustable Soft-Start: Soft-start time is determined by an external capacitor on the SOFT-S pin, charged by a precise 4.5 μA current source, ensuring smooth ramp-up of the output.

Power Sequencing: By connecting the SOFT-S and EN pins of multiple controllers, precise sequencing can be achieved for multi-rail systems.

Fault conditions, such as MOSFET failure, are managed by internal current limiting on the drive output, safeguarding the system.

Application Insights Integrating the NCP102SNT1G into Power Circuits

The onsemi NCP102SNT1G lends itself to a spectrum of power delivery topologies:

Computing and Graphics: Ideal for feeding high-current, sub-1 V rails required by advanced CPUs, GPUs, and peripheral chipsets.

Embedded Power: Suits designers seeking efficient LDO regulation in dense embedded boards.

Power Sequencing: The enable and soft-start features support power-up sequencing in systems deploying multiple voltage domains and sensitive devices.

Key design considerations:

Select the external N-channel MOSFET based on required current, RDS(on), and Vgs(max) ratings compatible with the DRV characteristics.

Set the output voltage precisely via an external high-accuracy resistor divider.

Choose output capacitors suited to load transient and ESR requirements; MLCC and POSCAP types are supported.

Fine-tune soft-start to mitigate inrush current per application needs.

Use the device’s enable feature for remote shutdown or as part of a sequenced startup.

A comprehensive application note and design tool from onsemi (referenced as Application Note AND8303) guide engineers through practical implementation, simulation, and optimization.

Packaging Details and Board Integration Considerations for the NCP102SNT1G

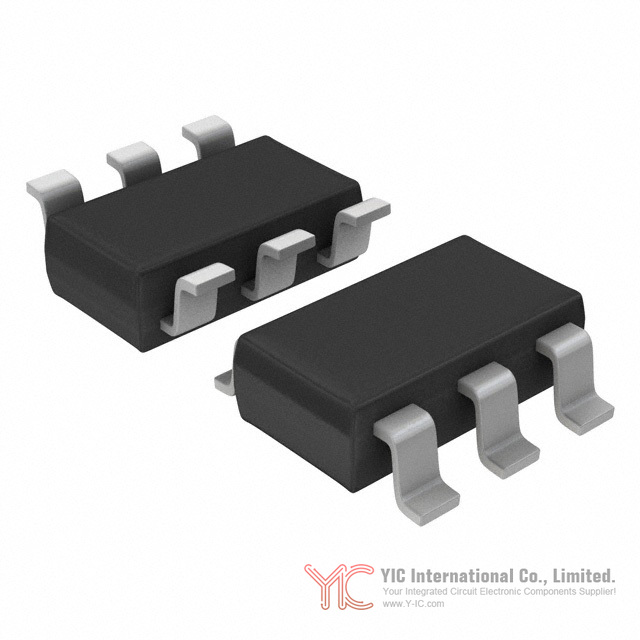

Mechanical and layout integration is streamlined with the NCP102SNT1G’s compact TSOP-6 (SOT23-6) package, with dimensions of 3.00 mm x 1.50 mm x 0.90 mm and a pin pitch of 0.95 mm. This form factor supports both automated assembly and minimal PCB area usage, essential for high-density system-level power designs.

Marking and pinout information are provided to ensure correct assembly and traceability. The package is RoHS-compliant and lead-free, addressing modern compliance standards.

Alternative or Equivalent Devices to the NCP102SNT1G

While the NCP102SNT1G provides a compelling balance of features and performance, engineers may occasionally require alternatives. In considering replacements:

Select devices with similar supply voltage ranges (4.5 V–13.5 V), reference voltage and accuracy (0.8 V, ±2%), and which support external MOSFET operation.

Evaluate footprint compatibility; equivalents in SOT23-6/TSOP-6 are generally preferred for drop-in replacement.

Confirm comparable drive capability and integrated features (soft-start, enable logic, and support for ceramic/POSCAP capacitors).

Manufacturers such as Texas Instruments, Analog Devices, and Maxim Integrated offer similar LDO controller solutions. However, confirmation of electrical and functional parity—especially across temperature and process variations—is recommended before approving any replacement.

Conclusion

The onsemi NCP102SNT1G stands out as a robust, highly adaptable low dropout linear regulator controller for engineering teams tasked with delivering high-current, ultra-low voltage power rails in tightly constrained designs. Its flexible architecture, precise reference, comprehensive feature set, and compact package address the key demands of modern computing and embedded platform designers. By enabling precise regulation, fast transient performance, and power sequencing capabilities, the NCP102SNT1G provides both performance and reliability for today’s advanced electronics. Evaluating this device in the context of system requirements and potential equivalents will ensure optimal power management solutions in next-generation designs.
