onsemi LM2575TV-ADJ

Introduction to the onsemi LM2575TV-ADJ Step-Down Converter IC

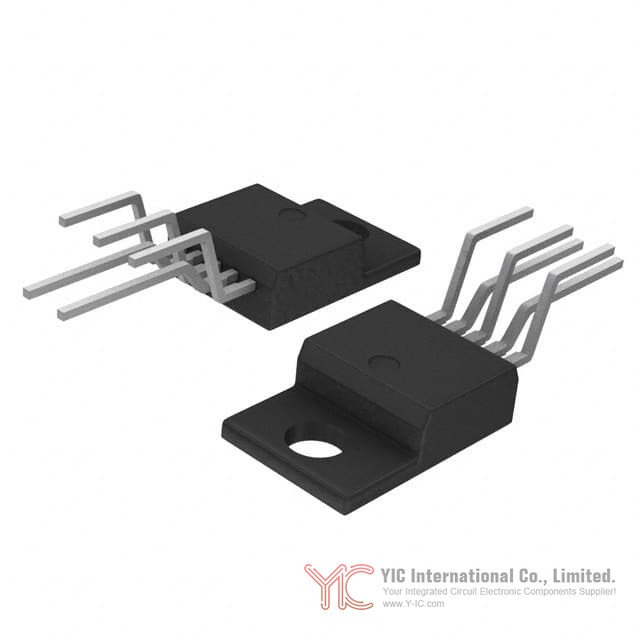

The LM2575TV-ADJ by onsemi belongs to the widely recognized LM2575 series of monolithic step-down (buck) switching regulators. This power IC, housed in a TO-220-5 package, provides engineers with a flexible solution for converting higher DC input voltages (4.75 V to 40 V) down to precisely regulated output levels – adjustable between 1.23 V and 37 V. With its ability to deliver up to 1 A output current, support wide thermal ranges (-40°C to +125°C), and deliver high efficiency over standard linear regulators, the LM2575TV-ADJ is tailored for use in robust, efficient power supply designs for industrial, automotive, and instrumentation applications.

Key Characteristics and Performance Benefits of the LM2575TV-ADJ

Engineered for simplicity and effective system integration, the LM2575TV-ADJ incorporates numerous advantageous features:

Adjustable output range (1.23 V to 37 V) for application flexibility.

Guaranteed output current up to 1.0 A, facilitating direct drive for moderate-power loads.

High efficiency as a switch-mode device, markedly reducing energy loss at higher input voltages compared to linear alternatives.

±4% maximum output voltage tolerance under specified conditions and ±10% oscillator frequency stability, ensuring consistent operation.

Internal thermal shutdown and cycle-by-cycle current limiting for comprehensive fault protection.

External ON/OFF control, allowing for remote logic shutdown with ultra-low standby current (typical 80 μA).

Ease of use with only four required external components and compatibility with standard inductor options from multiple manufacturers.

Electrical Specifications and Performance Evaluation of the LM2575TV-ADJ

A thorough understanding of the LM2575TV-ADJ’s rated parameters is imperative for accurate product selection and specification matching:

Input voltage range extends from 4.75 V (minimum for operation) up to 40 V.

For the adjustable version, feedback voltage precision is maintained at 1.23 V ± 2% across the recommended operating temperature.

Efficiency levels reach approximately 77% at typical load and voltage conditions (12 V in, 1 A out at 5 V output).

Fixed frequency internal oscillator at 52 kHz (±10%), which is reduced to ~18 kHz under short-circuit or overload conditions to minimize device dissipation.

Quiescent current at 25°C typically measures 5–9 mA, while standby current in shutdown mode drops to <80 μA.

Saturation voltage is typically 1 V at full rated output current (1 A), providing predictable dropout margins.

Output current limit protection supports safe operation with peak thresholds up to 3.2 A across temperature variations.

Use Cases and Practical Design Tips for the LM2575TV-ADJ

The LM2575TV-ADJ finds utility in a diverse array of engineering applications where efficient DC-DC conversion is necessary:

Switch-mode voltage regulation for embedded boards, sensors, and instrumentation with supply rails above 5 V.

On-card regulators for distributed power architectures, replacing linear regulators to improve power density and reduce heat.

Pre-regulation stages for linear regulators in energy-sensitive systems.

Battery chargers and power systems demanding adjustable output voltages and robust protection.

In practice, the adjustable output facilitates precision supply generation for mixed-voltage electronics, testing environments, and prototyping, while integrated protection supports long-term reliability. Selection of external components—such as the catch diode (preferably Schottky), input/output capacitors, and inductors—directly impacts ripple, efficiency, and overall transient response.

PCB Design Recommendations to Enhance LM2575TV-ADJ Efficiency

Switch-mode regulators are highly sensitive to printed circuit board (PCB) layout, as fast current switching can induce electromagnetic interference and unwanted transients. To ensure optimal performance of the LM2575TV-ADJ:

Minimize trace lengths and loop areas for high-current paths, particularly between input, output, and ground pins.

The area connected to the Output pin (Pin 2) should be compact to reduce coupling to nearby circuitry.

Place sensitive feedback components and programming resistors as close to the IC as possible to prevent noise pickup.

Implement single-point grounding or use ground planes to suppress EMI and avoid ground loops.

Prudent PCB layout not only maximizes regulator stability and output accuracy, but also helps meet EMI standards in regulated environments.

Pin Descriptions and System-Level Integration of the LM2575TV-ADJ

Comprehending each pin’s role aids seamless system integration and troubleshooting:

Pin 1 (Vin): Receives positive supply input; must be decoupled with a low-ESR capacitor (Cin) to handle switching transients.

Pin 2 (Output): Switch-mode regulated output; trace design must minimize area for EMI control.

Pin 3 (GND): Ground reference; ground system design directly affects transient behavior and noise immunity.

Pin 4 (Feedback): Reads output voltage and, in the adjustable version, links to external R1/R2 resistors to set output voltage.

Pin 5 (ON/OFF): Accepts logic-level shutdown signals; over 1.4 V disables output, while ground activates output.

These functions facilitate straightforward configuration of the LM2575TV-ADJ in digital, analog, and mixed-signal power environments.

Design Steps and Working Principles of Buck Conversion with the LM2575TV-ADJ

The LM2575TV-ADJ employs a classic buck topology. During “ON” periods, the main switch connects input voltage through the inductor to the load, causing inductor current to ramp up; during “OFF” periods, the catch diode conducts, and stored inductor energy supplies the load. The duty cycle, which determines output voltage, is managed by internal feedback and oscillator timing.

For adjustable output, resistor values (R1, R2) and the feedback reference voltage (1.23 V) allow engineers to set precise output rails. Inductor selection is critical to avoid saturation, with a focus on ratings for current and core material. Proper sizing of input/output capacitors and selection of a low-forward voltage diode (e.g., Schottky 1N5819) ensures minimal ripple and response to load transients.

Designers should refer to detailed application circuits and block diagrams for implementing the LM2575TV-ADJ, taking care to simulate transient response for mission-critical systems.

Alternative or Substitute Models Comparable to the LM2575TV-ADJ

As the LM2575TV-ADJ is listed as obsolete, engineers and procurement personnel must assess current industry alternatives:

onsemi LM2575 series (other fixed output versions if voltage flexibility is not needed).

onsemi NCV2575 (for automotive and AEC–Q100 qualified applications).

Texas Instruments’ LM2575 family (cross-compatible in most designs, similar function/ratings).

Newer synchronous buck regulators with higher efficiency and smaller packages, where system upgrade is feasible.

Assessment should weigh voltage range, maximum output current, package compatibility, and ease of migration regarding PCB footprint and electrical parameters.

Conclusion

: Selection Assessment for the onsemi LM2575TV-ADJ in Modern Power Systems

The LM2575TV-ADJ from onsemi remains a benchmark for reliable, simple, and efficient step-down regulation in DC-DC power architectures. Its integration-friendly design, well-documented protection suite, broad input range, and straightforward adjustability empower design engineers and buyers with effective solutions for legacy designs and controlled supply replacements. While the device is now obsolete, careful consideration of replacement models and attention to PCB layout guidelines allow continued leverage of established LM2575 architectures or migration to newer platforms, supporting robust power management across industrial and commercial sectors.
