Introduction to the LM2575T-ADJG by onsemi

The LM2575T-ADJG, designed and manufactured by onsemi, is a monolithic step-down (buck) switching regulator that delivers adjustable output voltage with a maximum output current of 1A. Housed in a standard 5-lead TO-220 (T suffix) package, this device is a core member of the LM2575 and NCV2575 families, known for enabling efficient, compact DC-DC step-down power designs. The adjustable output version, as denoted by the “ADJG” suffix, provides a versatile output voltage range from 1.23 V to 37 V, suited for a wide array of post-regulation and supply rail generation duties.

Main functions and advantages of the LM2575T-ADJG

The LM2575T-ADJG brings together a combination of key design features that simplify engineering work and enhance device performance:

Wide input voltage range from 4.75 V to 40 V, accommodating diverse supply sources, including batteries and industrial rails

Adjustable output voltage range of 1.23 V to 37 V (±4% regulation over line and load)

0 A guaranteed output current, suitable for moderate-power embedded and industrial applications

Typical conversion efficiency notably higher than traditional linear regulators, especially at higher input-output differentials

Minimum external components: operational requirements are satisfied with just four external parts (inductor, input/output capacitors, catch diode)

Fixed 52 kHz internal oscillator, simplifying EMI control and power density optimization

Built-in overcurrent and thermal shutdown protection to secure robust regulation under adverse conditions

TTL-compatible shutdown pin enabling a low-power standby state (80 μA typical standby current)

These features ensure high reliability, ease of design-in, and application flexibility, making the LM2575T-ADJG a go-to solution for many engineers when designing point-of-load power systems.

Electrical specs and performance metrics of the LM2575T-ADJG

From a technical perspective, the LM2575T-ADJG delivers strong performance within its specified operating range. Its input voltage window of 4.75 V to 40 V enables operation from both low- and high-voltage rails. Output regulation remains within ±4% over input line and output load variations, and oscillator frequency stability is maintained within ±10% (±2% from 0°C to +125°C).

The output current capability of 1A is fully guaranteed, and the device integrates a cycle-by-cycle current limit as well as thermal shutdown, providing a dual-layer of safety for downstream circuitry. Standby consumption is minimized via a TTL shutdown input, which is critical when the design’s standby power budget is tightly controlled. The internal fixed 52 kHz switching frequency ensures predictable EMI characteristics, and careful component selection supports low output ripple, as evidenced by performance curves and application notes.

Switching waveform integrity, transient response, dropout voltage, and line/load regulation data presented in typical curves establish the LM2575T-ADJG as a reliable performer in its class for both dynamically and statically loaded applications.

Use cases and recommended external parts selection for the LM2575T-ADJG

The LM2575T-ADJG is widely employed in applications such as on-card regulators, efficient pre-regulation for linear regulators, battery charger power stages, and systems requiring positive-to-negative (buck-boost) or negative step-up converters. Its architecture is ideally suited for easy integration into embedded, industrial control, and consumer power subsystems.

Successful deployment hinges on thoughtful selection of key external components:

Input Capacitor: A low-ESR aluminum or solid tantalum capacitor positioned close to the regulator input pin is recommended for suppressing input voltage spikes and ensuring stability. Capacitor selection should consider RMS current rating and ESR over temperature. At sub-zero environments (below -25°C), paralleling with a ceramic or tantalum type increases reliability.

Output Capacitor: For minimal ripple and solid loop stability, output capacitors must combine low ESR with sufficient bulk capacitance. Both upper and lower ESR limits matter: excessive ESR increases ripple, but ESR too low (e.g., below 0.05 Ω) may induce loop instability. For temperature extremes, parallel aluminum electrolytic and solid tantalum types are recommended.

Catch Diode: Fast-recovery or Schottky diodes positioned close to the device are crucial for efficiency and EMI minimization. The diode’s reverse recovery time and forward voltage drop should be optimized for the application’s output voltage.

Inductor: The inductor’s value and current rating should be selected according to the operating mode (continuous/discontinuous), with toroidal cores preferred for EMI-sensitive designs. Exceeding the inductor’s rated current risks core saturation, thermal stress, and device malfunction.

Inductor and diode selection guides, based on application requirements and industry availability, are provided in the device documentation to help engineers achieve optimal results without excessive iteration.

PCB layout guidelines and thermal management for the LM2575T-ADJG

Switching regulators like the LM2575T-ADJG demand careful PCB layout to minimize noise and ensure stable operation. Short, wide traces for high-current paths, compact ground loops, and close positioning of sensitive components (feedback resistors, input/output capacitors, and diodes) are highly recommended. Excessive lead or trace length can cause EMI, voltage overshoots, or compromise regulator stability.

Thermal management varies by mounting style. The TO-220 package enables natural convection and, in many scenarios, operation without a heatsink up to 50°C ambient at full output. When higher ambient temperatures or continuous maximum load are expected, the heatsink tab (connected to Pin 3) can be coupled to an external heatsink or enhanced PCB copper pour. For surface-mount applications, the D²PAK variant relies heavily on board copper for heat sinking, benefitting from increased pad areas or multilayer heatsink strategies.

A robust thermal design involves calculating device power dissipation, considering maximum expected ambient temperature, and ensuring the junction temperature remains below 110–125°C for reliability. Implementing these recommendations ensures longevity and consistent performance of LM2575T-ADJG-based solutions.

Advanced design applications utilizing the LM2575T-ADJG

The flexible topology of the LM2575T-ADJG enables its use beyond conventional positive buck regulation:

Inverting Buck-Boost Regulator: By reconfiguring ground references and the feedback loop, the LM2575T-ADJG delivers negative output voltages from positive supplies, suitable for analog/mixed-signal and sensor applications. Special care is needed in selecting larger output capacitors and ensuring start-up input current requirements are met.

Negative Boost Converter: It can be used to generate negative voltages above the negative input, convenient for bipolar supply rails. Load protection and startup behavior require additional consideration.

Undervoltage Lockout and Delayed Startup: Designs can leverage external resistor/capacitor networks to inhibit regulator startup until specific conditions are met, optimizing sequencing in power-sensitive or battery-powered systems.

Low-Ripple, High-Precision Supplies: Adding post-stage LC filters to the basic LM2575T-ADJG circuit achieves ultra-low output ripple, meeting sensitive analog or RF requirements.

Package details and physical dimensions of the LM2575T-ADJG

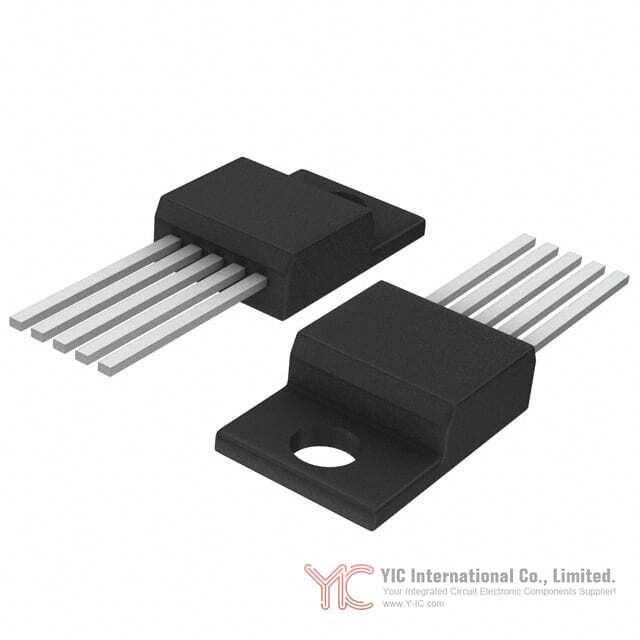

The LM2575T-ADJG is delivered in a 5-lead TO-220 (case styles 314B and 314D) for through-hole designs, and alternatively in a 5-lead D²PAK (case 936A) for surface-mount requirements. The exposed tab/heatsink is internally connected to Pin 3, simplifying thermal routing. Standard mechanical drawings, dimensions, and recommended PCB footprints are available in the official onsemi documentation.

Alternative and replacement options for the LM2575T-ADJG

Engineers evaluating the LM2575T-ADJG may consider alternative models in the same product family when output voltage requirements are fixed, such as the LM2575-3.3, LM2575-5.0, LM2575-12, or LM2575-15, all offering similar electrical performance parameters. For automotive or high-rel compliance, the NCV2575-series (AEC-Q100 qualified) is available. For higher output current needs, onsemi's LM2595 series may be evaluated as well. Additionally, other manufacturers’ functionally compatible parts (such as the National Semiconductor LM2575 series or TI equivalents) can serve as drop-in replacements depending on the component’s end-of-life status and sourcing considerations.

Conclusion

The LM2575T-ADJG from onsemi remains an important tool in the engineer’s power supply repertoire due to its blend of flexibility, reliability, and simplicity in step-down switching regulation. Proper selection of external components, disciplined PCB layout, and an understanding of advanced application techniques enable robust design and optimal performance. For product selection engineers and procurement professionals, the LM2575T-ADJG’s consistent performance, broad application suitability, and multiple available packages make it an intelligent choice for a wide variety of embedded and industrial power solutions.
