Xilinx Inc. XC2VP2-7FFG672C

Mfr. Part

XC2VP2-7FFG672C

Manufacturer

AMD Xilinx

Y-IC is a quality distributor for AMD Xilinx. We provide trusted sourcing, genuine parts, fast delivery, and responsive support to ensure you get the best products and services.

Detailed Description

Virtex-II Pro family FPGA for embedded and high-performance logic designs

Category: Integrated Circuits (ICs) | Classification: Embedded FPGAs (Field Programmable Gate Array)

204 user I/O, 672-ball FCBGA package, speed grade -7, commercial temp range

Surface-mount device, RoHS lead-free and fully compliant

Operating temperature (junction): 0°C to 85°C

Moisture Sensitivity Level: MSL 4 (72 hours floor life)

Manufacturer standard lead time: 6 weeks

Part status: Active

Available stock: 2610 units

Key Features

204 user I/O for flexible interfacing

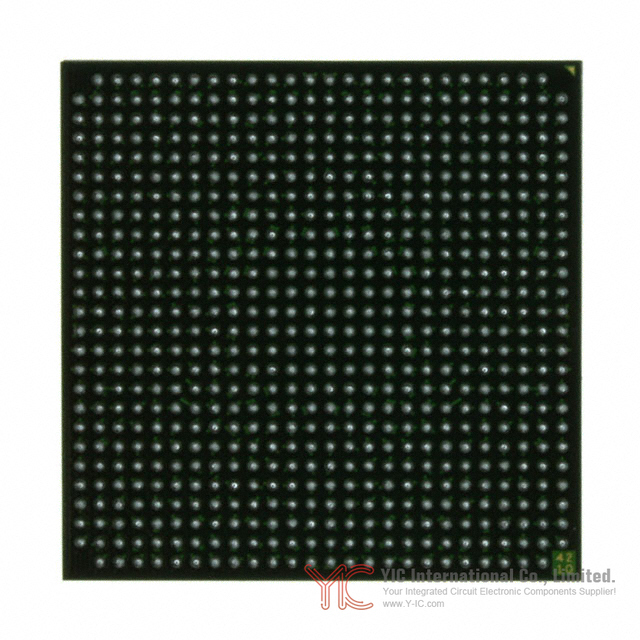

672-ball flip-chip BGA (FCBGA), body size 27 mm x 27 mm

Speed grade: -7 for faster timing performance

Core voltage range: 1.425 V to 1.575 V

Number of logic elements/cells: 352

Total RAM bits: 3168

Series: Virtex-II Pro

RoHS: Lead-free / RoHS Compliant

Mounting: Surface Mount

MSL 4 (72 Hours)

Typical FPGA capabilities: configurable logic blocks, block memory, clock management, banked I/O with many standards (e.g., LVTTL, LVCMOS, LVDS, SSTL, HSTL), JTAG support and flexible configuration options (see datasheet for details)

Key Advantages

Compact, high-density package fits space-constrained boards

Broad I/O standard support simplifies mixed-signal and multi-voltage designs

Fast -7 speed grade helps meet tight timing on critical paths

Lead-free FCBGA improves thermal and electrical performance versus wire-bond packages

Active lifecycle and 6-week lead time make planning easier

Backed by Y-IC quality distribution and support

Packaging

Type: FCBGA (Flip-Chip Ball Grid Array), 672 balls

Material: Flip-chip die on organic substrate; lead-free solder balls

Size: 27 mm x 27 mm body; low-profile BGA height

Pin configuration: 672-ball matrix with 204 user I/O; multiple I/O banks; dedicated configuration, power, and ground balls (see datasheet pinout)

Thermal characteristics: Junction temperature 0°C to 85°C; MSL 4 with 72-hour floor life; follow Pb-free reflow profile; use good thermal design (heat spreading via vias and copper planes)

Electrical properties: Core voltage 1.425 V to 1.575 V; I/O bank voltages depend on selected standards; ESD-sensitive—handle per JEDEC guidelines

Shipping: Tray packaging, standard pack quantity 40 units per tray; moisture barrier bag with desiccant and HIC

Lifecycle

Status: Active and in production

Not currently nearing discontinuation based on available information

Equivalent or alternative models (verify pin-compatibility, timing, and temperature grades in the datasheet before use):

- XC2VP2-6FFG672C (same device, lower speed grade, commercial temp)

- XC2VP2-7FFG672I (same device and speed grade, industrial temp range)

- XC2VP2-6FFG672I (lower speed grade, industrial temp)

- XC2VP2-7FG676C (similar device in a closely related BGA package option—check pinout)

- XC2VP4-7FFG672C (larger Virtex-II Pro device if more resources are required—check compatibility)

If you need drop-in equivalents, extended temperature, or other packages, contact our sales team via our website for the latest availability and guidance

Key Application Areas

Communications infrastructure: switching, routing, baseband and protocol processing

Embedded computing and control: soft processors, custom accelerators

Industrial automation: motion control, machine vision, PLC/IPC expansion

Test and measurement: high-speed capture, pattern generation, instrumentation interfaces

Consumer and multimedia: video processing, interfaces, and glue logic

Aerospace and defense prototyping: rapid algorithm iteration and interface bridging

Medical devices: imaging pipelines, data acquisition, and control

Research and education: FPGA-based prototyping and hardware acceleration

Datasheet

Our website hosts the most authoritative and up-to-date datasheet for XC2VP2-7FFG672C. Download it on this page to get complete specifications, pinouts, configuration options, timing, and design guidelines.
