LTM4650AEY#PBF DC/DC Converter Comprehensive Product Summary

The LTM4650AEY#PBF, manufactured by Analog Devices Inc., is a high-density, dual-output, non-isolated point-of-load (PoL) DC/DC converter module, belonging to the μModule® power products series. Designed for demanding power delivery in information technology equipment and other commercial electronic systems, the LTM4650AEY#PBF addresses the growing need for compact, efficient, and highly reliable power conversion solutions. Its wide operating input range (4.5V to 16V) and flexible dual-output configuration (0.6V to 5.5V for each channel, each up to 25A) make it a versatile solution for advanced circuit boards with stringent space and power requirements.

Main Specifications and Core Features of LTM4650AEY#PBF

At the core of the LTM4650AEY#PBF are its dual 25A, independently regulated outputs, supporting a combined output capability of up to 50A within a compact 16mm × 16mm × 5mm package. This non-isolated module offers an input voltage capability from 4.5V to 16V, making it suitable for standard intermediate bus voltages commonly found in telecom, networking, and high-performance computing environments. Both outputs are adjustable across a wide voltage range (0.6V to 5.5V), ensuring compatibility with modern digital chipsets, processors, FPGAs, and ASICs.

The module incorporates advanced protection and control features essential for robust operation: output overcurrent protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), and undervoltage lockout (UVLO). High conversion efficiency and integrated power management allow engineers to maximize board real estate without compromising thermal management or load capability. In terms of usability, the device offers a simple surface-mount design (144-BGA/BBGA package), and control functions such as active-high enable inputs, streamlining integration into automated assembly workflows.

LTM4650AEY#PBF Use Cases and Engineering Design Points

The LTM4650AEY#PBF targets high-performance board-level power designs, especially in information technology equipment (ITE) with significant power demands and space constraints. Its dual output channels enable simultaneous powering of multiple voltage domains, common in complex systems with processors, memory, and auxiliary ICs requiring independent rails. The ability to configure voltage and current quickly makes the LTM4650AEY#PBF an attractive building block for scalable solutions—especially useful in systems with evolving or modular architectures.

From an engineering perspective, designers should consider layout best practices for high-current modules to mitigate voltage drops, optimize thermal coupling to the PCB, and ensure solid input/output capacitor placements. The module’s integrated protection features minimize the risks associated with thermal events and load faults, simplifying compliance with safety and reliability targets in mission-critical applications.

LTM4650AEY#PBF Thermal Management and Environmental Capabilities

The LTM4650AEY#PBF is built to operate within a broad industrial temperature range of -40℃ to 125℃, supporting deployment in both controlled data centers and less predictable environments. With an emphasis on both efficiency and robust protection (including OCP, OTP, OVP, and UVLO), the module’s design meets the needs of long-lifetime and high-reliability installations.

Environmental compliance is reflected in its RoHS3 and REACH adherence, facilitating global deployment across various regulatory domains. Its moisture sensitivity rating of MSL 3 (allowing for 168 hours of floor life) further ensures resilience against humidity and handling during board assembly and storage processes.

LTM4650AEY#PBF Details on Packaging, Installation, and System Integration

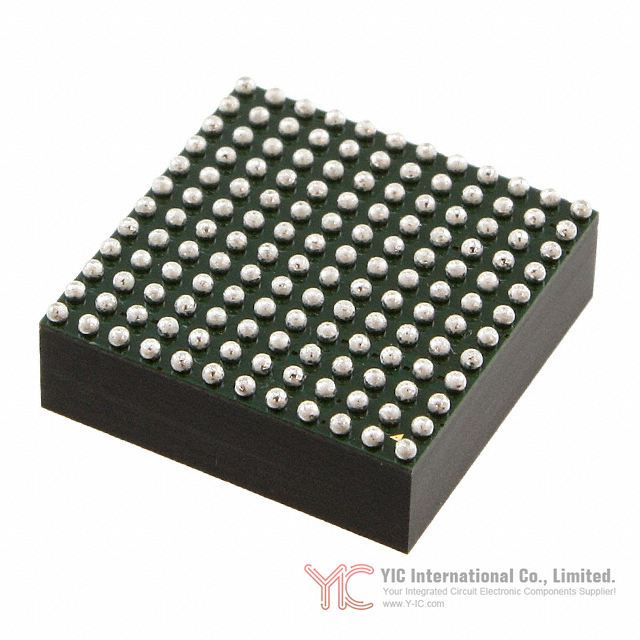

Housed in a 144-ball BGA (16x16) module with a low profile of only 5.0mm, the LTM4650AEY#PBF achieves exceptional current density, enabling power delivery directly at the point-of-load and eliminating the need for external FETs or inductors. Its standardized footprint allows for straightforward mechanical placement and direct connection to the PCB using conventional surface-mount techniques—an advantage in designs where vertical clearance and component accessibility are at a premium.

The compact, integrated form factor, combined with clear pinout and enable/disable control functionality, provides engineers with flexibility for complex power-up sequencing, fault management, and system-level diagnostics.

Possible Alternative or Replacement Options for LTM4650AEY#PBF

For engineers and procurement professionals exploring alternatives to the LTM4650AEY#PBF, close attention should be paid to electrical compatibility, packaging, and feature set—especially regarding maximum output current, efficiency, and protection mechanisms. The base product number LTM4650 encompasses possible derivatives, but cross-referencing with the specific system requirements is essential for optimal selection. Additionally, other members of Analog Devices’ μModule series or similar dual-output DC/DC converters from reputable manufacturers may serve as functional equivalents, provided they meet the required performance envelope and integration criteria.

Conclusion

: Evaluating LTM4650AEY#PBF in System-Level Designs
