Analog Devices Inc. ADM242ARZ

Summary of ADM242ARZ RS-232 Transceiver from Analog Devices Inc.

The ADM242ARZ, manufactured by Analog Devices Inc., is a high-speed, dual-channel RS-232 transceiver designed to meet the demanding requirements of industrial and computing systems. Packaged in an 18-lead SOIC, the ADM242ARZ offers two drivers and two receivers with integrated power management features, ensuring full-duplex communication in environments such as computers, peripherals, modems, and instruments.

Operating from a single 5 V power supply, the ADM242ARZ employs advanced CMOS process technology to deliver RS-232-compliant voltage levels through onboard charge pump DC-DC converters, supporting robust and reliable serial communication. Designed to operate within a wide industrial temperature range (–40°C to +85°C), it provides a highly integrated and space-efficient solution for both new designs and legacy system upgrades.

Main Characteristics and Operation Details of ADM242ARZ

The ADM242ARZ incorporates several features that set it apart from standard RS-232 transceivers:

Dual Channel (2 Drivers/2 Receivers): Supports full-duplex RS-232 data transmission and reception, ideal for point-to-point or shared communication buses.

High Speed: Enables transmission rates up to 200 kbps, meeting the requirements of high-throughput data links.

Simple Integration: Utilizes small external charge pump capacitors (0.1 μF), minimizing PCB real estate and simplifying power management.

Advanced Power Control: Integrates both enable (EN) and shutdown (SHDN) functions, offering flexible control over the transmitters and receivers. The shutdown mode reduces supply current to 0.1 μA, with receivers capable of continued operation for activity monitoring.

Wide RS-232 Input Range: Capable of handling input levels from –30 V to +30 V, ensuring robust performance in electrically noisy environments.

TTL/CMOS Compatibility: Directly interfaces with 5 V logic, simplifying system integration with microcontrollers, FPGAs, and ASICs.

Technical Performance Parameters of ADM242ARZ

To guide selection engineers, the key performance metrics for the ADM242ARZ include:

Output Voltage Swing: ±9 V (typical) at transmitter outputs, ensuring compliance with EIA-232-E and V.28 standards.

Data Rate: Supports up to 200 kbps, suitable for high-speed serial links.

Supply Voltage Range: 4.5 V to 5.5 V, tolerating standard digital power supplies.

Power Supply Current: 4–8 mA typical under no load; 0.1 μA in shutdown mode.

TTL Input Thresholds: 0.8 V (low), 2.0 V (high), compatible with standard logic levels.

RS-232 Input Resistance: 3–7 kΩ, providing robust input protection.

Output Short-Circuit Performance: ±10 mA (instantaneous) for transmitters; up to 85 mA for TTL/CMOS outputs, guaranteeing resilience to fault conditions.

ESD and Overvoltage Tolerance: Input pins rated for ±30 V, ensuring application reliability.

Block Diagram and Circuit Analysis of ADM242ARZ

The ADM242ARZ integrates several functional building blocks to achieve its performance and efficiency:

Charge Pump DC-DC Converter: Steps up the single 5 V supply to generate both +10 V and –10 V rails required by the RS-232 interface, using only four external 0.1 μF capacitors. This design reduces bill of materials compared to traditional transformer-based solutions.

Level Translators: Inverts and amplifies TTL/CMOS input levels to RS-232-compliant outputs. Output impedance and slew rate are controlled to assure signal integrity without external components.

Robust Receivers: Incorporate Schmitt-trigger action with hysteresis up to 0.5 V, enhancing noise immunity and ensuring valid output with slow or degraded input signals.

Control Logic: The SHDN (shutdown) pin disables transmitters (with receivers optionally active for wake-on-activity scenarios), reducing system-level power consumption. The EN (enable) input provides a means to place receiver outputs in high-impedance state for flexible bus sharing.

Guidelines for Using ADM242ARZ in Applications

The ADM242ARZ is well positioned for deployment in a variety of engineering scenarios:

Industrial Communication: The ±30 V input tolerance and wide operating temperature range make it ideal for factory automation, PLC interfaces, and remote sensor communications.

Computing and Peripherals: Its plug-in compatibility with legacy devices and TTL/CMOS interface ensures straightforward replacement in computers, printers, and peripheral connections.

Modems and Instruments: High-speed data rate and robust input protection meet the needs of modern measurement and communication equipment.

Power Management: The device’s low quiescent and shutdown current supports battery-powered and energy-sensitive systems, such as handheld data loggers or portable terminals.

System Wake-Up: With SHDN and EN control, the ADM242ARZ can help implement intelligent power cycling in applications requiring communication-triggered wake-up from sleep states.

Package Information, Environmental Ratings, and Regulatory Compliance for ADM242ARZ

For proper system-level qualification, procurement, and assembly, consider:

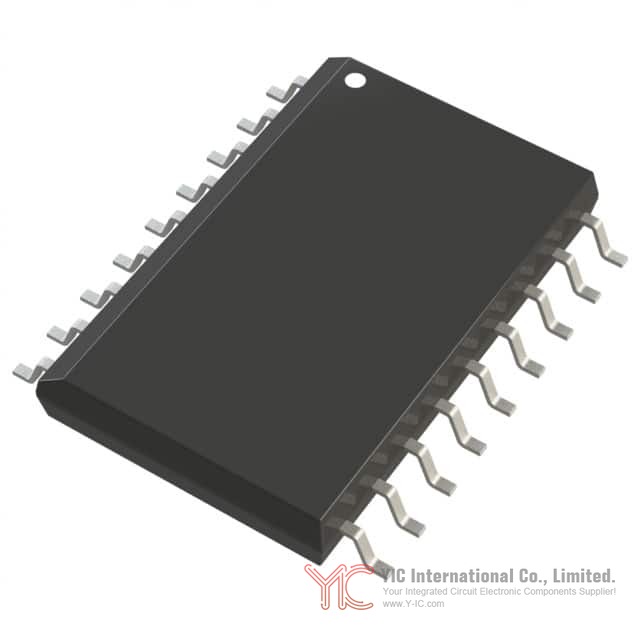

Package: 18-lead SOIC (7.5 mm width), wide-body, ideal for surface-mount manufacturing.

Moisture Sensitivity: Rated MSL 1 (Unlimited), compatible with standard RoHS-compliant reflow processes.

Environmental Compliance: RoHS3 and REACH unaffected, satisfying legislative requirements for hazardous substance content.

Absolute Maximum Ratings: Designed to withstand voltages up to 6 V on Vcc, input ranges down to –30 V, and up to 400 mW power dissipation (SOIC package), suitable for robust electronic design practices.

Possible Alternative or Substitute Devices for ADM242ARZ

When evaluating alternatives or planning for multi-sourcing, consider these closely related models:

Analog Devices ADM222: Pin-compatible with additional shutdown functionality where all transmit/receive channels are disabled during shutdown.

Analog Devices ADM232A: Offers similar performance in a slightly smaller package with 16 leads, suitable for space-constrained designs.

Maxim Integrated MAX242: Direct pin-compatibility with similar electrical characteristics; widely used as a cross-reference device in legacy and new applications.

Texas Instruments MAX232A: Industry-standard RS-232 transceiver with matching pinout and functional blocks; a common alternative for cost or sourcing considerations.

Matching parameters such as supply voltage, data rate, shutdown function, and package options across these families allows seamless drop-in replacement and future-proofing of designs.

Conclusion

The ADM242ARZ from Analog Devices Inc. delivers an efficient, feature-rich RS-232 interface solution for engineers and procurement specialists seeking reliability, high-speed data handling, and ease of integration in industrial, computing, and peripheral applications. With its advanced power-saving features, robust input tolerance, simple external component requirements, and established cross-compatibility with alternative transceivers, the ADM242ARZ stands out as a compelling choice for both new and legacy system upgrades. By thoroughly considering both its strengths and potential alternatives, design engineers can ensure resilient, long-term solutions for a wide spectrum of serial communication challenges.
