Analog Devices Inc. ADF7021BCPZ-RL

Product Summary ADF7021BCPZ-RL Analog Devices Narrowband ISM Transceiver

The ADF7021BCPZ-RL is a high-performance, low-power, narrow-band transceiver designed and manufactured by Analog Devices Inc., and is actively available for new designs. This device targets license-free Industrial, Scientific, and Medical (ISM) bands below 1 GHz and selected licensed bands, offering highly integrated functionality in a 48-WFQFN exposed pad package. Its versatility and rich feature set make it ideal for engineers designing or procuring integrated RF solutions for wireless data transfer, remote control, security systems, metering, private mobile radio, keyless entry, home automation, and process/building control applications.

Key Operational Characteristics of the ADF7021BCPZ-RL

At the heart of the ADF7021BCPZ-RL lies an integrated direct-conversion transceiver architecture with on-chip voltage-controlled oscillators (VCOs) and a fractional-N phase-locked loop (PLL). This architecture provides robust frequency agility, critical for frequency hopping spread spectrum (FHSS) communication protocols and regulatory compliance across global markets. The chip integrates programmable output power in 63 steps from –16 dBm to +13 dBm, automatic power amplifier ramp control to reduce spectral splatter, and on-chip support for both Gaussian and raised cosine transmit data filtering, which improves spectral efficiency for narrow-band wireless standards.

Further enhancing its design flexibility, the device features a fully automated frequency control (AFC) loop, a programmable intermediate frequency (IF) architecture, automatic sync word detection, digital received signal strength indication (RSSI), and an on-chip 7-bit analog-to-digital converter (ADC) with a temperature sensor. These elements enable streamlined calibration, embedded monitoring, and protocol adaptation, allowing engineers to optimize performance for specific application needs.

Frequency Range and Modulation Options of the ADF7021BCPZ-RL

The ADF7021BCPZ-RL supports operation in two primary RF bands: 80 MHz to 650 MHz and 862 MHz to 950 MHz. This dual-band solution is enabled via two independent VCOs—one using an external inductor and one internal. Both VCOs support operation at twice the fundamental frequency, a design choice that substantially reduces spurious emissions and frequency pulling, ensuring RF integrity in crowded wireless environments.

For modulation, the device provides support for an extensive suite, including 2FSK, 3FSK, 4FSK, Gaussian Minimum Shift Keying (GMSK), and FHSS. Its high modulation flexibility is bolstered by programmable data rates ranging from 0.05 kbps to 32.8 kbps and advanced spectral shaping through Gaussian or raised cosine data filtering. This enables engineers to adjust RF bandwidth and sensitivity to meet challenging communication range and interference immunity requirements—even allowing dynamic switching between modulation schemes to optimize throughput or range.

Transmission Capabilities and Specifications of the ADF7021BCPZ-RL

The transmission side of the ADF7021BCPZ-RL is precisely tunable. Output power is programmable in fine 0.3125 dB steps up to a maximum of +13 dBm, with stability across supply voltage (2.3–3.6 V) and temperature (–40°C to +85°C) ranges, maintaining output variation within ±1 dB. Its phase noise and harmonics suppression are industry-competitive, delivering up to 124 dBc/Hz out-of-band phase noise and harmonic levels down to –65 dBc, meeting regulatory demands for spectral purity. The device supports crystal reference frequencies from 3.625 MHz to 26 MHz, allowing flexible integration with system clocks.

Additionally, engineers benefit from programmable frequency deviation and bit error rate optimization, with occupied bandwidth management compliant for 12.5 kHz and 25 kHz channel spacing—essential for designs targeting ETSI EN 300 220, ARIB STD-T67, FCC Part 15, Part 90, and Part 95 standards.

Receiver Specifications and Sensitivity Metrics of the ADF7021BCPZ-RL

On the receiver side, the ADF7021BCPZ-RL uses a programmable, low-IF architecture to minimize external component count and suppress DC offsets and flicker noise. The receiver’s IF filter bandwidths are adjustable (12.5 kHz, 18.75 kHz, and 25 kHz), allowing trade-offs between selectivity and current consumption depending on use-case.

In terms of sensitivity, the ADF7021BCPZ-RL is optimized for demanding low data rate applications, achieving –130 dBm at 100 bps with 2FSK modulation and up to –113 dBm at 25 kbps (raised cosine 2FSK). Its linearity and selectivity parameters are tunable via register settings, affording designers the ability to optimize for either noise immunity or throughput. The receiver further incorporates a patent-pending on-chip image rejection calibration, which requires no external RF source, and supports high input third-order intercept points (IP3) for enhanced blocking performance, critical where strong interference is present.

Integration Options, Packaging Details, and Environmental Standards of ADF7021BCPZ-RL

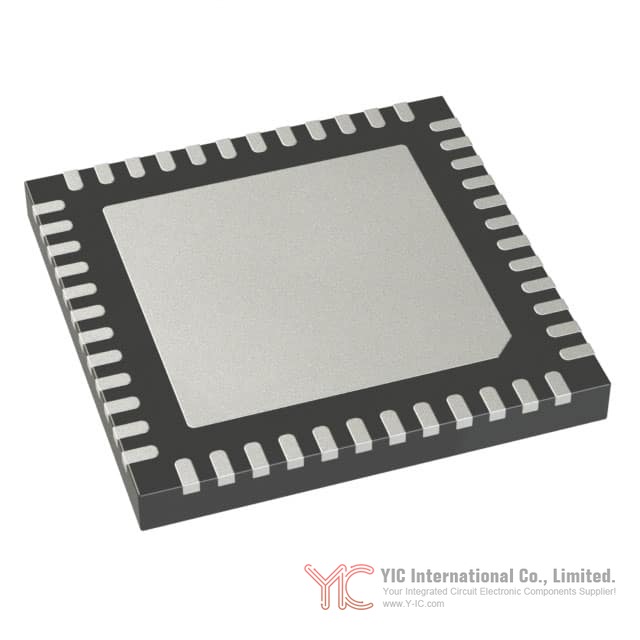

Integration is a hallmark of the ADF7021BCPZ-RL: engineers require only a minimal number of external passive components for full functionality, reducing cost and board space—key for volume production and space-constrained industrial and consumer IoT devices. The device is supplied in the compact 48-WFQFN exposed pad package, also available in CSP 48-LFCSP (7x7 mm), which supports efficient surface-mount assembly and optimal thermal dissipation.

Regarding environmental compliance, the ADF7021BCPZ-RL is RoHS3 compliant (rated for 168 hours exposure), REACH unaffected, and classified under ECCN EAR99, with a moisture sensitivity level (MSL) suitable for standard industry handling. Its broad operating temperature range (–40°C to +85°C) ensures robust performance in harsh environments.

Application Scenarios and Protocol Support for the ADF7021BCPZ-RL

The ADF7021BCPZ-RL's flexibility extends to protocol support, including ETSI EN 300 220 (Europe), ARIB STD-T67 (Japan), and FCC Part 15/90/95 (North America), with design features specifically tailored to wireless metering, automatic meter reading (AMR), remote or secure keyless entry, wireless medical telemetry services (WMTS), and more. The device can be configured via a simple serial interface (SPI or UART), making it compatible with major microcontroller or DSP architectures in embedded system designs.

Its capabilities for remote control, home and building automation, pagers, and process control demonstrate the device's adaptability; automatic frequency control and on-chip detection allow for robust synchronization and error detection in the presence of real-world operating conditions. Integration of battery voltage, analog sensor input, and temperature measurement via the onboard ADC further simplifies system design and reduces component costs.

Alternative and Substitute Models Comparable to ADF7021BCPZ-RL

For design teams comparing the ADF7021BCPZ-RL to alternatives, evaluation should focus on transceivers in the sub-GHz ISM range with similar narrow-band modulation, dual VCO architecture, programmable IF filtering, and support for advanced protocols. Some potential equivalents include the Analog Devices ADF7023 series (offering higher data rates and additional protocol support), and Semtech's SX1231 (well-known for its low-power ISM transceiver capabilities, though with some differences in modulation and integration options). Cross-comparison based on key specifications—RF frequency bands, power output adjustability, receiver sensitivity, and protocol support—is recommended to ensure an optimal fit for the intended application.

Conclusion

: Engineering Considerations for Implementing the ADF7021BCPZ-RL

The ADF7021BCPZ-RL by Analog Devices stands out as a multifaceted, integrated narrow-band transceiver for the sub-GHz ISM spectrum. Engineers should leverage its distinct dual-band, dual VCO capability, programmable power and sensitivity settings, and on-chip calibration mechanisms to target challenging wireless applications with strict regulatory or environmental requirements. For applications demanding robust spectral efficiency, flexibility in modulation/protocol selection, and simplified system integration, the ADF7021BCPZ-RL offers a competitive blend of performance and practical engineering value. Careful matching of device features with system requirements, comparison against equivalent models, and full consideration of package and environmental ratings are essential steps in the professional selection and deployment of this advanced wireless component.
