Overview of the AD9559BCPZ Clock and Frequency Converter

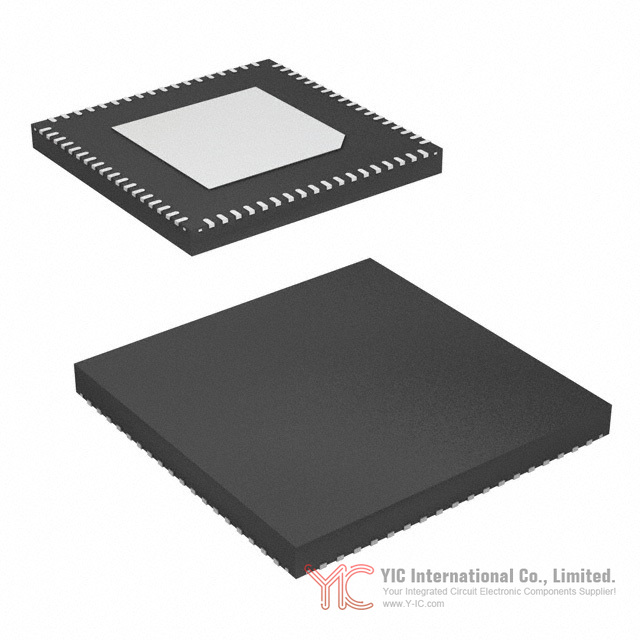

The Analog Devices AD9559BCPZ is a sophisticated multiservice line card adaptive clock translator. Housed in a compact 72-lead 10×10 mm LFCSP package, this device provides precision jitter cleanup and clock synchronization for critical telecommunication, data communication, and industrial applications. Designed to accept up to four reference inputs and deliver low phase noise, high-reliability outputs up to 1.25 GHz, the AD9559BCPZ is a core component in modern infrastructure enabling Ethernet, SONET/SDH, and telecom-grade Stratum 3 clocking.

Main Characteristics of the AD9559BCPZ

The AD9559BCPZ offers an extensive feature set to meet the demands of mission-critical timing applications:

Compliance with GR-1244 Stratum 3 holdover stability and Telcordia GR-253 SONET/SDH jitter specifications, supporting data rates up to OC-192.

Adaptive clocking allowing dynamic division for OTN mapping and demapping.

Four flexible input reference channels, each configurable for single-ended or differential signaling, with input frequency support from 2 kHz up to 1250 MHz.

Reference input prioritization and validation, smooth auto/manual reference switchover, and 2 ppm frequency monitoring.

Dual fully independent digital PLLs (DPLLs), each with high programmability, fractional/integer feedback dividers, bandwidth control, and loop filtering (down to 0.1 Hz).

Four output pairs configurable as LVDS, HSTL, or CMOS (single-ended or differential), supporting output frequencies from 262 kHz to 1250 MHz.

On-chip EEPROM for storing multiple power-up profiles and pin-based configuration for rapid deployment.

Industrial temperature operation from -40°C to +85°C.

Uses of the AD9559BCPZ in Contemporary Applications

The AD9559BCPZ directly addresses the synchronization and timing integrity needs of a wide range of applications:

Network synchronization, including synchronous Ethernet, SONET/SDH, and OTN line cards.

SONET/SDH up to OC-192 with forward error correction, Stratum 3 telecommunication node clocking, and phase transient control for carrier-grade reliability.

Cleaning, retiming, and translation of system clocks to reduce jitter and phase noise for data transmission and high-speed serial links.

Synchronous clocking for wireless base station controllers, cable infrastructure, and data communications equipment.

Functional Diagram and Internal Structure of the AD9559BCPZ

At the heart of the AD9559BCPZ is a dual-PLL engine. The device architecture features:

A system clock multiplier (SYSCLK) fed by either an external crystal, oscillator, or LVCMOS/LVDS/LVPECL source.

Four reference input channels, each with programmable thresholding, input logic selection, and frequency validation.

A 4×2 crosspoint matrix allowing any input reference to be routed to either PLL.

Two fully independent digital PLL (DPLL) cores, each performing jitter attenuation, frequency translation, and advanced holdover using programmable loop filters and tunable dividers.

Two analog output PLLs (APLLs), each providing further frequency multiplication and noise filtering, with direct connection to high-speed differential output drivers.

Flexible output dividers and drivers providing LVDS, HSTL, or CMOS logic levels.

System Timekeeping and Reference Input Handling in the AD9559BCPZ

The AD9559BCPZ system clock (SYSCLK) subsystem is highly adaptable. The SYSCLK input can source from:

A crystal resonator (10–50 MHz), such as 49.152 MHz for low spurious content.

LVCMOS, LVDS, or LVPECL inputs (10–400 MHz).

TCXO/OCXO (for precision holdover and narrow bandwidth operation).

A programmable PLL multiplier synthesizes the required internal clock (750–805 MHz), ensuring optimal signal quality for downstream digital processing. Dedicated logic monitors system clock stability, which is critical for the accuracy of frequency validation and overall device operation.

Reference input management includes programmable hysteresis, inner/outer tolerance windows per input, validation timers, and the ability to override reference validity through software. The device supports prioritized automatic reference switchover and phase build-out capability, ensuring seamless operation during reference changes without introducing phase transients at the output—a vital feature for telecom infrastructure.

Enhanced Digital and Analog PLL Design of the AD9559BCPZ

The dual-DPLL structure is central to the AD9559BCPZ’s synchronization performance:

Each DPLL features third-order digital filters (IIR implementation), programmable bandwidth and margin, fractional/integer feedback dividers, and tuning word history for precise holdover performance.

Adaptive clocking supports on-the-fly output frequency adjustments (within ±100 ppm) for OTN mapping applications without disturbing DPLL lock status.

Comprehensive lock detection using programmable phase/frequency error “bucket” algorithms enables precise state machine-driven switchover and system monitoring.

Each DPLL feeds its own APLL, which multiplies the clock up to 2.9–4.2 GHz with integrated noise filtering and fast lock acquisition.

The DPLL and APLL chain ensures high output spectral purity, robust jitter cleaning, and reliable reference tracking.

Output Clock Routing and Driver Options for AD9559BCPZ

The output architecture in the AD9559BCPZ is designed for flexibility and integration:

Each PLL has two output channels (four in total), each with independent 10-bit post dividers (divide-by-1 to divide-by-1024).

Outputs can be assigned as a single differential pair (LVDS/HSTL, including LVPECL compatibility via AC coupling) or two single-ended LVCMOS drivers (with 1.8 V or 3.3 V options).

Programmable logic-level voltage, drive strength, output enable/disable, and synchronized activation/deactivation to eliminate glitches or runt pulses.

Hardware synchronization supports synchronous updates across multiple outputs, crucial for deterministic clocking in high-availability designs.

Typical phase noise and jitter performance is compliant with stringent telecom and datacom standards.

Programming Methods, EEPROM, and Control Connections for AD9559BCPZ

Configuration of the AD9559BCPZ is achieved via:

Standard SPI or I²C serial ports, with support for multiple addressing and fast programming.

Buffered and live registers allow batch updates and predictable device state changes.

Real-time status and lock monitoring, as well as IRQ support for alarms, are accessible via hardware-configurable multifunction (M) pins.

Robust EEPROM integration supports automatic download of power-up profiles and multi-configuration support via externally-pin-selectable conditions, simplifying deployment in complex systems with varied operational modes.

Pin-based mode selection at power-up and software-based mode changes support rapid production-line configuration, redundancy management, and system recovery scenarios.

Design Challenges and Integration Tips for the AD9559BCPZ

Engineers integrating the AD9559BCPZ into real hardware should account for several practical factors:

Power supply decoupling, partitioning, and ferrite bead isolation recommendations for the 1.8 V and 3.3 V domains per Analog Devices guidance.

Thermal management through proper PCB exposure, ground plane design, and case temperature monitoring.

Input/output termination choices—recommendations are provided for DC/AC coupling, and interfacing with LVDS, HSTL, and LVPECL receivers.

System clock and reference input layout considerations ensure low additive noise and robust holdover performance.

Use of the AD9559 evaluation software and register setup files is strongly recommended for initial configuration and optimization.

Alternative or Substitute Devices for the AD9559BCPZ

When evaluating equivalent or replacement clock translators, consider both feature compatibility and system-level requirements:

Analog Devices AD9557: Single DPLL version of the AD9559—suitable for applications where only one clock channel is required, with a similar architecture and configuration interface.

Other competing devices in the same category should be assessed for number of PLLs, jitter performance, reference and output flexibility, holdover stability, and configuration features.

When considering replacements, pay special attention to logic-level compatibility, package footprint, output frequency range, and compliance with telecom/datacom standards (e.g., Stratum and SONET/SDH jitter performance).

Conclusion

The Analog Devices AD9559BCPZ is a premier adaptive clock/frequency translator that integrates high performance, configurability, and reliability suited for the demanding requirements of advanced telecommunication and network systems. Its comprehensive feature set—ranging from adaptive digital and analog PLLs, versatile input/output configuration, to robust programmability and holdover strategies—provides design engineers and procurement teams with a future-proof solution for multi-service synchronization challenges. By carefully considering system requirements and leveraging the AD9559BCPZ's flexibility, engineers can ensure robust timing architectures for current and next-generation infrastructure applications.
