Analog Devices Inc. AD6641BCPZ-500

AD6641BCPZ-500 Product Summary

The AD6641BCPZ-500 from Analog Devices Inc. represents a high-performance integrated solution for digital predistortion (DPD) observation receivers, offering an 11-bit, 200 MSPS intermediate frequency (IF) receiver within a 56-lead LFCSP package. Designed with a 250 MHz bandwidth and optimized for demanding RF environments, the AD6641BCPZ-500 supports a variety of communications, test, and signal processing applications. With its integration of a 12-bit 500 MSPS analog-to-digital converter (ADC), 16k × 12 FIFO memory, and multimode digital backend, the device simplifies the implementation of observation receivers in wireless and wired broadband communication systems, as well as in power amplifier linearization and test equipment.

Main Functional Capabilities of the AD6641BCPZ-500

At the core of the AD6641BCPZ-500 lies a high-performance ADC capable of sampling up to 500 MSPS with a typical effective number of bits (ENOB) of 10.5 at full bandwidth up to 250 MHz. This is complemented by a sophisticated digital backend that includes a highly flexible 16k × 12 FIFO memory block, enabling engineers to capture high-speed signal snapshots and decouple data retrieval from ADC operation. The device offers several digital output modes, including a 12-bit parallel CMOS interface, 6-bit double data rate (DDR) LVDS, and both SPORT and SPI serial options, each providing robust throughput for system integration.

The AD6641BCPZ-500 is engineered for simplified system design with integrated features such as an on-chip reference and sample-and-hold, programmable input voltage range (1.18 V to 1.6 V, typically 1.5 V), and a choice of 1.9 V or 3.3 V operation for serial interfaces. These design aspects provide flexibility for integration into diverse system architectures and simplify the power supply requirements.

Technical Performance Details of the AD6641BCPZ-500

For RF and high-speed signal processing applications, comprehensive performance specifications are critical. The AD6641BCPZ-500 achieves an SNR of 65.8 dBFS at inputs up to 250 MHz and 500 MSPS, with a spurious-free dynamic range (SFDR) of 80 dBc under similar conditions. Linearity is excellent, with a typical differential nonlinearity (DNL) of ±0.5 LSB and integral nonlinearity (INL) of ±0.6 LSB. The device’s analog front-end bandwidth reaches 1 GHz (full power), making it suitable for capturing wideband signals with high fidelity.

Low power operation is a hallmark, with total dissipation at just 695 mW at maximum performance. Designed to operate in industrial temperature ranges (-40°C to +85°C), the AD6641BCPZ-500 suits base stations, remote radio units, and demanding field-deployed test systems.

AD6641BCPZ-500 FIFO Functionality and Data Output Formats

A standout feature of the AD6641BCPZ-500 is its integrated FIFO (First-In, First-Out) memory buffer. The 16k × 12 FIFO supports both single-capture and continuous-capture modes, allowing engineers to capture slices of high-speed data—critical for DPD or event-driven signal analysis. Users can trigger the FIFO via SPI commands or external FILL± pins, while data readback can be decoupled from real-time ADC operation using the DUMP control.

The FIFO lets users optimize system resource use by capturing data at full speed, then reading out via lower data rate interfaces—the maximum output throughput is 1/8th of the input sample rate, corresponding to 62.5 MHz at 500 MSPS. System state feedback is facilitated through full and empty flags, available as both hardware signals and register bits.

AD6641BCPZ-500 Interface Choices and Integration with Systems

The AD6641BCPZ-500 provides several flexible data output interfaces. The 12-bit parallel CMOS and 6-bit DDR LVDS outputs provide high-throughput connectivity appropriate for direct connection to FPGAs or ASICs. The device’s LVDS outputs meet the ANSI-644 standard by default, with a programmable reduced-swing mode for power-sensitive designs. SPORT and SPI serial output options facilitate low-pin-count, microcontroller-based system architectures and remote configuration.

All data output interfaces are user-selectable via SPI configuration, and the ability to program interface voltage levels to either 1.9 V or 3.3 V ensures compatibility with a broad range of digital logic standards. A synchronized data clock output further simplifies timing closure in complex digital systems.

AD6641BCPZ-500 Analog Input Stage and Reference Circuitry

The analog front end of the AD6641BCPZ-500 consists of a fully differential buffer optimized for wideband RF applications. To maximize SNR and SINAD, it is recommended to use matched source impedances and differential drive—single-ended drive significantly degrades performance. Typical configurations employ RF transformers to provide the necessary differential input signals.

The integrated reference voltage circuitry controls the ADC span (1.5 V p-p), with the VREF pin providing the option for internal reference monitoring, external reference export, or importing a system reference. No additional decoupling is required for VREF due to internal compensation, simplifying board design and reducing source of performance drift. Adjustments to ADC input range, reference mode, and sampling characteristics are all managed through the SPI register map.

Power Requirements, Packaging, and Thermal Management of the AD6641BCPZ-500

Operating from a single 1.9 V supply for both analog and digital rails, along with selectable 1.9 V or 3.3 V options for interface logic, the AD6641BCPZ-500 streamlines power supply design in multichannel and high-density systems. Its low typical power consumption (695 mW at 500 MSPS) is advantageous for thermally constrained designs.

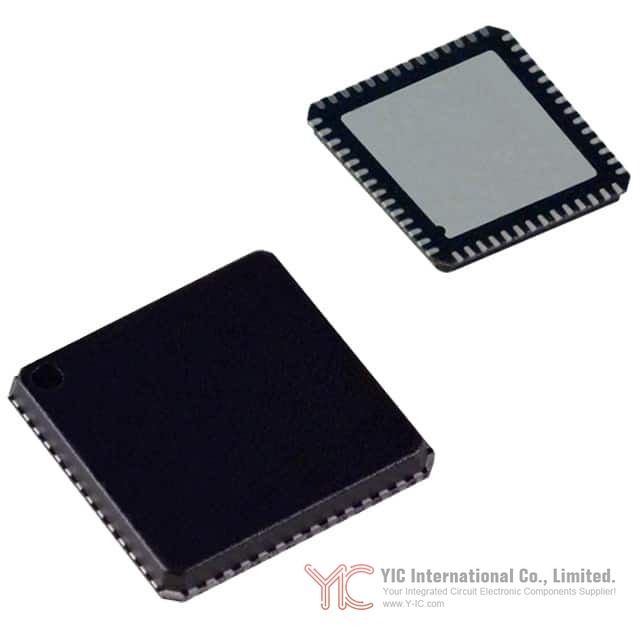

The device is housed in a compact 8 mm × 8 mm 56-lead LFCSP package with an exposed thermal pad. Proper PCB layout is essential—connecting the exposed pad to an analog ground plane is required for optimal heat dissipation and device reliability. The device is rated for industrial temperature operation and has specified thermal resistance to assist with thermal design and airflow considerations.

AD6641BCPZ-500 Pinout Overview and Major Pin Functions

The AD6641BCPZ-500 provides dedicated pins for all critical functional blocks, including differential analog inputs, digital data outputs, clock interfaces, and configuration controls. The LFCSP package assigns pins for the multiple digital I/O modes, allowing board designers to target the interface standard best suited for their application. Special care should be taken with unused pins, including several “do not connect” assignments and the required analog ground connection for the exposed pad.

The detailed functional mapping of each pin (documented in the product datasheet) supports quick design-in and electrical debugging, enabling robust hardware implementation in dense or mixed-signal environments.

Alternative or Replacement Devices for the AD6641BCPZ-500

Selecting the optimal RF ADC and observation receiver solution requires consideration of system bandwidth, interface preferences, and integration features. In addition to the AD6641BCPZ-500, engineers may consider:

AD6645 Series: Alternative high-speed ADCs from Analog Devices for applications prioritizing different resolution, sample rates, or package types.

TI ADC12D500RF: A 12-bit, 500 MSPS dual channel ADC, which provides similar high-speed performance but a different integration strategy.

Maxim Integrated MAX104/MAX106: 8-bit, 1 GSPS ADCs, which can serve high-speed observation paths with reduced resolution.

Engineers should compare device specifications carefully, considering analog bandwidth, supported digital interfaces, FIFO and capture modes, available reference architectures, and power consumption. The AD6641BCPZ-500 is particularly differentiated by its integrated FIFO memory and system-level flexibility, which may not be matched in competing modules.

Conclusion

The AD6641BCPZ-500 observation receiver from Analog Devices Inc. provides a comprehensive, high-performance solution for modern RF, DPD, and signal monitoring applications. With its integrated high-speed ADC, flexible FIFO memory, and robust digital interface options, it streamlines system development and provides superior performance for engineers tackling the challenges of broadband communications and advanced test systems. The AD6641BCPZ-500’s carefully balanced feature set and ease-of-use ensure it remains a compelling choice for product selection engineers and procurement professionals seeking a versatile and reliable observation receiver IC for their high-frequency designs.
