Product Summary SSM2375CBZ-REEL7 Mono Class-D Audio Amplifier

Analog Devices Inc. delivers a robust, high-efficiency solution for single-channel audio amplification with the SSM2375CBZ-REEL7. Designed specifically for portable electronic applications, this Class-D mono amplifier integrates advanced modulation technology to maximize performance, minimize footprint, and facilitate system-level integration. Housed in a 9-ball Wafer Level Chip Scale Package (WLCSP) measuring just 1.5 mm × 1.5 mm, the device is tailored for space-constrained applications where both high audio quality and power efficiency are critical.

Primary Advantages of the SSM2375CBZ-REEL7

The SSM2375CBZ-REEL7 boasts a range of features that underscore its suitability for modern mobile and portable systems:

Filterless operation: No output LC filter required, thanks to spread-spectrum Σ-Δ modulation.

High output power: Delivers up to 3 W continuous into a 3 Ω load and 1.4 W into 8 Ω at 5 V supply.

Impressive audio performance: Achieves >100 dB signal-to-noise ratio (SNR).

Exceptional power supply rejection: 80 dB PSRR at 217 Hz.

Flexible gain adjustment: Pin-selectable gain from 0 dB to 12 dB in 3 dB increments.

Fixed input impedance: 80 kΩ ensures consistent performance across platforms.

User-selectable ultralow EMI mode: Significantly reduces radiated emissions for EMI-sensitive applications.

Low power consumption: Shutdown current of just 20 nA conserves battery in portable devices.

Comprehensive protection: Integrated short-circuit and thermal shutdown with autorecovery.

Activation noise suppression: Integrated pop-and-click suppression for smooth transitions.

Technical Specifications and Performance Metrics of the SSM2375CBZ-REEL7

Engineers seeking quantifiable performance will find the SSM2375CBZ-REEL7 addresses key audio metrics:

Class-leading efficiency: 93% at 1.4 W into 8 Ω; 85% at 3 W into 3 Ω (5 V supply).

Total harmonic distortion plus noise (THD+N) remains below 1% at maximum output — suitable for demanding audio environments.

Wide supply range (2.5 V to 5.5 V) accommodates various battery-powered designs.

Performance curves, including THD+N vs. output power and frequency, are provided across gain settings and load conditions, illustrating the device’s adaptability to real-world design requirements.

Operational reliability: The SSM2375CBZ-REEL7 maintains stable function across an industrial temperature range of -40°C to +85°C.

SSM2375CBZ-REEL7 Usage Scenarios and Application Fields

The SSM2375CBZ-REEL7 is optimized for space-limited and power-sensitive applications, including:

Mobile phones

MP3 players

Portable media devices

Other battery-powered consumer electronics

Its minimal external component count and filterless topology not only streamline system design but also reduce system BOM and assembly complexity.

Operating Principle SSM2375CBZ-REEL7 Modulation Methods

Central to the SSM2375CBZ-REEL7’s performance is its advanced Σ-Δ (sigma-delta) modulation scheme. Unlike traditional pulse-width modulation (PWM) Class-D amplifiers, it leverages three-level output modulation. This approach brings several technical advantages:

No sharp spectral peaks in the AM band, minimizing interference.

Spread-spectrum pulse density modulation (PDM) further disperses switching noise and eliminates the need for oscillator synchronization in multi-amplifier designs.

Lower electromagnetic interference (EMI) emissions are inherent, supporting compliance with FCC Class B radiated emission standards — even with unshielded cables up to 50 cm.

Design Guidelines Gain Configuration, EMI Mitigation, and Noise Suppression for SSM2375CBZ-REEL7

The SSM2375CBZ-REEL7’s flexible gain selection enables precise audio control, important for systems mixing multiple amplifiers. Gain is easily pin-programmed to 0, 3, 6, 9, or 12 dB; gain matching is superior compared to external resistor schemes.

For EMI-critical designs, the device provides an ultralow EMI emissions mode via the modulation select pin. In practical terms, this mode allows the SSM2375CBZ-REEL7 to pass stringent emission standards without additional external filtering.

Pop-and-click suppression circuitry ensures virtually noise-free operation during power-up or shutdown, a critical factor in consumer audio experiences and low-sensitivity speaker applications.

PCB Design and System Integration Recommendations for SSM2375CBZ-REEL7

Implementing the SSM2375CBZ-REEL7 requires disciplined PCB layout:

Use short, wide traces (minimum 200 mil per inch) and 1–2 oz copper to minimize trace resistance and inductance.

Avoid ground loops and maximize ground plane area to minimize common-mode interference and support audio fidelity.

Separate analog and high-frequency digital paths to reduce crosstalk and noise coupling.

Opt for multilayer PCBs where possible to substantially improve EMI immunity and reduce emissions.

Attention to these practices will maximize the efficiency and audio quality benefits inherent to the SSM2375CBZ-REEL7 architecture.

SSM2375CBZ-REEL7 Component Choices Input Capacitor and Power Supply Decoupling

The SSM2375CBZ-REEL7 simplifies input capacitor decisions: none are required if the input signal is biased between 1.0 V and (VDD – 1.0 V). Where biasing falls outside this range, or high-pass filtering is needed, select capacitors to set the desired corner frequency via:

fC = 1/(2π × RIN × CIN)

Absence of input capacitors can degrade output offset and PSRR — so make application-specific choices.

For power supply decoupling, a low ESR/ESL 4.7 μF capacitor bypasses low-frequency noise, while a 0.1 μF ceramic placed close to the VDD pin filters high-frequency transients. These choices are required to maintain low THD and maximize PSRR.

Mechanical and Environmental Details of the SSM2375CBZ-REEL7

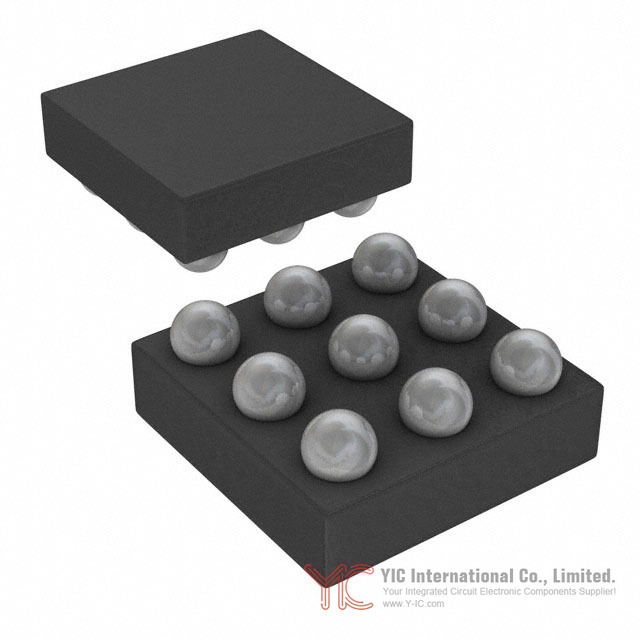

The SSM2375CBZ-REEL7 comes in a halide-free, RoHS-compliant 9-ball WLCSP (CB-9-2), measuring 1.5 mm × 1.5 mm — ideal for miniaturized designs. The device supports surface mount assembly and is specified across the industrial temperature range (-40°C to +85°C).

Engineers should observe device thermal limitations: continuous operation above 3 W output power is possible only with adequate thermal management.

ESD (Electrostatic Discharge) sensitivity is mitigated by proprietary protection circuitry, though industry-standard handling protocols must always be employed.

Alternative or Replacement Options for the SSM2375CBZ-REEL7

When considering design alternatives or long-term supply assurance, engineers may assess the following approaches:

Review the Analog Devices portfolio for other filterless, high-efficiency Class-D mono amplifiers offered in compact packages, matching the key performance metrics of the SSM2375CBZ-REEL7.

Evaluate functional compatibility and pinout equivalency with similar products from other reputable manufacturers, focusing on features such as filterless architecture, adjustable gain, efficiency, output power, and low EMI profiles.

Decisions should be validated through direct datasheet comparison and, where possible, bench testing to ensure seamless system integration and performance parity.

Conclusion

: SSM2375CBZ-REEL7 Value Proposition for Engineers

The SSM2375CBZ-REEL7 stands out as an advanced solution for designers of portable audio equipment requiring high efficiency, superior audio quality, minimized EMI, and compact form factor. With flexible gain control, filterless architecture, robust protection features, and straightforward integration, the SSM2375CBZ-REEL7 supports cost-effective development of next-generation mobile and consumer electronics. Careful adherence to layout and system design guidelines will ensure maximum performance and reliability, making it a compelling choice for both engineering and procurement teams navigating the competitive audio IC landscape.
