Analog Devices Inc. ADSP-21261SKBCZ150

Product Introduction

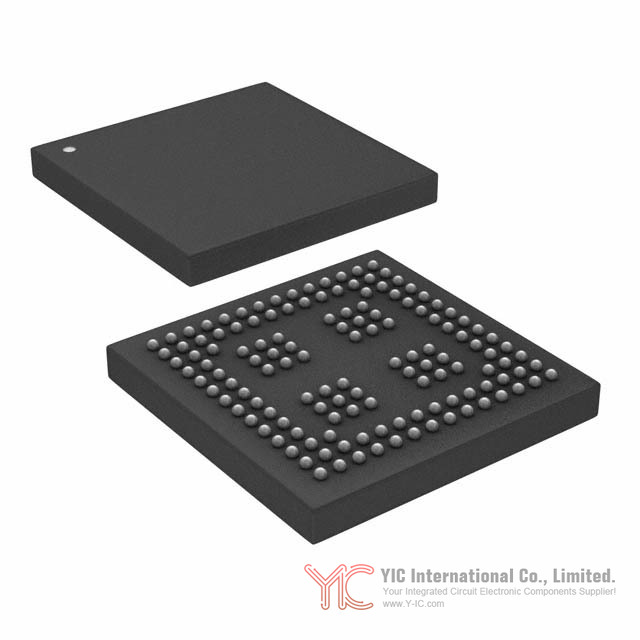

The ADSP-21261SKBCZ150 from Analog Devices Inc. is a member of the SHARC® family of high-performance digital signal processors (DSPs), designed specifically for demanding audio, communications, and embedded processing tasks. Featuring a 32-bit/40-bit floating-point computational architecture, this device delivers advanced signal processing capabilities critical in professional audio equipment, digital communications infrastructure, and embedded systems requiring robust computation and interfacing. Housed in a 136-ball CSPBGA package, ADSP-21261SKBCZ150 operates at a core clock rate of 150 MHz and offers an engineered balance of high data throughput, flexible interfacing, and system-level integration.

Key device highlights include a dual-ported internal memory system, a wide selection of integrated peripheral ports, support for industry-leading audio algorithms, and comprehensive development tool compatibility. Environmental robustness is ensured via RoHS3 compliance and support for a commercial temperature range (0°C to 70°C).

ADSP-21261SKBCZ150 Main Processor Architecture

Central to the ADSP-21261SKBCZ150's appeal is its Super Harvard Architecture, endowed with a SIMD (single-instruction, multiple-data) computational engine. This approach utilizes two processing elements—PEX and PEY—each equipped with an ALU, multiplier, shifter, and dedicated data register file. SIMD operation allows the processor to execute the same instruction in parallel on two data sets, providing substantial speed-up for computation-intensive operations such as audio filtering, FFTs, and matrix mathematics.

Complementing this structure are two independent data address generators (DAG1 and DAG2), each capable of supporting up to 16 hardware circular buffers. These DAGs automate pointer wraparound, optimize performance, and facilitate low-overhead management of delay lines—a necessity in advanced audio and communications filtering.

For instruction execution efficiency, the processor can fetch an instruction and up to four operands in a single cycle, leveraging an enhanced Harvard architecture and an intelligent instruction cache. The cache selectively retains instructions with memory fetch conflicts, enabling sustained throughput in tight software loops and signal processing kernels. Comprehensive register files within each processing element further streamline data movement and intermediate storage, powering high-rate processing with minimal bottlenecks.

ADSP-21261SKBCZ150 Integrated Memory and I/O Capabilities

ADSP-21261SKBCZ150 offers a sophisticated dual-ported internal memory subsystem, comprising 1M bit SRAM and 3M bit mask-programmable ROM. Each memory block is dual-ported to enable simultaneous, independent access by both the processor core and I/O subsystems without cycle contention. Designers can configure memory blocks for various word sizes—16, 32, 40, 48, or 64 bits—tailoring storage for code, data, and algorithm coefficients as needed.

DMA controller integration is a cornerstone of the I/O strategy, providing up to 18 independent DMA channels for zero-overhead, processor-transparent data transfers. This capability supports high-bandwidth movement between internal memory and peripherals such as serial ports, SPI interface, input data port, parallel data acquisition port (PDAP), or the general parallel port. DMA completion interrupts and automatic chaining are supported for complex data movement scenarios.

The parallel port offers versatile integration with external SRAM and peripherals, supporting both 8-bit and 16-bit devices and data rates up to one-third the core clock (max 50MB/s at 150 MHz). Core-to-memory access is further facilitated via parallel port registers—critical for high-performance embedded systems or audio mixing consoles where external memory bandwidth is a limiting factor.

ADSP-21261SKBCZ150 Audio Processing and Digital Application Connectivity

A distinguishing feature of the ADSP-21261SKBCZ150 is its optimization for premium audio processing tasks. The device provides high bandwidth I/O, including six serial ports and a sophisticated Digital Application Interface (DAI). The DAI incorporates two precision clock generators, an input data port configurable for multiple channel formats, a parallel data acquisition channel, and three programmable timers—all addressable via a flexible signal routing unit (SRU).

While the ADSP-21261SKBCZ150 does not include preprogrammed audio decoders within ROM, it remains code compatible with other SHARC models—enabling support for a wide range of decoding algorithms when programmed accordingly. The processor's computational power facilitates real-time implementation of multichannel surround decoders, audio postprocessing, and complex digital mixing functions required in professional audio and broadcast environments.

ADSP-21261SKBCZ150 Peripheral Connectivity and Communication Interfaces

The versatile connectivity options on ADSP-21261SKBCZ150 are central to its system integration capability. Up to four full-duplex serial ports provide inexpensive and robust connections to ADCs, DACs, codecs, and other mixed-signal devices via standard protocols including I2S, TDM, left-justified sample pair, and DSP serial mode.

A full-featured SPI-compatible port enables high-speed serial communication in master or slave mode, programmable up to 37.5 MHz (at 150 MHz core clock). This supports seamless integration with a broad spectrum of SPI peripherals, from memory devices to control subsystems.

JTAG support allows comprehensive system debugging, code downloading, and real-time emulation without affecting target system operation—critical for rapid development and troubleshooting in embedded installations.

Timers are flexible and powerful, including a core timer for periodic interrupts and three general-purpose timers featuring pulse waveform generation, pulse width capture, and event watchdog modes. These support robust, programmable timebase and control strategies in complex system designs.

Power Requirements and Environmental Specifications for ADSP-21261SKBCZ150

ADSP-21261SKBCZ150 is engineered for straightforward integration into commercial electronic systems. It operates over a regulated temperature range (0°C to 70°C), making it suitable for studio and rack-mounted equipment as well as critical embedded installations.

The device mandates separate supplies for internal circuitry (1.2V) and I/O/external functions (3.3V). A dedicated analog supply pin (AvDD) supports on-chip PLL clock generation, and attention to PCB filter design (using ferrite beads and appropriate bypass capacitors) is essential for ensuring clock stability and minimizing digital-to-analog noise coupling.

Environmental compliance is ensured through RoHS3 certification and support for standard moisture sensitivity procedures (MSL 3), positioning the product well for mainstream industrial and audio applications.

ADSP-21261SKBCZ150 Development Resources and Evaluation Tools

Designers choosing the ADSP-21261SKBCZ150 benefit from an extensive suite of development and evaluation tools provided by Analog Devices. This includes two principal integrated development environments: CrossCore Embedded Studio (Eclipse-based, supporting future and multicore processors) and VisualDSP++ (supporting legacy devices). Both offer C/C++ editing, code generation, debugging, and support for real-time kernel integration and advanced networking stacks.

Evaluation hardware options—such as EZ-KIT Lite boards and EZ-Extender daughter cards—provide practical routes for prototyping, demonstrating key device features and peripheral connectivity. USB-enabled boards support ICE emulation, enabling rapid testing, debugging, and in-circuit flash programming.

Software add-ins, board support packages (BSPs), and algorithmic module libraries significantly shorten development time and facilitate optimized implementations for specific market segments or application requirements.

Alternative or Substitute Options for ADSP-21261SKBCZ150

In the context of product lifecycle, system scaling, or supply chain stability, it is essential to identify alternative SHARC DSP models providing comparable features. Within the same SHARC family, the following devices offer similar performance, potentially suiting upgrades or replacements:

ADSP-21262: Offers 2M bit SRAM and 4M bit ROM, expanded DMA channel count (22), and additional SPORTs (6 serial ports), suitable for designs requiring higher on-chip storage or more serial connectivity.

ADSP-21266: Features identical memory as the ADSP-21262, with preprogrammed multichannel audio decoders in ROM, advantageous for direct surround sound processing applications.

ADSP-21160 and ADSP-21161: Earlier SHARC models providing source code compatibility, allowing software migration with similar SIMD capabilities.

Selection among these alternatives should consider the required code/data footprint, peripheral needs, audio decoding requirements, and package compatibility.

Conclusion

The ADSP-21261SKBCZ150 DSP delivers advanced signal processing performance, comprehensive internal memory, and flexible peripheral integration, affirming its position as a proven solution for audio and embedded engineering sectors. Its robust SIMD architecture, multifaceted I/O subsystem, and development ecosystem support rapid design and reliable deployment in applications ranging from audio postprocessors to communication controllers. By considering the device’s architecture, interfacing options, power and environmental requirements, and available development resources, engineers and procurement professionals can confidently evaluate and integrate ADSP-21261SKBCZ150 or its family derivatives to achieve optimal system results.
