YAGEO RC0805FR-0768KL

Summary of the RC0805FR-0768KL YAGEO surface-mount resistor

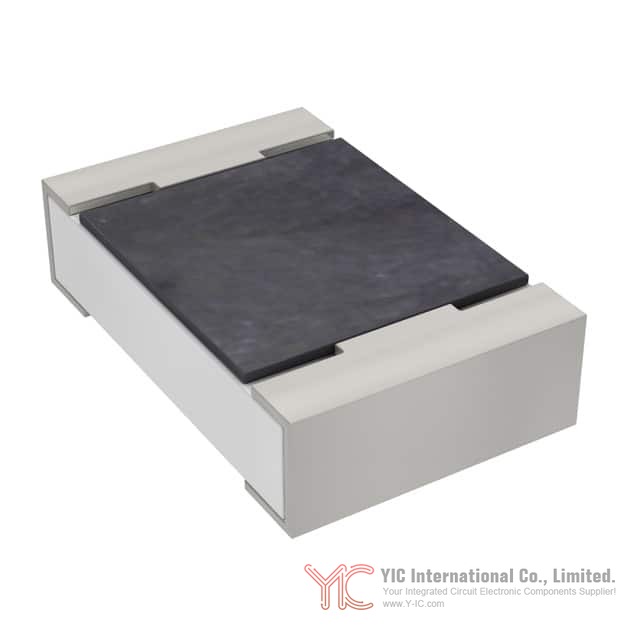

The RC0805FR-0768KL is a surface-mount chip resistor from YAGEO, designed for general-purpose use in electronic applications. Featuring a resistance value of 68 kΩ with a ±1% tolerance and a power rating of 1/8W (0.125W), it conforms to the 0805 package size under the 2012 Metric standard. The resistor’s robust design ensures moisture resistance, leveraging thick film technology for dependable performance across a wide range of circuit architectures. Its primary utility lies in precise signal conditioning, voltage division, and current limiting tasks where compact footprint and reliable operation are essential criteria.

Main attributes and environmental standards of the RC0805FR-0768KL YAGEO chip resistor

The RC0805FR-0768KL YAGEO chip resistor distinguishes itself with several features that support modern electronic manufacturing practices. Notably, it utilizes a halogen-free epoxy and lead-free terminations, making it compliant with RoHS directives. The use of none forbidden-materials in its construction reduces hazardous waste and supports green production initiatives. Additionally, its Moisture Sensitivity Level (MSL I) ensures high component and equipment reliability, even in challenging manufacturing or operational environments. Engineers can leverage its space-saving design to optimize PCB layouts without compromising on sustainability or long-term reliability.

Practical uses and applications for the RC0805FR-0768KL YAGEO chip resistor

The RC0805FR-0768KL YAGEO chip resistor is suitable for a diverse set of general-purpose applications, ranging from consumer electronics to industrial controls. It is commonly found in signal processing, analog-to-digital conversion circuits, feedback networks, and power management systems. Design engineers often select this resistor where stable performance over temperature and high reliability are needed. Its precision tolerance makes it particularly useful in circuits requiring tight matching and controlled loading, such as sensor interfaces, audio amplifiers, and microcontroller I/O networks.

Structural design and identification guidelines for the RC0805FR-0768KL YAGEO chip resistor

Manufactured on a high-grade ceramic substrate, the RC0805FR-0768KL YAGEO resistor utilizes internal metal electrodes to connect the thick film resistive element. The core resistive layer is constructed using noble metal embedded in glass, shielded by an additional glass layer for enhanced environmental protection. The resistor is laser trimmed to achieve exact resistance, followed by application of a protective epoxy coat. External terminations use matte tin over a nickel barrier for optimal solderability and corrosion resistance. For identification and assembly accuracy, the device conforms to the marking standards typical of RC_L series resistors, with four-digit labeling format representing resistance values for 1% tolerance SKUs.

Electrical specifications and operating conditions of the RC0805FR-0768KL YAGEO chip resistor

The RC0805FR-0768KL YAGEO chip resistor supports an operational ambient temperature range from -55°C to +155°C, suitable for demanding and varied environments. Rated at 1/8W (0.125W), its maximum allowable DC or AC (rms) working voltage is governed by the formula V = √(P × R), where “P” is rated power and “R” is resistance value, or by the maximum working voltage as specified in YAGEO documentation, whichever is less. Engineers should account for derating above 70°C ambient to preserve functionality and lifespan. These parameters mean the RC0805FR-0768KL YAGEO device is a prime choice where thermal stability and electrical precision are mandatory.

Installation, soldering procedures, and packaging information for the RC0805FR-0768KL YAGEO chip resistor

Successful implementation of the RC0805FR-0768KL YAGEO chip resistor depends on proper mounting and soldering practices. Recommended PCB footprints and soldering profiles can be found in YAGEO’s dedicated “Chip resistors mounting” data sheet. The device supports standard tape and reel packaging formats, optimized for automated surface-mount assembly operations and high-volume production lines. Complete specification for tape, reel, and related packaging dimensions are detailed in YAGEO’s “Chip resistors packing” documentation, ensuring smooth integration into pick-and-place workflows.

Quality control measures and test procedures for the RC0805FR-0768KL YAGEO chip resistor

To guarantee consistent performance, the RC0805FR-0768KL YAGEO chip resistor adheres to stringent quality assurance protocols. Testing procedures encompass visual, dimensional, and electrical examinations, including evaluation under environmental stressors such as moisture, temperature cycling, and long-term load conditions. YAGEO maintains traceable revision histories for its RC0805FR-0768KL and related product lines, enabling effective lifecycle management and support for qualification tasks within regulated industries.

Alternative or substitute options for the RC0805FR-0768KL YAGEO chip resistor

When considering alternatives or replacements for the RC0805FR-0768KL YAGEO chip resistor, engineers should consult other RC_L series devices matching the same power rating, tolerance, and package size (0805). Models with similar environmental compliance, construction quality, and electrical performance within the YAGEO RC_L series—such as RC0805FR-XX68KL (where XX reflects specific variant differences)—may serve as drop-in replacements given comparable specifications. Cross-referencing with other manufacturers offering 68kΩ ±1% 0805 chip resistors can further expand the pool of options, but careful verification of physical and electrical parameters remains essential for compatibility.

Conclusion

: Engineering considerations and recommendations for RC0805FR-0768KL YAGEO device selection

The RC0805FR-0768KL YAGEO chip resistor integrates the reliability, precision, and compliance necessary for modern electronic engineering. Its combination of robust construction, environmental certifications, and dependable electrical characteristics support its use across a variety of applications, from consumer goods to industrial electronics. Selection engineers and procurement specialists benefit from its tightly controlled tolerance and green manufacturing pedigree, ensuring high levels of quality and long lifecycle support. Engineering teams are encouraged to leverage YAGEO’s detailed documentation and broad RC_L series portfolio for optimized device choice, facilitating future-proof design through both original selection and careful alternative evaluation.
