YAGEO CC0805JKX7R7BB334

Summary of YAGEO CC0805JKX7R7BB334 Ceramic Capacitor Features

The YAGEO CC0805JKX7R7BB334 is a multilayer ceramic capacitor (MLCC) featuring a capacitance of 0.33 μF with a tight tolerance of ±5%, designed to operate reliably at a rated voltage of 16V. It belongs to the X7R dielectric classification, which ensures a stable capacitance over a wide temperature range, typical from -55°C to +125°C. Packaged in a standard 0805 (2012 metric) surface-mount size, this capacitor provides an optimal balance between compact footprint and electrical performance, making it an ideal choice for various electronic assembly applications requiring moderate capacitance values with stable characteristics.

Technical Properties and Electrical Performance of CC0805JKX7R7BB334

The key electrical parameters to consider for the YAGEO CC0805JKX7R7BB334 include its nominal capacitance of 0.33 μF and voltage rating of 16V DC. The ±5% tolerance ensures precision within typical manufacturing variations, suitable for circuits where tighter capacitance control is critical. The X7R dielectric type introduces minimal capacitance variability in response to temperature changes (-55°C to +125°C) and voltage bias, beneficial in power delivery or decoupling applications. The capacitor’s low equivalent series resistance (ESR) and inductance (ESL) support stable performance in high-frequency environments, which is essential for filtering, timing, and bypass functions. Considering the multilayer design, the capacitor also offers a good balance between capacitance density and electrical robustness.

Physical Dimensions and Layout Requirements for CC0805JKX7R7BB334

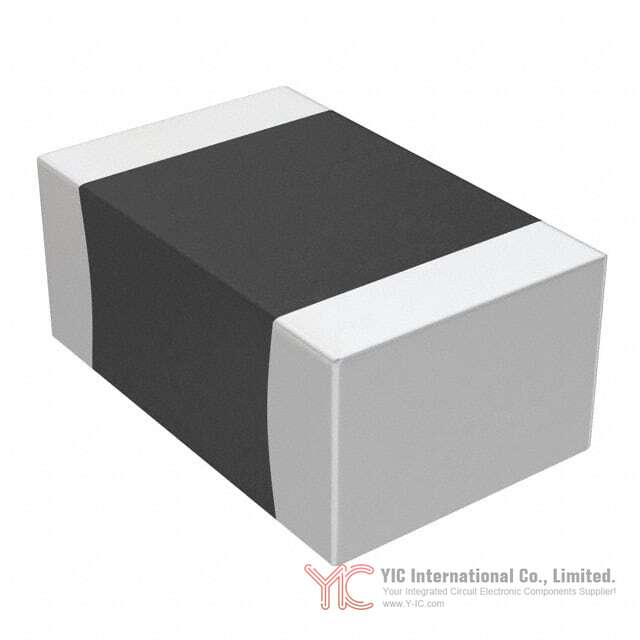

This capacitor is housed in the 0805 size package, measuring approximately 2.0 mm by 1.25 mm on the PCB. Such a footprint allows for high-density layout designs while maintaining ease of handling during automated placement. The 0805 package is widely adopted across industries, facilitating integration into standard surface-mount technologies (SMT) lines without requiring special processing. Furthermore, the robust termination and ceramic construction prolong mechanical durability under thermal cycling and vibration, critical for automotive, industrial, or consumer electronic assemblies where reliability over operational life is paramount.

Compliance with Environmental Standards and Reliability Information of CC0805JKX7R7BB334

The CC0805JKX7R7BB334 is fully compliant with RoHS3 directives, ensuring that it is free from restricted hazardous substances commonly regulated in global markets. It holds a Moisture Sensitivity Level (MSL) of 1, denoting unlimited floor life under recommended storage conditions, which simplifies inventory management and reduces handling constraints during manufacturing. Additionally, the capacitor’s REACH compliance status affirms its environmental safety from the perspective of chemical substance regulations. The reliability profile, supported by the YAGEO manufacturing standards, includes resistance to moisture and thermal stress, correlating with long-term stability in end products.

Usage Examples and Important Factors for Implementing CC0805JKX7R7BB334

In practical engineering applications, the CC0805JKX7R7BB334 is well-suited for decoupling and filtering operations on printed circuit boards, particularly near integrated circuits and microcontrollers where stable voltage supply is crucial. Its moderate capacitance and voltage rating fit well in consumer electronics, communication devices, and industrial control systems. When selecting this capacitor, engineers should consider the transient voltage spikes and the required derating margin, given the 16V rating. The X7R dielectric’s temperature and voltage characteristics also make it suitable for moderate temperature stability requirements but may necessitate verification in high-precision analog circuits. Proper PCB layout and grounding strategies are recommended to maximize capacitor effectiveness.

Alternative and Comparable Models for CC0805JKX7R7BB334

For engineers seeking alternatives to the YAGEO CC0805JKX7R7BB334, equivalent MLCCs with similar capacitance (0.33 μF), voltage rating (16V), tolerance (±5%), dielectric class (X7R), and 0805 footprint are available across other manufacturers. It is critical to match both electrical and mechanical specifications, particularly capacitance tolerance, dielectric stability, and termination robustness, to ensure seamless substitution without impacting circuit performance. OEMs frequently consider alternatives to mitigate supply chain risks or to match specific application standards, emphasizing cross-vendor compatibility.

Conclusion

: Selection Guidance for YAGEO CC0805JKX7R7BB334

The YAGEO CC0805JKX7R7BB334 presents a reliable and compact ceramic capacitor solution combining stable capacitance, moderate voltage rating, and environmental compliance suited for a wide range of electronics applications. Its 0805 package size and X7R dielectric ensure flexibility in PCB design while meeting standard performance criteria for decoupling, filtering, and timing circuits. Procurement and design engineers should evaluate environmental conditions, operating voltages, and layout constraints when integrating this component. Additionally, familiarity with potential replacement models enhances supply resilience. Overall, the CC0805JKX7R7BB334 is a dependable choice for engineers aiming to optimize their device’s electrical performance without compromising on manufacturing efficiency or regulatory compliance.
