Vishay Dale CRCW1210243RFKEA

Summary of CRCW1210243RFKEA Vishay Dale SMD Chip Resistor

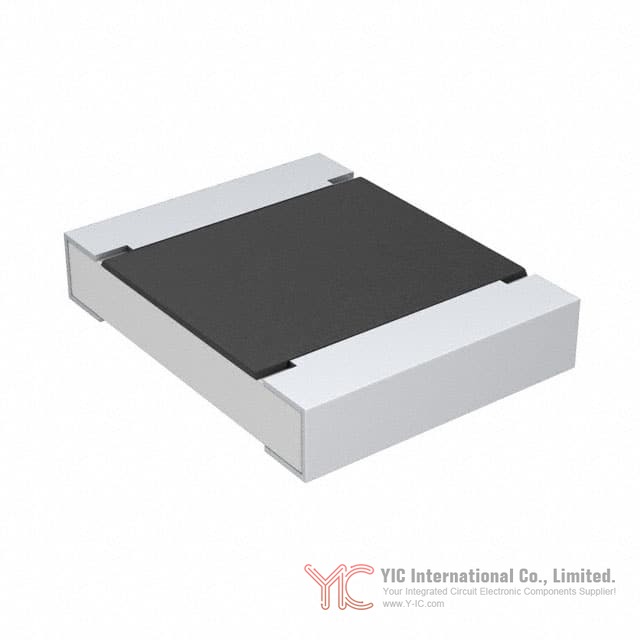

The Vishay Dale CRCW1210243RFKEA is an industry-standard surface-mount thick film resistor, specifically designed to meet the demands of high-reliability environments. With a resistance value of 243 Ω, a tolerance of ±1%, and a maximum operational power of 0.5 W (1/2 W) in a 1210 (metric 3225) footprint, this component is tailored for space-constrained designs where precise resistance and robust electrical performance are necessary. The resistor's certification to AEC-Q200 and its RoHS-compliant, halogen-free design position it as a prime candidate for safety- and regulation-conscious markets, such as automotive, industrial automation, and modern communication infrastructure.

Construction and Production Method of CRCW1210243RFKEA Vishay Dale

The CRCW1210243RFKEA leverages a thick film technology structure: a cermet resistive film is deposited atop a high-grade Al₂O₃ ceramic substrate, ensuring both mechanical and electrical stability. Inner contacts are carefully prepared before application of a resistive layer, which is then precisely laser-trimmed to achieve the target resistance value without compromising the integrity of the ceramic base. A glass overcoat is applied for both climate resilience and dielectric protection. Pure tin (Sn) is plated onto nickel (Ni) terminations, providing compatibility with both lead-free and traditional soldering processes while guarding against tin whisker growth. The finished resistor undergoes 100% inline automated inspection and is supplied following IEC 60286-3 taping standards, ready for automated assembly applications.

Primary Electrical and Environmental Features of CRCW1210243RFKEA Vishay Dale

The CRCW1210243RFKEA is engineered for stability across a range of operating conditions. Its core specifications include:

Resistance Value: 243 Ω

Tolerance: ±1%

Rated Power: 0.5 W (at 70°C ambient)

Form Factor: 1210 (3.2 × 2.5 mm nominal)

Stability: ΔR/R ≤ 1% after 1000 hours at rated power (70°C)

Temperature Derating: Essential to ensure that the maximum permissible film temperature is not exceeded in operation; excess ambient temperature or power dissipation may require enhanced solder alloys or board materials.

Environmental Category: Suitable for IPC/IEC standard environments and offering resistance value retention under damp heat and thermal cycling conditions.

For engineers, the resistor’s wide, stable operating temperature range and its proven immunity to common board-level cleaning solvents (including alcohols and aqueous solutions) further support flexible use in varying assembly processes.

Suitability for Automotive, Industrial, and Telecom Applications of CRCW1210243RFKEA Vishay Dale

The CRCW1210243RFKEA is especially well-suited to sectors where reliability and regulatory compliance are non-negotiable. Automotive engineers can rely on its AEC-Q200 qualification to address stringent mission-profile requirements associated with high levels of vibration, temperature stress, and extended operational life. In industrial automation and telecommunication systems, where dense PCBs and stable performance under fluctuating load and environmental conditions are vital, this resistor provides notable value thanks to its combination of precision, ruggedness, and environmental compliance.

Regulatory Compliance and Quality Control of CRCW1210243RFKEA Vishay Dale

This resistor series embodies Vishay's adherence to international quality and environmental standards. It is fully RoHS-compliant and halogen-free, aligning with end-product requirements for hazardous substance control, including compliance with IEC 62474, the REACH substances of very high concern (SVHC) list, and GADSL. CRCW1210243RFKEA units are also qualified per AEC-Q200—a critical standard for passive electronic components in the automotive sector, ensuring robust performance in harsh field conditions. The manufacturing process is supplemented by Vishay’s commitment to end-of-life (ELV) and waste electronic (WEEE) directives, offering both supply chain transparency and future-oriented risk management.

Installation Instructions for CRCW1210243RFKEA Vishay Dale in PCBA Assemblies

Designed for seamless integration into automated SMD assembly lines, the CRCW1210243RFKEA supports wave, reflow, and vapor phase soldering as outlined in IEC 61760-1. To maximize device reliability, conformal coatings or potting processes should be validated in the context of the specific assembly environment and materials. The tin-over-nickel termination offers enhanced solderability for at least two years following production or requalification, and test-proven immunity to tin whiskers supports manufacturers whose products require long-term storage or extended field deployment. Storage periods of up to 20 years are permissible under recommended conditions.

Testing Protocols and Reliability Metrics for CRCW1210243RFKEA Vishay Dale

The CRCW1210243RFKEA is tested to the limits specified in EN 60115-1, EN 60115-8, EN 140401-802, and multiple IEC 60068 series methods. Key reliability tests include assessments of load life, thermal shock, solderability, and resistance to climatic stress (high humidity and temperature cycling). Test conditions are closely matched to those encountered in actual operational environments—typically 15–35°C, 25–75% relative humidity, and atmospheric pressure between 860 mbar and 1060 mbar. Testing also extends to recognized standards like EIA/IS-703 and JIS-C-5201-1, ensuring cross-compatibility with international quality systems.

Alternative/Replacement Models Comparable to CRCW1210243RFKEA Vishay Dale

For engineers investigating potential replacements or backups for the CRCW1210243RFKEA, Vishay offers related products within its D/CRCW e3 thick film line, including resistors with tighter tolerances or improved TCR for precision-critical applications. For applications requiring Pb-based (SnPb) termination, the D/CRCW variant with such plating is available following the referenced datasheets. It is crucial, however, to carefully match equivalent values in power rating, environmental robustness (AEC-Q200 or equivalent), and footprint to avoid assembly or qualification issues. For designs prioritizing superior stability or tighter tolerance, Vishay’s “Lead (Pb)-Free Thick Film, Rectangular, Semi-Precision Chip Resistors” series (see datasheet 20036) may also be considered.

Conclusion

: Target Considerations for Engineering Deployment of CRCW1210243RFKEA Vishay Dale

The CRCW1210243RFKEA from Vishay Dale combines mature thick film technology, solid AEC-Q200 qualification, RoHS/halogen-free compliance, and ease of automated assembly. Its balanced performance profile meets the reliability and stability demands of automotive, industrial, and telecom infrastructure, while its compatibility with global environmental standards positions it as a future-ready choice for quality-driven organizations. When selecting this device, engineers and procurement personnel should evaluate the specific resistance, power, and environmental requirements of the target application, ensuring that the CRCW1210243RFKEA aligns fully with both technical needs and compliance mandates. For upgrades, replacements, or alternate sourcing, consult related Vishay product lines or datasheets for best-fit alternatives.
