Texas Instruments TPS72518DCQR

Introduction to the TPS72518DCQR Texas Instruments Linear Regulator IC

The TPS72518DCQR from Texas Instruments is a high-performance, fixed-output, low-dropout (LDO) linear voltage regulator designed for precision power delivery in demanding electronic systems. Packaged in the compact SOT223-6, the device integrates a fixed 1.8V output capable of supplying up to 1A load current. As a member of the TPS725xx family, the TPS72518DCQR is optimized for use with modern DSPs, FPGAs, and microprocessor-based circuits, offering a blend of low supply voltage operation, high output current, and on-chip supervisory features.

The architecture and feature set of the TPS72518DCQR are tailored to meet the requirements of both high-reliability infrastructure and sensitive portable applications, ensuring stable operation across a broad spectrum of input voltages and operating environments.

Main Attributes of the TPS72518DCQR

Engineers seeking a robust LDO regulator will note several stand-out features of the TPS72518DCQR:

1A Maximum Output Current: Supports high-load scenarios common in FPGA and microcontroller-based designs.

Low Input Voltage Operation: Operates with input voltages down to 1.8V, maximizing battery utilization and compatibility with modern supply rails.

Low Dropout Voltage: With a typical dropout voltage under 200mV at full load, the TPS72518DCQR ensures minimal voltage loss, crucial for low-voltage rails and battery-operated systems.

Output Capacitance Flexibility: The device is stable with any type and value of output capacitor, simplifying board-level design and allowing customization of transient response.

Integrated Supervisor Function: Includes an active-low RESET output with a 50ms delay, providing critical supply monitoring and system reliability.

Low Quiescent and Standby Current: 210μA at full load and less than 1μA in standby enable efficient power management.

Precision Output: ±2% output voltage tolerance over load, line, and temperature (−40°C to 125°C) ensures tight regulation for sensitive ICs.

Integrated Protections: Incorporates thermal shutdown, overcurrent limiting, and undervoltage lockout, safeguarding both the regulator and downstream components.

Recommended Uses for the TPS72518DCQR

The TPS72518DCQR’s electrical and supervisory features make it an ideal fit for a variety of electronic systems, including:

PCI Cards and Telecom Boards: The low noise output is advantageous for analog-sensitive environments.

Modem Banks and FPGA/DSP Rails: Provides clean logic power for digital processing circuits.

Microprocessor Power Supplies: Ensures stable core and I/O voltages for both legacy and next-generation controllers.

Portable/Battery-Powered Equipment: The combination of low input voltage support and low quiescent current extends battery life and increases efficiency in handheld or mobile systems.

Operational and Electrical Details of the TPS72518DCQR

At its core, the TPS72518DCQR delivers a fixed 1.8V output with up to 1A current, making it well-suited for low-voltage supplies with moderate-to-high current demands. Key electrical highlights include:

Input Voltage Range: 1.8V to 6V, supporting both legacy and modern low-voltage standards.

Dropout Voltage: Defined as the input-to-output voltage difference at which the regulator fails to maintain nominal output; typically less than 200mV at 1A load.

Output Voltage Accuracy: Maintained within ±2% over the full range of load, line, and temperature variations.

Output Noise and Ripple: Low noise operation (typ. 150μVRMS with a 10μF output capacitor) minimizes interference in mixed-signal and RF systems.

Supervisory Output (RESET): Signals when output voltage falls out of regulation, enhancing system diagnostic capabilities.

Engineers benefit from the regulator’s ability to operate with or without an output capacitor, offering flexibility in PCBA real estate allocation and transient behavior tuning. The regulator maintains stability even at light or zero load current, broadening its applicability in dynamic load environments.

Safety and Reliability Features of the TPS72518DCQR

Robust reliability features are built into the TPS72518DCQR, making it well-suited for mission-critical and always-on systems:

Reverse Current Protection: A built-in back diode safely conducts reverse current during input undervoltage or power-down scenarios.

Overcurrent Limiting: Self-protects by limiting output current to ~1.6A and scales output voltage in persistent overload events.

Thermal Shutdown: Actuates at TJ >165°C and automatically resumes when the device cools below 145°C.

Undervoltage Lockout (UVLO): Prevents inappropriate operation at insufficient input voltages.

These mechanisms safeguard against common field and manufacturing stresses, making the TPS72518DCQR an excellent choice in high-availability system designs.

Heat Dissipation and Thermal Solutions in TPS72518DCQR Applications

Effective heat management is critical for high-current LDOs. The TPS72518DCQR, available in the SOT223 package, is engineered for improved power dissipation in surface mount applications. The on-board copper plane under the package, in conjunction with recommended PCB layouts, provides optimal thermal performance.

Power Dissipation: Calculated as PD = (VIN − VOUT) × IOUT, excluding typically negligible quiescent current.

Maximum Junction Temperature: Designed for reliable operation up to 125°C.

PCB Heatsinking: SOT223’s thermal resistance can be reduced by increasing the heat spreading copper area, with suggested values provided in the datasheet for common board designs.

Practical design example: For 3.3V in/2.5V out at 1A and 55°C ambient with sufficient copper, the SOT223 safely handles ~800mW. Engineers should employ the provided thermal models to map appropriate package and PCB solutions for their applications.

Package, Physical, and Environmental Information on the TPS72518DCQR

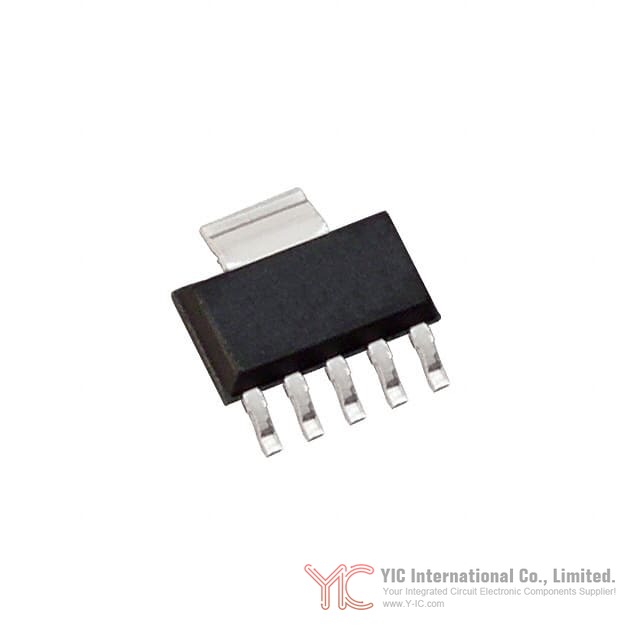

The compact SOT223-6 package of the TPS72518DCQR allows for space-efficient integration in high-density layouts. Pertinent details include:

JEDEC Standard Compliance: SOT223 and land pattern recommendations ensure reliable soldering and assembly.

Moisture Sensitivity Level: Adheres to industry standards for lead-free, RoHS-compliant manufacturing and high-temperature soldering.

Environmental Ratings: TI "Green" and "RoHS" designations guarantee the absence of environmentally restricted substances.

Board Layout: Thermal vias under the package improve heat transfer; designers should reference provided stencil and pad recommendations for reliable assembly.

Alternative or Substitute Options for the TPS72518DCQR

To assist engineers during new design starts or component requalification, the following Texas Instruments models can serve as close replacements or alternatives to the TPS72518DCQR, depending on output voltage requirements:

TPS72501: Adjustable version (1.22V to 5.5V), offering similar thermal and current characteristics with an external resistor divider for custom voltages.

TPS72515/TPS72516/TPS72525: Fixed output versions at 1.5V, 1.6V, and 2.5V respectively, all sharing similar package, current, and supervisory functionality.

Designers should verify the selected alternate meets specific electrical, thermal, and packaging requirements for their application, as minor differences in pinout or supervision may exist.

Conclusion

The Texas Instruments TPS72518DCQR delivers a compelling blend of low-dropout voltage, precision output, supervisory functions, and robust thermal and protection features in a compact SOT223-6 package. Its low input voltage support, high output current, and flexibility regarding output capacitance make it a top-tier choice for modern FPGAs, processors, and telecom or portable electronics requiring clean, reliable 1.8V power. Equipped with detailed design guidance, integrated protection, and multiple voltage variants, the TPS725xx family—including the TPS72518DCQR—offers engineers and procurement professionals a reliable solution for advanced system designs demanding efficiency, safety, and long-term supply continuity.
