Texas Instruments LM317SX/NOPB

Mfr. Part

LM317SX/NOPB

Manufacturer

Texas Instruments (formerly Luminary Micro). Y-IC is a quality distributor for TI. We supply genuine parts, fast delivery, and responsive technical support to ensure you get the best products and services

Detailed Description

Adjustable positive linear voltage regulator delivering up to 1.5 A in a surface-mount DDPAK TO-263-3 package. Input up to 37 V, adjustable output from 1.25 V to 37 V with two external resistors. Strong protection features include overcurrent, thermal shutdown, and short-circuit protection. PSRR is 64 dB at 120 Hz. Quiescent current typically 10 mA. Operating temperature 0 to 125 C. RoHS3 compliant. Available in Tape and Reel for automated assembly. Base device family LM317

Key Features

Adjustable output range 1.25 V to 37 V

Output current up to 1.5 A continuous

Positive, single-channel linear regulator

Input voltage up to 37 V

PSRR 64 dB at 120 Hz helps reduce ripple on the output

Built-in protections overcurrent, thermal shutdown, short-circuit

Quiescent current around 10 mA for simple power budgeting

Surface-mount DDPAK TO-263-3 with exposed tab for better heat dissipation

RoHS3 compliant lead-free NOPB finish

Supplied in Tape and Reel for high-volume production

Key Advantages

Simple to set output voltage using just two resistors easy design-in

Wide input and output range suits many rails and post-regulation tasks

Robust protections improve system reliability under fault conditions

Proven, widely used LM317 architecture with broad ecosystem and design resources

Strong PSRR and clean linear output ideal for sensitive analog and audio circuits

Good thermal handling in D2PAK package when mounted to copper planes

High availability large stocking options suitable for mass production

Packaging

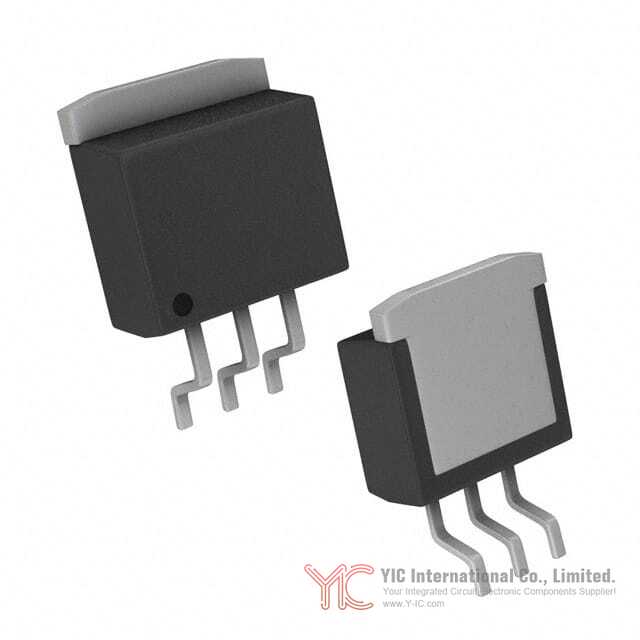

Package type DDPAK TO-263-3 also known as D2PAK, TO-263AA, 3 leads plus exposed tab

Mounting Surface Mount SMD

Tape and Reel TR for automated pick-and-place

Material Molded epoxy body with copper leadframe plating is lead-free NOPB

Pin configuration Pin 1 ADJ, Pin 2 OUT, Pin 3 IN. Exposed tab is electrically connected to OUT. Always verify pinout in the datasheet for your exact variant

Mechanical size Standard TO-263 outline per JEDEC. See datasheet mechanical drawing for exact dimensions and land pattern

Thermal characteristics Exposed tab enables efficient heat spreading to PCB copper. Use large copper areas and thermal vias to lower junction temperature. Thermal performance depends on board layout and airflow

Key electrical properties Input voltage max 37 V. Adjustable output 1.25 V to 37 V. Output current up to 1.5 A. Quiescent current about 10 mA. PSRR 64 dB at 120 Hz. Operating junction temperature range 0 to 125 C

Related case naming You may see TO-263-4 DPak 3 leads plus tab naming in references. This device uses the 3-lead D2PAK footprint with the tab as the fourth mechanical feature

Lifecycle

Status Active and in volume production. Not near discontinuation based on current industry status

Equivalent and alternative models Functionally similar adjustable 1.5 A regulators commonly used as cross references. Always verify pinout, dropout, tolerances, protection behavior, and thermal specs before substitution

- Texas Instruments LM317S NOPB D2PAK TO-263-3

- Texas Instruments LM317T NOPB TO-220-3 through-hole same electrical core

- Texas Instruments LM317A family tighter reference tolerance options

- STMicroelectronics LM317D2T-TR D2PAK-3

- onsemi LM317D2T D2PAK-3

- Microchip MIC29152-ADJ 1.5 A adjustable LDO different dropout and stability requirements

- Analog Devices LT1086-ADJ 1.5 A LDO different dropout and pinout

If you need a drop-in alternative or guidance on the best substitute for your design, contact our sales team via the Y-IC website for detailed cross-selection and availability

Key Application Areas

Post-regulation after a switching converter to reduce ripple and noise

Local point-of-load regulation for MCUs, FPGAs, and digital logic rails

Precision analog and audio supplies where low noise is important

Adjustable lab and bench power supplies

LED current regulation using a sense resistor for constant current

Battery chargers and backup systems with controlled charge voltage

Industrial control, instrumentation, and test equipment

Sensor biasing and reference rails

Education and prototyping due to simple two-resistor adjustability

Datasheet

Y-IC hosts the most authoritative datasheet and documentation for LM317SX NOPB on our product page. We recommend downloading the datasheet on this page to confirm pinout, thermal limits, layout guidelines, and exact electrical characteristics
