Samsung Electro-Mechanics America, Inc. CL10B103KB8NFNC

Summary of CL10B103KB8NFNC Samsung Electro-Mechanics Multilayer Ceramic Capacitor

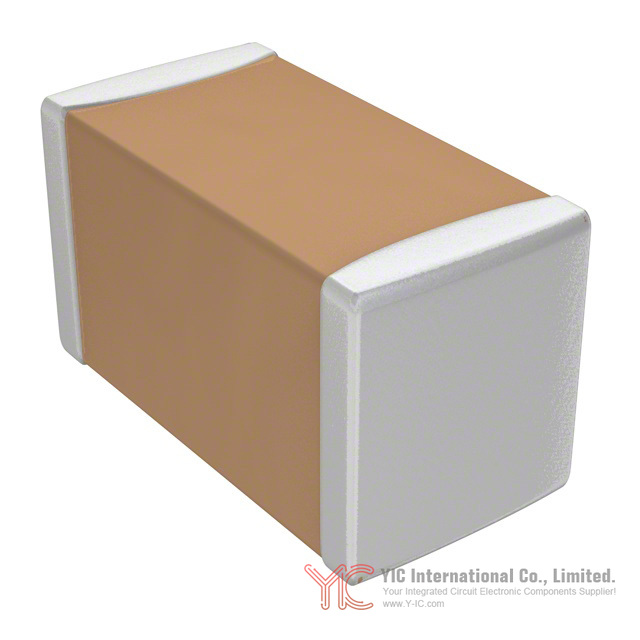

The Samsung Electro-Mechanics CL10B103KB8NFNC is a high-reliability multilayer ceramic capacitor (MLCC) designed for surface mount applications. It features a capacitance of 10,000 pF (10 nF), a rated voltage of 50 V, an X7R temperature characteristic, and the compact 0603 (1608 metric) package. This model is engineered for diverse general-purpose electronics, including consumer electronics, industrial equipment, and communications devices, where board space, temperature stability, and electrical performance are critical.

MLCCs like the CL10B103KB8NFNC are widely adopted for their low ESR, high volumetric efficiency, and robust passive performance under a range of environmental conditions. Samsung Electro-Mechanics, as an industry leader, ensures that this product adheres to tight quality controls and is suitable for automatic surface-mount technology (SMT) assembly processes.

Main Technical Parameters of CL10B103KB8NFNC

The CL10B103KB8NFNC is defined by several essential parameters critical for device selection:

Capacitance: 10,000 pF (10 nF)

Capacitance tolerance: ±10%

Rated voltage: 50 V DC

Dielectric: X7R (Class II), supporting stable operation from -55°C to +125°C

Package size: 0603 (1608 metric)

Maximum operating temperature: 125°C

Construction: Multilayer ceramic, surface mount, with terminations suitable for lead-free soldering

Such a specification profile is ideal when balancing the requirements for physical miniaturization, electrical reliability, and cost-effectiveness in modern electronics.

Electrical Properties and Performance Factors of CL10B103KB8NFNC

For performance-critical applications, several key electrical attributes determine MLCC suitability:

Capacitance measurement follows EIA RS-198-1-F-2002, with the value potentially changing due to voltage bias, ambient temperature, or aging (as applicable for X7R Class II ceramics).

The device offers low dissipation factor (DF), suitable for standard decoupling and filtering, but is less recommended for high-linearity timing or precision analog functions.

Insulation resistance stabilizes after 1 minute at rated voltage, ensuring minimal leakage and system reliability.

X7R dielectric ensures that capacitance change over the -55°C to +125°C range does not exceed ±15% of the nominal value.

Capacitance aging, typical of Class II dielectrics, is present—A regression restarting after exposure to temperatures above 150°C, which should be considered in timingor filter-critical circuits.

The device's DCand AC-bias characteristics mean that capacitance may decrease with applied voltage, necessitating careful derating in high-voltage or mixed signal applications.

Impedance profile: At lower frequencies, the capacitor operates as a pure capacitance; as frequency increases, equivalent series inductance effects emerge, and at the device's self-resonant frequency only ESR dominates. These frequency responses should be evaluated for filtering or energy transfer circuits.

Physical Construction, Durability, and Environmental Specifications for CL10B103KB8NFNC

Robust mechanical and environmental performance underpins the CL10B103KB8NFNC's value proposition:

The device supports reflow soldering at 260°C (±5°C) for up to 30 seconds, in line with modern lead-free processes.

Body structure is engineered for mechanical strength, but as with all SMD MLCCs, the capacitor remains sensitive to PCB flexing, vibrations, and thermal expansion mismatches.

Reliability tests cover solderability, bending, adhesive strength, and resistance to environmental stressors.

Environmental compliance: The device is suitable for use and storage at up to 125°C operating temperature and in 0–70% RH environments. Prolonged exposure to excessive heat or humidity can jeopardize solderability and component longevity.

Suggested Mounting, Soldering, and Process Integration Practices for CL10B103KB8NFNC

To achieve high assembly yields and product reliability, the following recommendations must be observed:

Reflow is the preferred soldering method, with a temperature peak of 260°C for no more than 30 seconds. Pre-heating and controlled cooling are essential to avoid thermal shock.

Flow soldering or manual soldering is possible but must be done with rigorous temperature and dwell-time control to prevent cracking.

The MLCC should be mounted with its major axis parallel to the direction of expected mechanical stress, and as far as possible from PCB cutouts or screw holes to minimize stress from board flexure.

Excess solder or excessive land sizes can induce mechanical stress and cracking; conversely, inadequate solder can result in poor adhesion or open circuits.

Optimal use of adhesives, fluxes, and cleaning agents requires compatibility assessment, as aggressive chemicals or improper application can degrade insulation resistance or corrode terminations.

Rework, cleaning (especially ultrasonic), and subsequent board handling all require techniques that minimize exposure to mechanical or thermal shock.

Instructions for Packaging, Handling, and Storage of CL10B103KB8NFNC

Effective handling and logistics ensure in-spec performance when the device reaches the line:

Supplied in IEC 60286-3 compliant tape and reel or box packaging, the CL10B103KB8NFNC accommodates high-speed SMT lines.

Cover tape peel-off force is controlled to 10–70 g.f, ensuring consistent automated placement and minimal static issues.

Shelf life is recommended as 6 months post-shipment, with storage ambient between 0–40°C and <70%RH to minimize oxidation and preserve solderability.

Protection from corrosive atmospheres, extreme vibration, or shock—during storage, handling, and transportation—is essential to prevent latent damage.

Design Integration and Application Engineering Guidelines for CL10B103KB8NFNC

Design engineers should consider the following during circuit development and layout:

SMD MLCCs like the CL10B103KB8NFNC are susceptible to mechanical and thermal cracking—especially at board weak points, during soldering, and due to CTE mismatch with PCB materials.

It is good practice to simulate the voltage, temperature, and environmental stresses to anticipate capacitance drift and derate as appropriate.

When high voltage surges, ESD, or excessive vibration are possible, use additional protection such as fuses or snubbers.

In applications requiring stringent electrical stability, factors like capacitance tolerance, temperature coefficient, and DC-bias-induced derating must be incorporated into component selection margins.

Assembly and post-reflow processes should minimize board bending, flexing, or shock, and appropriate support jigs should be used during test probing or connector insertion.

Coating materials for post-assembly protection should be selected to match the MLCC's CTE and be non-corrosive.

The capacitor is not rated for high-reliability automotive, aerospace, medical, or other critical safety-related environments without further engineering qualification.

Alternative or Substitute Models Comparable to CL10B103KB8NFNC

For situations where supply chain flexibility or second-sourcing is needed, engineers should consider the following when selecting a replacement MLCC for the CL10B103KB8NFNC:

The candidate should match on capacitance value (10 nF), voltage rating (≥50 V), and X7R dielectric.

Package dimensions must be 0603 (1608 metric) or an exact equivalent to ensure PCB compatibility.

Capacitance tolerance should be ±10% or better; wider tolerance may impact design margin.

Same or superior maximum operating temperature (up to 125°C) is required.

Comparable or better impedance, dissipation factor, and insulation resistance profiles are needed to maintain system-level EMC and power integrity.

Alternative manufacturers with equivalent offerings include Murata (GRM188R71H103KA01D), TDK (C1608X7R1H103K), and AVX (06035C103KAT2A), but the final selection should be validated by cross-referencing the detailed datasheets and, if possible, sample-level testing.

If a tighter specification is required (e.g., C0G/NPO dielectric, lower ESR), select a ceramic MLCC tailored for enhanced performance, though this may increase cost or reduce capacitance in the 0603 form factor.

Conclusion

The Samsung Electro-Mechanics CL10B103KB8NFNC MLCC offers a robust combination of electrical reliability, compact size, and process compatibility for a wide range of PCB designs operating up to 50V and +125°C. Its X7R dielectric characteristic, industry-standard 0603 package, and thorough quality assurance make it a compelling choice for designers seeking both cost effectiveness and dependable passive performance.

Proper consideration of electrical characteristics, mechanical integration, and the nuances of board processing are necessary to leverage the full performance and reliability of the CL10B103KB8NFNC. For engineering projects requiring high component reliability and supply chain flexibility, validating potential equivalent models is recommended to limit risk and maintain project timelines.

By adopting industry-proven MLCCs such as the CL10B103KB8NFNC, engineers and procurement professionals can ensure robust, repeatable performance in demanding electronic systems, provided all recommended handling and design practices are implemented.
