STMicroelectronics STC3117IJT

Introduction to the STC3117IJT Battery Monitoring IC from STMicroelectronics

Portable battery-powered products, such as smartphones, wearable devices, and medical instruments, require precise state-of-charge (SOC) monitoring to ensure user safety, reliable operation, and optimal battery longevity. The STC3117IJT, developed by STMicroelectronics, is a dedicated battery monitor IC that serves this crucial role. Housed in a compact 9-bump, 1.49 x 1.594 mm chip-scale package (CSP), the STC3117IJT combines a high-precision analog front end with an advanced gas gauge algorithm, making it an ideal fit for handheld electronics where space, efficiency, and accuracy are premium design factors.

Major Characteristics and Operational Benefits of the STC3117IJT

The STC3117IJT centers around the patented STMicroelectronics OptimGauge™ algorithm, which offers high-accuracy SOC estimation by dynamically tracking battery conditions such as temperature changes, operating profiles, and cell aging. The device operates in multiple modes to strike a balance between power consumption and monitoring fidelity:

Mixed mode for combined voltage and current measurement (highest accuracy)

Voltage-only mode for ultra-low-power operation (40 μA typical)

Standby mode with minimal consumption (2 μA max)

Key functions also include programmable alarms for low SOC or voltage, battery swap/missing detection, built-in temperature sensing, and end-of-charge recognition. Together, these enable system-level protection and maximize battery safety in real-world usage, particularly in portable and mobile device environments.

Key Technical Specifications of the STC3117IJT

The STC3117IJT is engineered with robust electrical specifications to support diverse Li-Ion and Li-Po battery chemistries:

Input voltage measurement range: 0 to 4.5 V, with 2.20 mV resolution

Battery voltage measurement accuracy: ±0.5% across -20°C to +70°C

Internal temperature measurement: -40°C to +125°C, resolution 1°C

Flexible sense resistor and battery capacity configuration via register interface

Supports I²C fast-mode communication up to 400 kbit/s, ensuring seamless integration with application processors or microcontrollers

Small CSP form-factor (1.49 x 1.594 x 0.4 mm), enabling direct PCB mounting in ultra-compact PCBs

Battery Management and Gas Gauge Design of the STC3117IJT

The STC3117IJT introduces a hybrid battery gas gauge system, utilizing both coulomb counting (current integration) and voltage-based SOC prediction. In mixed mode, the IC continuously measures both current and voltage, compensating for dynamic load and temperature variation. The coulomb counter tracks real-time charge and discharge flow, ideal for rapid load changes. Simultaneously, the voltage gas gauge relies on open-circuit voltage (OCV) correlation to actual battery SOC, implementing a built-in high-precision OCV curve.

Engineers can configure key parameters such as sense resistance, nominal battery capacity, and battery impedance through accessible registers. This adaptability means the STC3117IJT can be tuned for different battery pack designs and custom cell characteristics. The dynamic, mixed-mode logic allows the IC to autonomously switch between high-accuracy and low-power operational modes—critical for applications that alternate between bursts of high activity and standby.

Alarm and Safeguard Features of the STC3117IJT

A programmable alarm output (ALM) pin provides hardware-level alerts for low SOC, low voltage, or battery fault events. This is especially valuable in safety-sensitive medical devices, IoT trackers, or industrial handhelds. The on-chip logic detects not only SOC/voltage thresholds, but also identifies battery removal or insertion through dedicated pins (BATD, CD). False triggering due to contact bounce or transient events is suppressed using a debounce timer and threshold logic.

The STC3117IJT can directly participate in system-wide battery health management: the alarm output can prompt the host controller to safely shut down or initiate user notifications, while battery swap detection ensures system parameters are re-initialized for any new or replaced cell, thus preventing SOC drift or user confusion.

Configuration of Interface and Registers in the STC3117IJT

The STC3117IJT communicates via a standard I²C interface (7-bit slave address), allowing both read and write access to a comprehensive set of 31 control and 16 RAM registers, as well as 48 OCV table registers. SOC, voltage, current, and temperature measurements are provided via dedicated registers, with well-defined coding (e.g., two's complement, specified LSB scaling). The register map is designed for efficient bulk transfers, ensuring data integrity and reducing processor overhead.

Configuration options extend to battery characteristic tables, alarm thresholds, mixed-mode algorithm parameters, and control bits for operational mode, full-reset, and host intervention. This allows high flexibility in host-controller-driven battery management routines.

Packaging and Integration Guidelines for the STC3117IJT

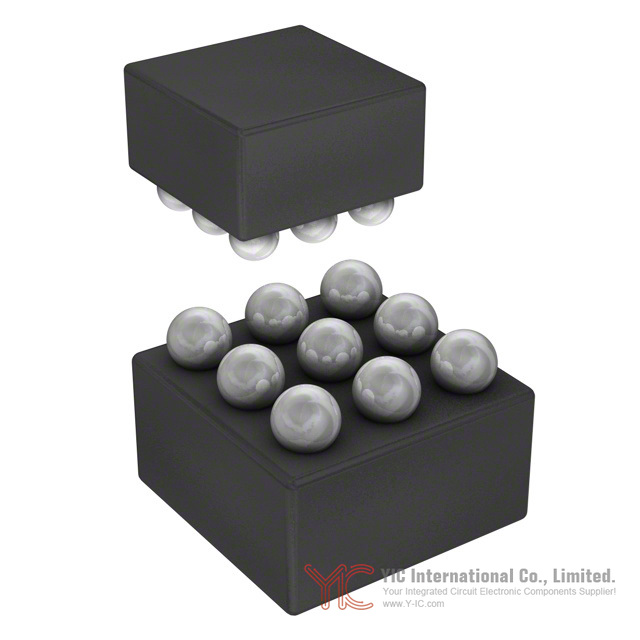

To serve the demands of ultra-compact product design, the STC3117IJT is supplied in a Flip Chip CSP (1.49 x 1.594 x 0.4 mm) with a 9-bump matrix, ECOPACK-compliant for environmental sustainability. The package allows for minimal footprint and low profile, making it ideal for space-constrained designs like fitness wearables, wireless headsets, or compact medical sensors. Careful PCB footprint and reflow recommendations from STMicroelectronics support straightforward, reliable board-level assembly.

Alternative or Substitute Models for the STC3117IJT

For engineers assessing sourcing risk or aiming for second sourcing, potential alternatives to the STC3117IJT from STMicroelectronics may include:

Texas Instruments BQ27541 or BQ27510 series (battery fuel gauge ICs with similar mixed-mode gas gauge architecture)

Maxim Integrated MAX17048 (compact voltage-based fuel gauge IC for Li-ion/Li-Po)

Renesas ISL94203 (battery monitor, though with a broader cell-monitoring feature set)

Note: When considering replacements, engineers should compare key parameters such as measurement accuracy, package size, algorithm sophistication (coulomb counting vs. voltage-mapping), and configurability to ensure application fit.

Conclusion

The STC3117IJT from STMicroelectronics stands out as a robust SOC and health monitoring solution for single-cell lithium battery applications in handheld and portable electronics. Its advanced, adaptive gas gauge architecture, rich feature set, low power consumption, and miniature CSP package offer significant design freedom for engineers. By enabling accurate capacity reporting, early-fault alarms, and seamless battery replacement recognition, the STC3117IJT enhances device reliability and user experience—making it a compelling choice for next-generation portable systems where power management is mission-critical.
