STMicroelectronics L78M08CV-DG

L78M08CV-DG STMicroelectronics Linear Voltage Regulator Product Summary

The L78M08CV-DG from STMicroelectronics is a precision linear voltage regulator designed to deliver a fixed 8V output at up to 500mA, housed in the robust TO-220 package. Belonging to the L78M family, it is suited for use as a local on-card regulation solution in electronic systems requiring reliable, stable power delivery. With the implementation of three-terminal regulation, the device simplifies integration into both analog and digital assemblies, making it ideal for engineers seeking consistent voltage rails in their designs.

Main Attributes and Internal Design of L78M08CV-DG

The L78M08CV-DG incorporates several critical engineering features that enhance reliability and operational stability:

Fixed output voltage (8V) with tight tolerance

Maximum continuous output current of 500mA

Integrated thermal overload and short-circuit (SOA) protection

Extended operating junction temperature range

Output voltages available across the L78M series (5V–24V) for multi-application compatibility

Internal current limiting, ensuring device integrity under fault conditions

Industry-standard TO-220 package, with compatibility across TO-220FP, DPAK, and IPAK options in the series

Its block diagram reveals stable regulation achieved through a feedback network and pass transistor, managed by internal compensation and safe-area circuitry. Device variants offer output voltage tolerance options: C versions at 4%, and AB/AC versions at 2%, supporting designs requiring precision rails.

L78M08CV-DG Maximum Limits and Safe Usage Range

Understanding the absolute maximum ratings and application-specific safe operating area is essential to prevent overstress and guarantee long-term reliability:

Maximum input voltage and junction temperature parameters as defined in the datasheet

500mA output current guarantee if adequate heatsinking and thermal management are in place

Comprehensive thermal shutdown capability for mitigating overload scenarios

Robust short-circuit protection, enabling the device to withstand fault conditions without permanent damage

It is important for selection engineers to verify that these ratings are compatible with the intended power delivery and ambient temperature ranges in their final application.

L78M08CV-DG Electrical Specifications

At typical laboratory conditions (e.g., input voltage of 14V, output current of 350mA, standard bypass capacitance), the L78M08CV-DG demonstrates:

Regulated 8V output with minimal drift across temperature (-40°C to +125°C for AB types, 0°C to +125°C for AC types)

Consistent line and load regulation, supporting transient stability in dynamic environments

Ripple rejection characteristics suited for noise-sensitive circuits

Quiescent current values indicative of efficient static operation

Specified input and output capacitance requirements to ensure optimal performance, including capacitor types such as tantalum for high-frequency rejection

L78M08CV-DG Typical Performance Indicators

Performance graphs illustrate key behavior under operational stress:

Dropout voltage versus junction temperature confirms reliability under low input-output differential voltage

Peak output current as a function of input-output voltage differential, guiding designs for demanding load cycles

Output voltage stability over temperature, supporting sensitive analog subsystems

Supply voltage rejection and quiescent current metrics, indispensable for power budget calculations

Transient response charts for both load and line variations, essential in dynamic load scenarios such as microcontroller or RF module power supplies

Guidelines for Designing and Example Circuits Using L78M08CV-DG

For engineering teams deploying the L78M08CV-DG, recommended design practices include:

Input bypass capacitor (≥0.33μF) selection for minimizing high-frequency noise, especially when located remotely from the main supply

Mounting techniques to minimize lead resistance and ground loops, benefiting regulation accuracy

Flexibility for adaptation: while the device is primarily a fixed regulator, external components can enable adjustable voltage operation, constant current regulation, and tracking voltages

Engineering reference circuits for diverse requirements: fixed output, constant current, high input voltage adaptation, power AM modulation, temperature compensation, and higher output currents

These guidelines ensure optimal stability, reliability, and performance, informing layout, assembly, and thermal design decisions.

Packaging Details for L78M08CV-DG and L78M Series

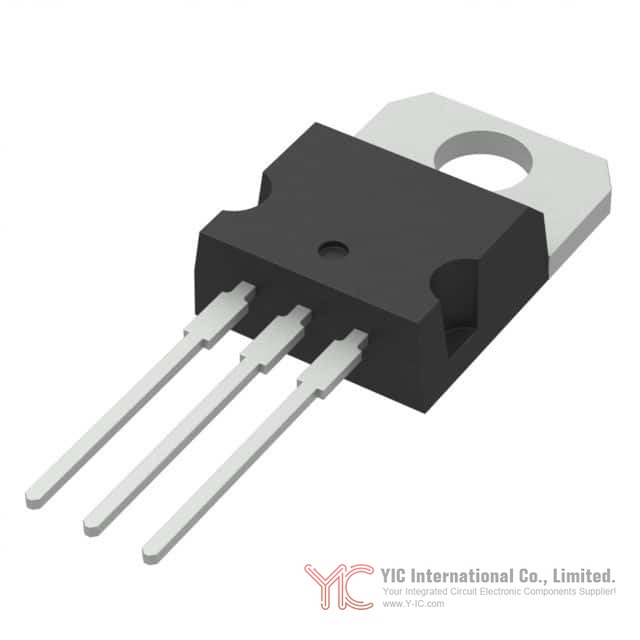

The L78M08CV-DG is predominantly available in TO-220, offering robust thermal properties and straightforward mounting. The broader L78M series includes variants in TO-220FP, DPAK (TO-252), and IPAK for applications requiring alternate mounting techniques or improved electrical isolation. Detailed mechanical data, footprint recommendations, and packing specifications support PCB design, automated assembly, and compliance with ECOPACK environmental standards.

Environmental Standards and Compliance Information for L78M08CV-DG

The L78M08CV-DG adheres to global environmental directives, critical for procurement compliance:

RoHS3 compliant, confirming absence of hazardous substances

REACH unaffected, ensuring seamless market integration

Moisture sensitivity level (MSL) of 1, denoting unlimited shelf life and simplified stocking procedures

ECCN and HTSUS codes facilitate export classification for international logistics and regulatory clearance

Alternative or Substitute Models for L78M08CV-DG

Engineers considering the L78M08CV-DG within the L78M series can compare it to variants matching desired output voltages (e.g., L78M05CV-DG for 5V, L78M12CV-DG for 12V) or alternative package options for mechanical and thermal requirements (TO-220FP, DPAK, IPAK). When replacing or updating power rails, the L78M series accommodates a broad spectrum of fixed-voltage needs without circuit redesign. Additional cross-referencing to other manufacturers’ three-terminal positive regulators is possible, but must account for equivalency in tolerance, protection features, and package compatibility.

Conclusion

The L78M08CV-DG from STMicroelectronics is engineered for robust 8V power rail regulation in demanding electronics environments. Its combination of precision, diverse package offerings, thorough protection features, and environmental compliance makes it a strong candidate for engineers and procurement professionals seeking reliability and performance. Comprehensive understanding of its ratings, characteristics, application circuits, and available series variants ensures optimal component selection and deployment for both new designs and system upgrades.
