STMicroelectronics E-L6258EX

Product Summary STMicroelectronics E-L6258EX Motor Controller

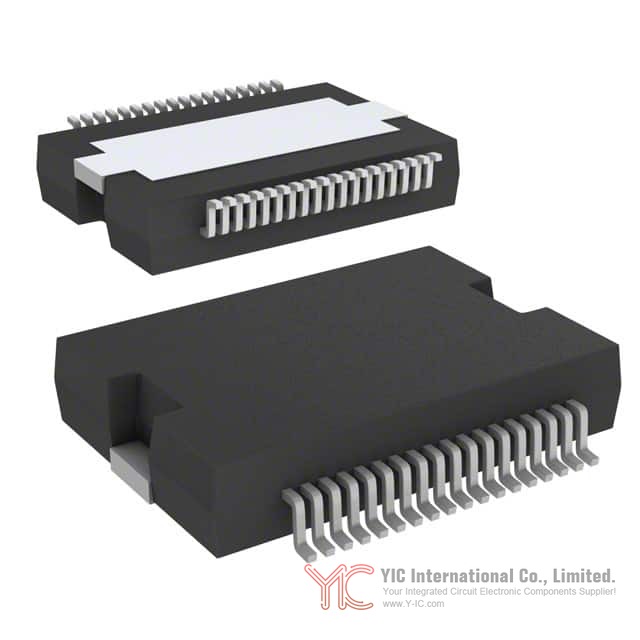

The STMicroelectronics E-L6258EX is a robust, high-efficiency dual full-bridge DMOS driver IC designed for optimal bipolar motor and bidirectional brushed DC motor control. Housed in the compact PowerSO-36 package, the E-L6258EX integrates both control and power stages, offering engineers a fully integrated solution for stepper and DC motor applications. With its active product status, the E-L6258EX is well-suited to drive high-current and high-voltage motor loads, catering to a broad range of industrial and commercial designs.

Primary Attributes and Operational Highlights of the E-L6258EX

The E-L6258EX brings a comprehensive set of features aimed at high-performance and reliability:

Direct drive capability for both windings of a bipolar stepper motor or two independent DC motors.

Continuous output current provision up to 1.5A per winding, with a 2A peak start-up current rating.

Wide supply voltage compatibility ranging from 12V to 40V for the power stage and 4.75V to 5.25V for logic.

Four quadrant current control for advanced microstepping and refined bidirectional DC motor control.

Integrated precision PWM control minimizes current ripple—critical for quiet, efficient motor operation.

Elimination of external recirculation diodes via internal diodes, simplifying system design.

Full suite of protection features: cross-conduction protection to prevent shoot-through, thermal shutdown, and TTL/CMOS compatible control inputs.

RoHS3 and REACH compliance, ensuring environmental safety and regulatory adherence.

Application Scenarios and Typical Uses for the E-L6258EX Motor Controller

Engineered for flexibility, the E-L6258EX addresses the needs of modern motion control systems. Common applications can be found in:

Industrial robotics utilizing microstepping drivers for smooth, quiet operation of stepping motors.

Office and business equipment such as automated printers or copiers requiring precise positioning.

Automated conveyor systems and general purpose automation, where efficient DC motor bidirectional drive is essential.

Embedded systems in consumer and automotive environments demanding robust PWM control and self-protection capabilities.

Any platform that requires a reliable, integrated solution for dual-motor drive under varying operational and linear power supply conditions.

Technical Data and Absolute Maximum Limits for the E-L6258EX

The E-L6258EX’s core technical parameters include:

Output Continuous Current: 1.5A per winding (non-repetitive peak up to 2A for max. 1 second).

Output Voltage Range: 12V to 40V for load; logic supply of 4.75V to 5.25V.

Logic inputs are compatible with typical TTL/CMOS levels; control is handled through a parallel interface.

Thermal ratings specify a 150°C junction temperature and flexible mounting options to optimize heat dissipation.

Environmental endurance: RoHS3 compliant, unaffected by REACH; Moisture Sensitivity Level of 3 (168 hours out-of-bag time).

Functional Block Diagram and Pin Configuration of the E-L6258EX

The E-L6258EX integrates a dual full-bridge architecture using advanced DMOS transistors with internal charge pump and error amplifiers for each bridge. Each bridge has dedicated input control, sensing, and feedback circuitry. The package features:

36 pins, including dual grounds for power and heat dissipation, bridge outputs, logic and analog controls, current sense lines, and error amplifier interfaces.

Dedicated pins for phase inputs (PH_1, PH_2), which set current direction for the load windings.

Differential sensing and reference voltage pins for high-precision current control.

Comprehensive PCB layout consultation suggested: sufficient ground copper and thermal pads are critical for maintaining reliable performance and safe operating temperatures.

PWM-Based Current Regulation and Motor Optimization with the E-L6258EX

At the heart of the E-L6258EX is its PWM-controlled current regulation system. The device utilizes a precision triangular wave generator and internal DACs to provide smooth, accurate current steps—supporting full, half, quarter, eighth, and sixteenth microstepping for stepper motors. This architecture allows fine-grained control over motor torque and position, while minimizing audible noise and improving energy efficiency. The integrated error amplifiers and sense amplifiers ensure closed-loop control over output current, with compensation for the motor’s back EMF to maintain stability under dynamic load conditions.

Design Guidelines for Integrating the E-L6258EX

Successful implementation of the E-L6258EX hinges on thoughtful schematic and PCB-level design. Engineers should:

Select appropriate sense resistor values to match the desired current limit and ensure accurate feedback.

Properly configure all unused logic and analog inputs (e.g., tie unused pins to proper states to avoid floating) to maintain system integrity.

Employ recommended capacitor values for the charge pump and PWM frequency set circuits; reference documentation tables for optimal noise and ripple characteristics.

Prioritize PCB thermal management, leveraging ample ground copper areas and, if necessary, board-mounted heat sinks to meet power dissipation requirements.

Consider thorough system-level protection: although the E-L6258EX provides internal thermal shutdown and cross-conduction defense, adequate input voltage filtering and supply sequencing are recommended for industrial environments.

Suitable Substitute/Equivalent Models for the E-L6258EX

While the E-L6258EX offers a well-balanced feature set, design engineers may also evaluate several relevant alternatives or pin-compatible models based on system specifics:

L6258EX from STMicroelectronics (standard series) shares the same electrical and functional properties.

Other dual full-bridge DMOS drivers with comparable PWM control and similar voltage/current handling.

Alternative drivers supporting microstepping for bipolar stepper and bidirectional DC motors, keeping compatibility and supply chain availability in mind.

Careful cross-referencing of electrical characteristics, package form factor, and control interface is necessary when considering substitutes, especially where efficiency, precision current control, or integrated safety features are critical.

Conclusion

: Engineering Value of the E-L6258EX in Motor Control Systems

The STMicroelectronics E-L6258EX stands out as a versatile and highly integrated solution for engineers seeking robust, high-precision control of bipolar stepper and DC motors. Its advanced current regulation, wide voltage range, and comprehensive self-protection make it a compelling choice for demanding automation, robotics, and industrial applications. Thoughtful attention to implementation details and alternative model compatibility will help design teams fully leverage the capabilities of the E-L6258EX, resulting in efficient, reliable motor drive solutions.
