STMicroelectronics VN7007AHTR

Summary of STMicroelectronics VN7007AHTR High-Side Switch

The STMicroelectronics VN7007AHTR emerges as a robust, single-channel high-side driver optimized for next-generation automotive power management. Leveraging ST’s proprietary VIPower® technology, the VN7007AHTR is supplied in a compact OctaPAK 7+1 surface-mount package and delivers a superior balance of high current handling, diagnostic capabilities, and resilient protection features, making it ideal for engineers looking to implement smart power distribution across automotive electrical systems.

Designed for direct interface with both 3.0V and 5.0V CMOS microcontrollers, the VN7007AHTR simplifies electronic power switching for a variety of high-current automotive loads. Its primary deployment includes smart power distribution units, glow plug controllers, electric heating elements, DC motor driving, relay replacement, and the actuation of high-power resistive and inductive loads. The device is AEC-Q100 qualified, supporting applications that demand rigorous standards for reliability and robustness.

Main Characteristics and Structural Design of VN7007AHTR

The VN7007AHTR integrates advanced circuit design, with its device functionality centered on seamless, reliable high-side power switching. Structurally, it includes a power channel based on an N-channel MOSFET, which provides a very low typical on-resistance of 7 mΩ, supporting currents up to a typical limitation of 100A—more than sufficient for high-power automotive circuits.

The switch is controlled via a logic-level input compatible with standard microcontroller outputs. It also integrates an analog current sense output (CS pin), which provides a real-time, proportional signal to externally monitor load current. The presence of the Sense Enable (SEn) pin allows engineers to activate or deactivate diagnostic monitoring—beneficial in power-saving or diagnostic modes.

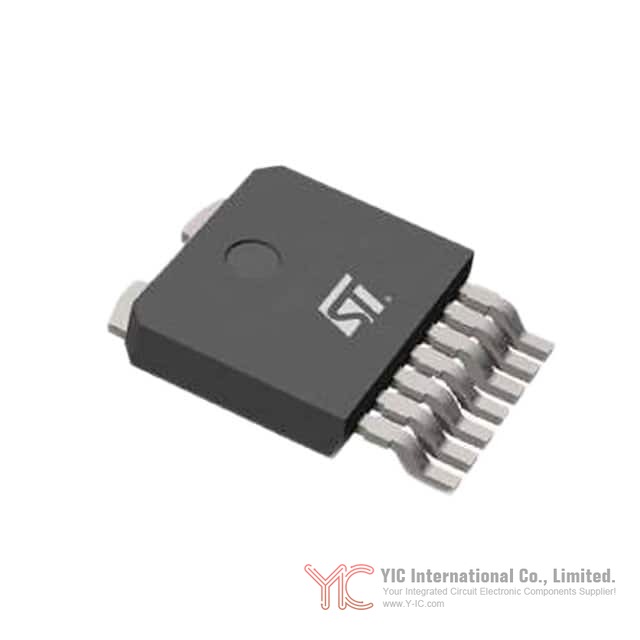

The OctaPAK 7+1 package is specifically designed for efficient heat dissipation and reliable surface mounting, ensuring PCB integration is both space and thermally optimized.

Electrical Characteristics and Operational Ratings of VN7007AHTR

The VN7007AHTR’s input voltage (Vcc) range is 4V to 28V, accommodating typical automobile supply rails while supporting safe operation during transient conditions and system variances. The device is resilient up to 40V transient pulses, complying with ISO7637-2 requirements for automotive transients.

Critical electrical parameters include:

On-State Resistance: Typical 7 mΩ, max 14.3 mΩ at 150°C, ensuring minimal voltage drop and thermal loss.

Current Limitation: Fixed at 100A (typical), with active response to overloads and transients.

Low standby current: Maximum 0.5μA, which significantly minimizes quiescent current when off, helping OEMs meet strict automotive power-save targets.

Input interface: CMOS compatibility (accepts 3.0V/5.0V logic high).

The electrical characteristics table provided by STMicroelectronics outlines all specs necessary for system engineers to assess real-world device suitability, including reverse polarity, ESD robustness (up to 4kV HBM), and comprehensive ratings for each interface pin.

Built-in Protection, Diagnostic Functions, and Feedback Systems in VN7007AHTR

Automotive power switches must operate reliably under abnormal and fault conditions, and the VN7007AHTR integrates a full suite of functional protections. Its on-chip diagnostics include current limiting, active power limitation, thermal shutdown, and load detection features.

Load current limitation and active power management automatically restrict output current during short circuits or overloads, protecting both the switch and any connected loads.

Overtemperature shutdown disables output if the device exceeds its junction temperature threshold, safeguarding the device from thermal fatigue.

Short to Vcc and ground, open-load detection, and undervoltage lockout ensure immediate fault recognition for comprehensive, real-time system diagnostics.

The analog CurrentSense pin provides precise feedback for load current monitoring, enabling direct integration into microcontroller-controlled diagnostic frameworks.

The SEn pin allows system-level optimization by toggling between active diagnostic feedback and low-power standby; suitable for modular systems or shared diagnostic arrangements among several high-side drivers.

Heat Dissipation and OctaPAK Packaging Analysis for VN7007AHTR

Thermal performance is a pivotal consideration when selecting high-current switches. The VN7007AHTR’s OctaPAK 7+1 package is engineered for optimal thermal flow, maintaining low junction-to-board thermal resistance (as low as 2.8°C/W) when implemented with recommended multi-layer PCB copper coverage.

Application of this package, in combination with specified PCB design guidelines, ensures efficient heat dissipation during prolonged operation at high loads or during transient surges, directly bolstering system reliability and device longevity. Thermal impedance curves and detailed package information enable accurate system-level derating and allow for predictive thermal management in complex automotive platforms.

Use Cases for VN7007AHTR in Automotive and Industrial Applications

The VN7007AHTR is purpose-built for modern automotive platforms, particularly for high-side switching of resistive and inductive loads. Primary use cases include:

Intelligent power distribution modules for body electronics

Glow plug and heating element actuators

Replacement of electromechanical relays in next-generation vehicle architectures

Control of high-current DC motors and actuators (for windows, seats, HVAC)

Owing to its diagnostic and protection capabilities, it is equally relevant for industrial and off-highway applications where load monitoring and fault tolerance are mission-critical. In all scenarios, the ease of interfacing with a microcontroller or ECU, combined with the ability to precisely sense output current, differentiates the VN7007AHTR from standard power MOSFETs or less-integrated high-side drivers.

Alternative and Comparable Models to VN7007AHTR

System designers seeking device alternatives may consider equivalent or similar-functionality products in the automotive high-side switch category. Key parameters when selecting alternatives include maximum operating voltage, current-limiting strategy, package type, diagnostic capability, and AEC-Q100 compliance.

Possible equivalents could include devices such as:

STMicroelectronics VN7016AJ: A multi-channel high-side driver in the same technology family, with adjusted current/loss specifications.

Infineon BTS500XX series: High-side switches with comparable protection and diagnostics.

Texas Instruments HSS series (e.g., TPS1H200A): Integrated high-side drivers featuring current sense and fault detection, suitable for similar automotive loads.

Careful comparison of on-resistance, maximum current rating, package size, and integrated diagnostics is critical when selecting a drop-in replacement for the VN7007AHTR in safety-centric or emissions-critical automotive systems.

Conclusion

The STMicroelectronics VN7007AHTR high-side driver stands out as a versatile, technically advanced solution for automotive and industrial engineers tackling high-current switching challenges. Its combination of robust electrical characteristics, integrated diagnostics, and a thermally efficient package addresses complex requirements in power distribution, safety, and control. With its comprehensive protection features and flexible system diagnostics, the VN7007AHTR offers an essential component for next-generation automotive power architectures, enabling engineers to build safer, more efficient, and smarter electronic systems.
