STMicroelectronics STM32F401CEU6TR

STM32F401CEU6TR Product Summary from STMicroelectronics

The STM32F401CEU6TR is a member of the STM32F4 series of microcontrollers from STMicroelectronics, engineered to deliver high performance, extensive connectivity, and advanced integration for demanding embedded applications. At its heart is the ARM® Cortex®-M4 32-bit RISC core, operating up to 84 MHz and featuring a single-precision floating point unit (FPU). This device targets engineers seeking a balanced solution combining computational capability, low-power operation, and a rich set of industrial-grade peripherals in a compact 48-pin UFQFPN (7x7 mm) package, with compliance to current RoHS and REACH standards.

Processor Architecture and Computing Capabilities of STM32F401CEU6TR

The STM32F401CEU6TR is powered by the ARM Cortex-M4 core with embedded FPU, supporting the full suite of ARM single-precision data-processing instructions and DSP features. With a memory protection unit for security and robustness, the processor achieves up to 105 DMIPS performance, leveraging an Adaptive Real-Time (ART) Accelerator to enable zero-wait-state program execution from flash memory at up to 84 MHz.

This architecture ensures deterministic real-time behavior and exceptional code efficiency—attributes highly valuable in motor control, medical, and industrial environments requiring high reliability and predictable response times. The processor is paired with a nested vectored interrupt controller, supporting up to 62 maskable interrupt channels, enabling rapid context switching and flexible interrupt prioritization for complex, multitasking applications.

Built-in Memory and Data Management Functions in STM32F401CEU6TR

The STM32F401CEU6TR provides a robust memory subsystem crucial for modern embedded systems:

512 KB of embedded flash memory, accessible at full processor speed for both code and data storage

96 KB of system SRAM with zero wait state access

16-stream, dual-port DMA controllers (DMA1 and DMA2) supporting burst and double-buffered data transfers for maximum peripheral bandwidth utilization

A multi-AHB bus matrix connects all masters and slaves, ensuring seamless simultaneous access to memory and peripherals, which is critical when multiple high-speed communication channels and data-processing peripherals are active. Dedicated hardware assists, such as a CRC calculation unit, support high-integrity software execution and compliance with standards like IEC 60335-1 in safety-related applications.

Energy Efficiency and Low-Power Features of STM32F401CEU6TR

Power efficiency is a design cornerstone of the STM32F401CEU6TR, making it suitable for battery-powered and energy-constrained environments. The microcontroller operates from a wide supply voltage range of 1.7V to 3.6V, features both internal and external voltage regulation options, and provides integrated power-on, brownout, and programmable voltage monitoring.

Advanced low-power modes are implemented:

Sleep: CPU halted, peripherals active, with fast wake-up

Stop: Clocks stopped, SRM contents retained, fast wake

Standby: Minimal consumption, powered only by VBAT (for RTC/backup registers)

Typical consumption figures, such as 146 μA/MHz running, 42 μA in Stop mode, and 2.4 μA in Standby, enable prolonged operation in remote or portable products. The microcontroller can also be powered from an external battery via the VBAT pin to maintain real-time clock functionality during main power loss—a key requirement in data logging and metering applications.

Expanded Peripheral Interfaces and Communication Options of STM32F401CEU6TR

To support a wide range of embedded scenarios, the STM32F401CEU6TR offers an extensive suite of digital and analog peripherals:

Up to 36 general-purpose I/Os, most 5V-tolerant

12 communication interfaces: 3 I²C (up to 1MHz), 4 SPI (up to 42 Mbit/s), 2 I²S for high-accuracy audio, 3 USART/UARTs (with advanced features such as ISO 7816, LIN, and IrDA support), SDIO, and USB 2.0 OTG Full-Speed

Multiple general-purpose and advanced-control timers for PWM, input capture, one-pulse mode, quadrature encoder interfacing, and synchronized motor control (including 16-bit and 32-bit timers)

A 12-bit, 2.4 MSPS ADC supporting up to 16 channels, with analog watchdog functionality and timer-triggered conversions for efficient mixed-signal applications

Real-Time Clock (RTC) with alarm, subsecond, and calendar features, and hardware calibration options to enhance timekeeping precision

This rich peripheral set allows seamless hardware integration in applications ranging from motor drives, PLCs, and medical instrumentation to printers, home automation, and audio appliances, reducing the need for external support components.

Enhanced Functions and Integrated Security in STM32F401CEU6TR

The STM32F401CEU6TR furthers its appeal with advanced functional and debug features:

The memory protection unit (MPU) is essential in real-time operating system environments and safety applications, allowing up to eight protected areas (each with subregions) for robust privilege separation.

Enhanced debug support via serial wire and JTAG interfaces, plus an Embedded Trace Macrocell (ETM), facilitating real-time trace and root-cause diagnosis without impacting CPU performance.

A unique 96-bit device identifier for traceability and secure provisioning.

Certain I/O and peripheral design elements (for example, 5V-tolerance, EMC-optimized pinout, and internal analog/digital filtering) contribute to resilience in harsh or noisy industrial settings.

Packaging Details, Thermal Characteristics, and Physical Specifications for STM32F401CEU6TR

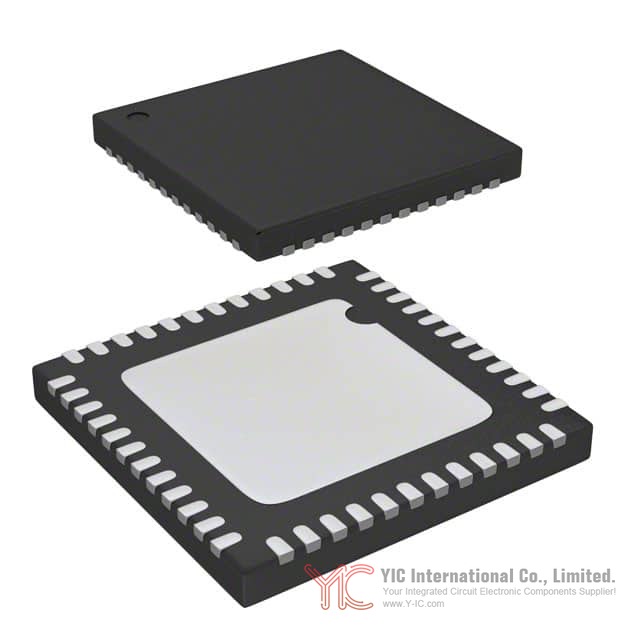

The STM32F401CEU6TR comes in a 48-lead ultra-thin fine-pitch QFPN (7x7 mm) package optimized for space-constrained applications and efficient board-level assembly. Mechanical and marking conventions are standardized for high-reliability SMT processes, including recommendations for back-side pad grounding, footprint design, and thermal management.

Thermal attributes such as the maximum junction temperature, thermal resistance, and package power dissipation are critical for applications operating in industrial temperature ranges (-40°C to +85°C). Attention to PCB layout for decoupling and thermal paths is essential to guarantee reliable operation in demanding environments.

Electrical Performance and Environmental Standards of STM32F401CEU6TR

The device is characterized with extensive electrical specification data, including:

Wide operating voltage (1.7V–3.6V) with detailed guidance on regulator ON/OFF modes

Maximum ratings for current, voltage, ESD, and latch-up immunity

Current consumption data for various operational states and peripheral combinations

ADC, I/O, and communication interface timing and accuracy parameters

Environmental qualifications: RoHS3 and REACH compliance, plus ECOPACK2 packaging

Engineers designing with STM32F401CEU6TR must account for recommended decoupling, I/O drive and injection limits, EMC best practices, and application-specific requirements (for example, synchronization of analog and digital supplies). Application notes are available from STMicroelectronics for in-depth PCB and clock oscillator design, further ensuring robust product development cycles.

Comparable or Substitute Devices for STM32F401CEU6TR

Within the STM32F4 family, the STM32F401xD/xE series—including STM32F401CEU6TR—are software and feature compatible with other STM32F4 MCUs such as STM32F405, STM32F407, STM32F41x, and STM32F42x/43x, permitting direct migration with minor PCB modifications. Alternative model selection may depend on:

Required package type or pin count (available in LQFP, UFBGA, WLCSP forms)

Desired memory size variants (e.g., 384 KB flash for xD models)

Specific peripheral set or higher/lower clock requirements

Engineers may also evaluate parallel STMicroelectronics product series depending on application-specific needs, such as additional ADCs, Ethernet, or CAN capabilities, but should confirm compatibility at the pinout, peripheral, and software abstraction levels during design migration.

Conclusion

The STM32F401CEU6TR exemplifies a balanced, high-performance ARM Cortex-M4 microcontroller for embedded engineers aiming for efficiency, versatility, and future-proofing in their designs. Its combination of processing power, fast and flexible memory infrastructure, advanced connectivity, and robust power management makes it an optimal choice for new designs or as a scalable upgrade within the STM32F4 series. Comprehensive documentation, ecosystem support, and compatibility across the STM32 platform further ease selection and integration for project teams and procurement specialists.
