The STG3682QTR from STMicroelectronics is a high-speed, low-voltage, dual single-pole, double-throw (SPDT) analog switch designed with advanced silicon gate CMOS (C²MOS) technology. Housed in a compact 10-lead QFN package (1.8 x 1.4 mm), this IC achieves an optimal blend of ultra-low power operation, broad bandwidth, and signal integrity, making it ideally suited for signal switching in portable and high-speed consumer applications. With its compliance to USB 2.0 high-speed requirement (480 Mbps), high ESD durability, and low ON-resistance, the STG3682QTR targets engineers seeking reliable and efficient analog multiplexing in constrained board spaces.

Key Attributes of the STG3682QTR

The STG3682QTR distinguishes itself with a set of features tailored for modern circuit design:

Ultra-Low Power Dissipation: The device offers a maximum supply current (ICC) of just 0.2 μA at 85°C, substantially reducing battery consumption in portable electronics.

Low ON-Resistance: With RON as low as 4.6 Ω at VCC = 4.3 V and 5.8 Ω at VCC = 3.0 V (both at 25°C), the switch ensures minimal insertion loss and distortion for transmitted signals.

Broad Operating Voltage Range: Supporting single-supply voltages from 1.65 V to 4.3 V, the STG3682QTR integrates seamlessly into various low-voltage system architectures.

High-Speed and Bandwidth: Typical bandwidth extends to 800 MHz (-3 dB), making it suitable for RF and high-data-rate paths.

Robust Digital Interface: The digital control input tolerates up to 4.3 V and is compatible with 1.8 V logic thresholds when operated above 2.3 V, enhancing flexibility in mixed-voltage environments.

Enhanced Reliability: The device’s latch-up immunity exceeds 100 mA per JESD 78 Class II, with ESD robustness up to 2000 V per JESD22 Human Body Model.

Pin Layout and Functional Overview of the STG3682QTR

The STG3682QTR employs a straightforward and space-efficient pinout in its QFN10 package, optimizing PCB area. Each switch is controlled via digital logic signals at its nSEL pins, with logic high and low states determining the connection between the common (D) and switched (S1, S2) ports. When nSEL is high, S1 connects to D; when low, S2 connects to D. The device’s architecture ensures “break-before-make” operation, preventing signal contention and potential damage during switching transitions.

An exposed pad improves thermal performance and should be soldered to a floating plane, per PCB design best practices; it must remain electrically isolated from supply and ground nets to avoid functional interference.

Electrical Specifications and Ideal Operating Parameters for STG3682QTR

Understanding the limits and optimal operating conditions is critical for robust circuit design:

Supply Voltage: Min 1.65 V to Max 4.3 V (single-supply)

Control Logic Input: Tolerant up to 4.3 V, with 1.8 V compatibility when VCC exceeds 2.3 V

Operating Temperature: Up to 85°C, with power derating specified above 70°C at 18.5 mW/°C

Absolute Maximum Ratings: Exceeding these, including supply, logic input, or analog input limits, risks permanent damage and impacts device reliability.

Recommended Conditions: Truth table operation is guaranteed between 1.2–4.3 V.

A system designer should reference these values when specifying power rails, control logic, and thermal solutions to ensure long-term function.

Comprehensive Electrical and Switching Specifications for STG3682QTR

The STG3682QTR’s electrical characteristics underpin its performance in signal path applications:

ON-Resistance (RON): 4.6 Ω typical at 4.3 V supply, with low flatness (variation over analog range), essential for signal fidelity.

Bandwidth: Up to 800 MHz (-3 dB point), supporting high-frequency analog video or RF switching as well as USB 2.0 data lines.

OFF Isolation/Crosstalk: Provides high isolation (data available in device tables) between channels and from input to output when off, leading to low interference between multiple signal paths.

ESD/EMC: 2000 V Human Body Model per JESD22 ensures reliability in exposed environments or during assembly.

Delay and Charge Injection: Fast switching, minimal break-before-make delay, and low charge injection reduce artifacts in sensitive analog or mixed-signal designs.

Engineers can leverage these attributes in applications such as mobile devices, multimedia routing, or test instrumentation, where bandwidth, isolation, and signal integrity are paramount.

Evaluation and Testing Techniques for STG3682QTR

The datasheet provides test circuits that outline industry-standard procedures for characterizing key parameters, including ON-resistance, bandwidth, leakage, crosstalk, and timing (turn-on, turn-off, break-before-make). These procedures help ensure that device performance matches specification during initial qualification or incoming component inspection. For example:

ON-Resistance: Measured using a current source with precise voltage detection across the switch.

Bandwidth and Crosstalk: Evaluated with network analyzers and signal generators to validate high-frequency response.

Break-Before-Make: Time delays characterized with oscilloscope monitoring of switchover events.

Designers integrating the STG3682QTR should review these circuits if further validation, characterization, or troubleshooting is required in their application context.

Physical and Packaging Details of STG3682QTR

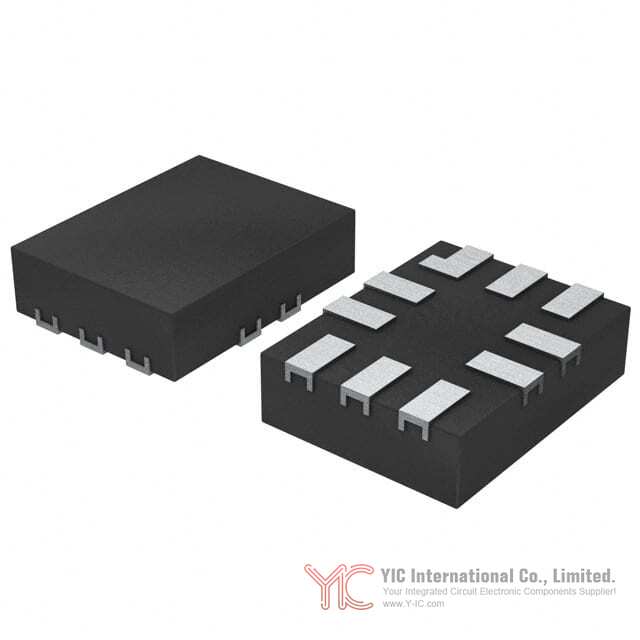

The STG3682QTR is available in a 10-lead QFN package measuring only 1.8 x 1.4 mm. It is RoHS-compliant (ECOPACK®), facilitating use in environmentally certified designs. The low-profile package is compatible with automated assembly, and ST provides detailed footprint and reflow information to guide PCB layout and soldering process. Attention to recommended footprint and proper handling of the exposed pad ensures electrical and mechanical reliability.

Alternative or Replacement Options for STG3682QTR

While the STG3682QTR offers a compelling feature set, engineers may consider alternative or equivalent dual SPDT analog switches for specific project needs:

Devices with similar bandwidth, voltage, and footprint from alternative manufacturers may serve as replacements if sourcing flexibility is required.

Key comparison points include ON-resistance, supply and logic voltage compatibility, ESD level, and mechanical package.

When evaluating alternatives, verify USB 2.0 data rate compliance, signal integrity parameters, and pin compatibility.

It is recommended to cross-reference datasheets, consult with vendors on drop-in alternatives, and, where possible, conduct head-to-head validation for critical circuit paths.

Conclusion

: Selecting the STG3682QTR for Modern Electronic Designs

The STG3682QTR by STMicroelectronics stands out as a premier dual SPDT analog switch for engineers focused on low-voltage, high-bandwidth, and low-power switching. Its robust electrical performance, compact package, and universal logic interface align well with portable, consumer, and high-speed data switching requirements. When selecting among analog switches for compact systems, careful review of ON-resistance, control logic compatibility, ESD resilience, and layout requirements is essential—and the STG3682QTR consistently meets the demands of contemporary electronic applications.

For engineers and procurement professionals, the STG3682QTR represents a solid investment in reliability and performance within the analog switch category.
