STMicroelectronics ST1S03PUR

Product Summary ST1S03PUR Buck Converter

The ST1S03PUR, designed by STMicroelectronics, is a compact, high-frequency, step-down DC-DC switching regulator. Tailored primarily for powering low-voltage digital cores in applications such as hard disk drives (HDD) and other environments where high current and thermal efficiency are critical, this device addresses the limitations of traditional linear regulators. By offering up to 1.5 A output current and adjustable output voltages starting from 0.8 V, the ST1S03PUR supports a wide range of digital and mixed-signal systems. Available in a thermally efficient DFN6D (3 x 3 mm) package, it is ideally suited for designs with strict PCB real estate and thermal requirements.

Main Features of the ST1S03PUR

The ST1S03PUR delivers a strong feature set distinguishing it from standard step-down solutions. Its current-mode PWM DC-DC converter architecture runs at a high switching frequency of 1.5 MHz, enabling the use of small surface-mount passive components—an essential consideration in miniaturized and power-dense assemblies. The integrated soft-start functionality (with a power-on delay in the 50–100 μs range) ensures controlled startup currents, contributing to system reliability. With a maximum quiescent current of 2.5 mA over the full temperature range, the device is efficient not only under load but also in stand-by scenarios.

A hallmark of the ST1S03PUR is its tight output voltage regulation, maintaining a ±2% DC tolerance. The low RDS(ON) power switch (maximum voltage drop of 350 mV at 750 mA switch current) supports higher overall conversion efficiency, typically above 70% across operating conditions. The device incorporates internal compensation, reducing the need for additional stability components and simplifying the BOM.

Comprehensive system-level protections are present, including thermal shutdown (triggering at 150°C junction temperature) and cycle-by-cycle current limiting. These features safeguard both the IC and downstream components during fault events such as short circuits or excessive loading.

Maximum Ratings and Thermal Management for the ST1S03PUR

Appropriate respect for absolute maximum ratings and thermal constraints is essential in high-current switching regulator applications. The ST1S03PUR supports an input voltage range from 3 V to 16 V—allowing it to operate from common 3.3 V, 5 V, and 12 V system rails—but should not be exposed to voltages exceeding the maximum recommended by the manufacturer. Functionality outside of this range is not guaranteed and may result in device damage. The DFN6D package’s exposed pad is designed to enhance thermal dissipation; however, PCB layout and via design play a significant role in achieving optimal thermals. The device is MSL 1 (unlimited floor life) and is RoHS3 compliant, making it suitable for use in environmentally sensitive and lead-free assemblies.

Electrical Specifications and Performance Metrics of the ST1S03PUR

The ST1S03PUR’s electrical performance reflects its suitability for modern digital supply requirements. Key parameters include: an adjustable output voltage set via an external resistor divider, a reference feedback voltage accuracy tailored for precision loads, and predictable line/load regulation across temperature. At a typical 5 V input with a recommended inductor and ceramic capacitors, the output ripple remains low, supporting noise-sensitive circuits.

Internally, the device’s startup and soft-start controls generate a voltage ramp ensuring monotonic and controlled output rise. Quiescent and standby currents are minimized, enhancing battery or energy efficiency in always-on applications.

Engineers should note the device’s operation in pulse-skipping mode under light loads—a behavior that maintains regulation at low output currents while minimizing switching losses.

Usage Recommendations for the ST1S03PUR

Optimizing the ST1S03PUR’s performance in real designs involves the careful selection of four external components: a Schottky diode, an inductor, and two low-ESR ceramic capacitors (preferably X5R or X7R type). Inductor selection should balance between efficiency (improved by larger values) and size/cost constraints (smaller values reduce footprint). Careful PCB layout is crucial: all external components should be placed as close as possible to the device to minimize trace inductance and EMI. The DFN package’s thermal pad must be properly soldered to a PCB heat-spreading zone to support maximum load currents without excessive temperature rise.

Output voltage is easily set using a resistor divider, calculated as:

$$ \mathsf{V}_{\mathsf{O}}=\mathsf{V}_{\mathsf{FB}}\left[1+\mathsf{R}1/\mathsf{R}2\right] $$

where $\mathsf{V}_{\mathsf{FB}}$ is the feedback reference voltage.

Protection mechanisms—thermal shutdown and cycle-by-cycle current limit—support robust system design, especially in environments susceptible to load faults or short circuits.

Common Applications and Implementation Examples of the ST1S03PUR

The ST1S03PUR is engineered for applications where space, power efficiency, and heat management are critical. Originally optimized for HDD core voltage rails, it also serves well in network equipment, FPGAs, microcontroller supplies, and other digital or mixed-signal loads demanding tight voltage regulation and efficient power delivery. In industrial and consumer electronics, the device appeals to engineers replacing bulky or thermally inefficient linear regulators, enabling reduced PCB heating and improved long-term reliability.

The high switching frequency, low output ripple, and ability to use small passives make the ST1S03PUR an apt choice for densely integrated designs such as SSD controllers, embedded systems, telecom cards, and point-of-load (POL) converters in larger DC bus architectures.

ST1S03PUR Real-World Performance Data

ST1S03PUR performance metrics are thoroughly characterized under varying load, line, and environmental scenarios. Efficiency typically exceeds 70%, with detailed curves for efficiency versus output current and temperature, confirming suitability for elevated ambient operation. Designers can reference load transient and startup performance graphs to assess suitability for rapid demand changes or sensitive sequencing requirements.

Input voltage tolerance, quiescent current versus input voltage, and output regulation over temperature are provided to enable robust, data-driven supply chain and design decisions. The device’s rapid startup and fast transient response are advantageous for power-up sequencing in complex boards.

Packaging Specifications and Environmental Standards for the ST1S03PUR

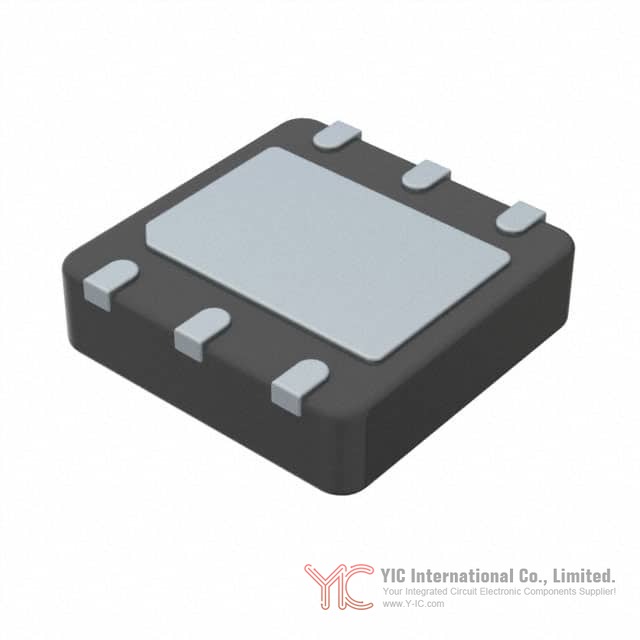

Mechanically, the ST1S03PUR adopts the industry-standard 6-lead DFN (3 x 3 mm) exposed pad package, facilitating both automated assembly and effective thermal management. Environmental compliance is fully supported—the device meets RoHS3 restrictions, is unaffected by REACH listing, and is offered as ECOPACK® grade, aligning with modern sustainability and legislative demands.

Alternative or Substitute Models Comparable to the ST1S03PUR

During design or procurement cycles, consideration may be given to alternative step-down regulators in cases of supply constraints, qualification requirements, or product platform migration. When seeking equivalents to the ST1S03PUR, engineers should prioritize parameters such as: 1.5 A output current capability, adjustable output voltage down to 0.8 V, high switching frequency (≥1 MHz), compatibility with small SMD ceramic capacitors, integrated protection features (OVP, thermal shutdown, cycle-by-cycle current limit), and compact packaging (DFN or similar). Close attention should be paid to pinout, compensation method, soft-start behavior, and efficiency curves to ensure true functional equivalence without redesign effort.

Conclusion

The ST1S03PUR by STMicroelectronics stands out as a forward-looking step-down switching regulator, optimized for challenging power-density and thermal requirements in modern electronic systems. Its combination of high efficiency, compact form factor, robust protection features, and straightforward application supports streamlined development and long-term reliability. For engineers and procurement professionals seeking a versatile and proven regulator for both new designs and cost/footprint reduction upgrades, the ST1S03PUR offers a well-documented and highly compatible solution with clear pathways to integration and broad application coverage.
