STMicroelectronics M24C04-RMC6TG

Introduction to STMicroelectronics M24C04 Series 4Kbit I²C EEPROM

The STMicroelectronics M24C04 series stands out as a high-reliability electrically erasable programmable read-only memory (EEPROM) solution with a 4Kbit (512 × 8 bit) organization and robust I²C serial interface. The series includes various part numbers such as M24C04-W, M24C04-R, and M24C04-F, all designed to address a wide spectrum of voltage, environmental, and packaging requirements. Recognized for its versatility, the M24C04 series efficiently serves configuration storage, data logging, and parameter saving functions in demanding automotive, industrial, consumer, and communications systems.

Main Attributes of the M24C04 Series

The M24C04 series integrates several features tailored for robust and flexible system integration. It is fully compatible with both standard (100 kHz) and fast (400 kHz) I²C bus modes, supporting seamless deployment in legacy and high-speed environments. The 16-byte page architecture optimizes write cycles by enabling both byte and page write operations (up to one page per cycle), contributing to reduced bus contention and improved throughput.

The series offers wide voltage support, with individual devices catering to specific needs:

M24C04-W: 2.5 V to 5.5 V supply

M24C04-R: 1.8 V to 5.5 V supply

M24C04-F: 1.7 V to 5.5 V (or down to 1.6 V under specific temperature conditions)

Protection features include a hardware write control (WC) pin for full memory write-protection, ensuring against unintentional data modifications—an essential function in mission-critical configurations. Enhanced ESD and latch-up immunity further increase operational robustness. The series supports an operating temperature range from -40°C to +85°C, with compliance to RoHS and Halogen-free environmental standards.

Functional Mechanism of the M24C04 Series EEPROM

The M24C04 series adheres to the I²C bus protocol, operating exclusively as a slave device on the bus. Communication initiates with standard I²C start and stop conditions. Addressing is facilitated via a 7-bit device select code followed by a read/write bit, ensuring compatibility with typical microcontroller architectures. In packages where chip enable (E1, E2) pins are available, these inputs affect the device address and must be properly tied in hardware design.

Write operations include both byte and page modes, with automatic internal address counter increments post-write. Critical for system reliability, write operations are disabled when the write control input (WC) is set high. To optimize throughput, the M24C04 series supports polling on acknowledge (ACK) to minimize unnecessary write-cycle wait times.

For reading, the device supports three methods: random address read (with a preceding dummy write for address loading), current address read (reads the byte at the current address counter), and sequential read (automatically increments and rolls over address). Notably, in DFN5 package variants, address counter roll-over is not supported past the last memory byte, which should be factored into software design.

Electrical Performance and Timing Specifications of the M24C04 Series

The electrical characteristics of the M24C04 series underpin its broad applicability:

Fast write times: Byte and page writes complete within 5 ms

High-speed I²C: Supports up to 400 kHz operation, compatible with industry-standard timing parameters

Wide supply support: Devices cover 1.7 to 5.5 V ranges, adapting to both 3.3 V and 5 V systems

Power management: Built-in power-on-reset (POR) circuitry ensures the device does not inadvertently respond to bus activity until supply voltages are within the valid range, safeguarding against brown-out conditions

Parameter specifications, such as input/output voltage levels, current consumption, and timing diagrams, conform to JEDEC and I²C standards, assuring straightforward integration for design engineers.

Mounting, Dimensions, and Packaging Variants of the M24C04 Series

System-level flexibility is enhanced by the M24C04 series’ extensive package availability. Options include:

SO8N (Small Outline, 8-pin) – 150 mil body width

TSSOP8 (Thin Shrink Small Outline, 8-pin) – 3 × 6.4 mm, 0.65 mm pitch

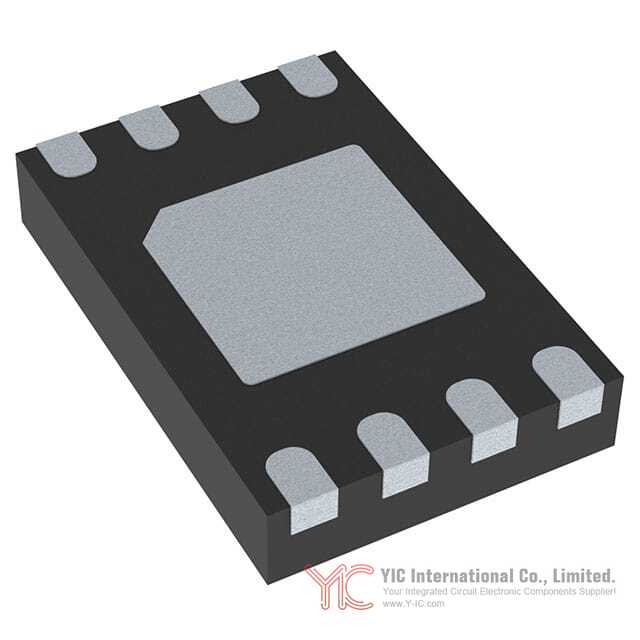

UFDFPN8 (Ultra-Thin Fine Pitch Dual Flat, 8-pin) – 2 × 3 mm, 0.5 mm pitch

UFDFPN5 (Ultra-Thin Fine Pitch Dual Flat, 5-pin) – 1.7 × 1.4 mm, streamlined for ultra-compact PCBs

Each package is RoHS-compliant and halogen-free, aligning with stringent environmental standards. Detailed recommended footprints and mechanical drawings are provided for PCB layout optimization—critical for engineers seeking to maximize board density.

Durability, Data Preservation, and Longevity of the M24C04 Series

For long-life and data-critical applications, the M24C04 series offers:

More than 4 million write cycles per byte, providing robust endurance for frequent parameter updates

Data retention over 200 years (based on characterization and qualification data), enabling secure storage of factory calibration, device identity, or settings for the lifetime of end-product deployment

Delivery in a default all-‘1’ (FFh) memory state, streamlining initial programming steps

Comprehensive ESD and latch-up protection ensure the device can withstand harsh handling and system-level transients without loss of data integrity.

Design Guidelines for M24C04 Series Integration

When designing with the M24C04 series, engineers should consider:

Proper matching of device voltage range (W, R, or F) to intended system I/O and power environment

Write control implementation for applications requiring field firmware update protection or secure storage

I²C address planning, particularly for DFN5 and other variations where certain enable pins are fixed or absent

Ensuring adequate power supply decoupling (typically 10 nF to 100 nF near the Vcc/Vss pins) to mitigate supply disturbances during EEPROM accesses

Adhering to recommended PCB footprints for espoused package to prevent mechanical and soldering issues

Reviewing read and write timing parameters in the context of system throughput requirements or timing-critical applications

Alternative or Substitute Models for the M24C04 Series

In procurement scenarios where the M24C04 series may require substitution—due to lead-time or allocation concerns—engineers should seek EEPROMs that offer:

4Kbit organization (512 × 8)

I²C bus compatibility (100/400 kHz)

Comparable voltage range (ideally 1.8 V or lower up to 5.5 V)

Write cycle and retention endurance matching or exceeding 4 million cycles and 200 years retention

Equivalent package offerings (SO8, TSSOP8, DFN8, DFN5) and pinouts

It is advisable to ensure the alternate EEPROM models are qualified for the same ambient temperature range and possess matching write-protect functionalities. Always review I²C device addressing to prevent bus contention and ensure drop-in compatibility.

Conclusion

: Selection Guidance for Engineers and Procurement

The STMicroelectronics M24C04 series provides a robust and highly integrable 4Kbit I²C EEPROM solution, combining excellent endurance, broad voltage operating range, and versatile packaging into a device tailored for both legacy and next-generation embedded systems. Thorough understanding of its bus interface, protection features, and environmental ratings enables engineers and procurement professionals to make informed choices for both new designs and BOM management. By aligning device selection with system-level requirements, teams can ensure reliable, secure, and long-lifecycle storage across a broad application landscape.
