LSM303AHTR by STMicroelectronics An Introduction to Its Features

The LSM303AHTR from STMicroelectronics is a highly integrated, ultra-compact electronic compass module, engineered to meet the evolving requirements of precision electronic navigation and motion sensing. Combining a three-axis digital linear accelerometer and a three-axis digital magnetometer within a single package, the LSM303AHTR offers a comprehensive six-degree-of-freedom (6DoF) motion and orientation sensing platform suited for a diverse array of application spaces.

Thanks to its system-in-package design, the LSM303AHTR reduces board footprint and simplifies PCB design for engineers, delivering high performance in an LGA-12 package measuring only 2.0 x 2.0 x 1.0 mm. Its robust architecture and flexible operational modes make it ideal for use in portable consumer electronics, intelligent handhelds, industrial tracking solutions, and advanced mobile robotics.

LSM303AHTR Packaging, Mounting Options, and Environmental Ratings

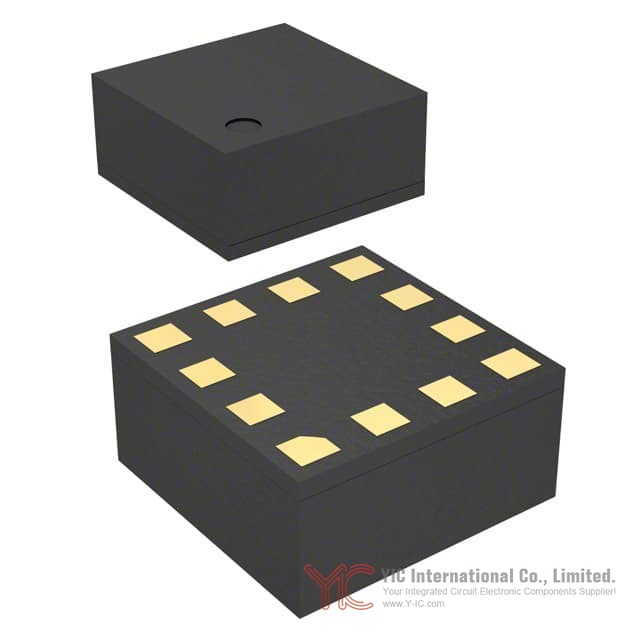

Occupying a minimal footprint, the LSM303AHTR leverages a 12-lead Land Grid Array (LGA) format optimized for surface-mount technology processes. This packaging topology minimizes mounting height and is well suited for high-density layouts, where PCB real estate is at a premium. The device is guaranteed for full operational integrity across a temperature range of -40 °C to +85 °C, ensuring reliability for both consumer and industrial-grade designs.

In terms of compliance and sustainability, the LSM303AHTR is fully RoHS3 and REACH compliant and classified as “Green,” supporting global initiatives for reduced environmental impact. The module carries a Moisture Sensitivity Level (MSL) rating of 3 (168 hours), which is critical information for assembly and reflow process planning.

Architecture and Integrated Functions of the LSM303AHTR Multi-Sensor

Central to the value of the LSM303AHTR is its fusion of two major sensing modalities: a digital three-axis accelerometer and a digital three-axis magnetometer. Both sensor types are implemented with digital output and can be operated independently or in concert, allowing for flexible power management and measurement scheduling.

The accelerometer offers user-selectable full scale ranges of ±2g, ±4g, ±8g, and ±16g, making it suitable for applications ranging from fine tilt detection to robust impact recognition. The magnetometer supports a dynamic range of ±50 gauss, enabling precise heading calculations and magnetic environment mapping. Advanced signal paths include integrated anti-aliasing filters for clean output, a 256-level FIFO buffer to reduce host processor overhead, and programmable interrupt generators for conditions such as free-fall, significant motion, or changes in the local magnetic field.

Self-test features are available for both accelerometer and magnetometer functions, facilitating in-circuit diagnostics and factory calibration, thereby improving system reliability and maintainability.

LSM303AHTR Sensor Operating Conditions and Customizable Performance

The LSM303AHTR allows engineers to precisely tailor its sensing performance depending on system requirements. Accelerometer output data rates are programmable from 1 Hz up to 6400 Hz, supporting both low-frequency human motion capture and high-frequency vibration analysis. Magnetometer data rates can be set from 10 Hz to 100 Hz, accommodating navigation and compass applications with variable update needs.

Power consumption is highly configurable, with multiple power and performance modes available for both sensing engines. Engineers can employ low-power modes for battery-constrained products or select higher performance operation for more demanding applications.

Temperature measurement is also integrated into the LSM303AHTR platform, providing an additional environmental data point that can be used for compensation or system-level monitoring.

LSM303AHTR Digital Communication Interfaces and Integration Solutions

For maximum system compatibility, the LSM303AHTR supports both I2C and SPI digital interfaces. These interfaces operate with a range of logic voltages (analog supply of 1.71 to 1.98 V) and support standard, fast, fast+ and high-speed I2C mode (100 kHz, 400 kHz, 1 MHz, and 3.4 MHz), as well as standard SPI protocol communications. This dual-interface capability ensures straightforward integration with a wide variety of microcontroller and embedded host architectures.

A comprehensive register map supports flexible configuration and data access. The FIFO buffer can be operated in various modes (bypass, FIFO, continuous, and other hybrid states), supporting both event-driven acquisition and bulk data capture.

Built-In Digital Capabilities and Advantages for Applications in LSM303AHTR

One of the major differentiators of the LSM303AHTR is the inclusion of advanced embedded digital functions. These include a high-accuracy step counter and step detector for pedometer and activity tracking applications, significant motion detection for wake-on-motion or intelligent power-saving, and tilt/orientation algorithms for context-aware user interfaces. The module’s programmable digital interrupt generation can be mapped to events such as free-fall, tap recognition, or specific magnetic field changes, removing the need for frequent host processor polling and further reducing overall system power budget.

This level of integration, combined with extensive digital configuration, results in reduced firmware development and system complexity for application engineers—allowing differentiated, feature-rich products to be brought to market with greater speed.

Alternative Models and Substitutes for LSM303AHTR

When qualifying or second-sourcing designs, engineers and purchasers may consider functionally similar eCompass modules or 6-axis sensor solutions from STMicroelectronics and other vendors. Within the STMicroelectronics portfolio, alternative products such as the LSM303 series (e.g., LSM303AGR) share much of the core philosophy, varying in terms of feature sets, noise performance, and package options.

For projects that may require extended temperature range or additional on-chip intelligence, alternate models like the LSM6DSO or LIS3MDL (magnetometer only) should also be evaluated. As always, the choice of a replacement or equivalent model should be based on a thorough analysis of system requirements, available resources, and compatibility with previously qualified electrical and mechanical interfaces.

Conclusion

: LSM303AHTR’s value for modern sensor applications

The LSM303AHTR from STMicroelectronics stands out as a compact, high-performance, low-power eCompass solution. Its fusion of a three-axis accelerometer, three-axis magnetometer, on-chip temperature sensor, and advanced digital functions addresses the most demanding requirements for portable measurement, electronic compassing, and intelligent motion-enabled systems. With robust digital interfaces, flexible power and data management, and proven environmental resilience, the LSM303AHTR delivers reliable, repeatable performance—empowering engineers and procurement specialists to create next-generation sensor-enabled products confidently and efficiently.
