STMicroelectronics L7805CP

Introduction to the STMicroelectronics L7805CP Linear Voltage Regulator

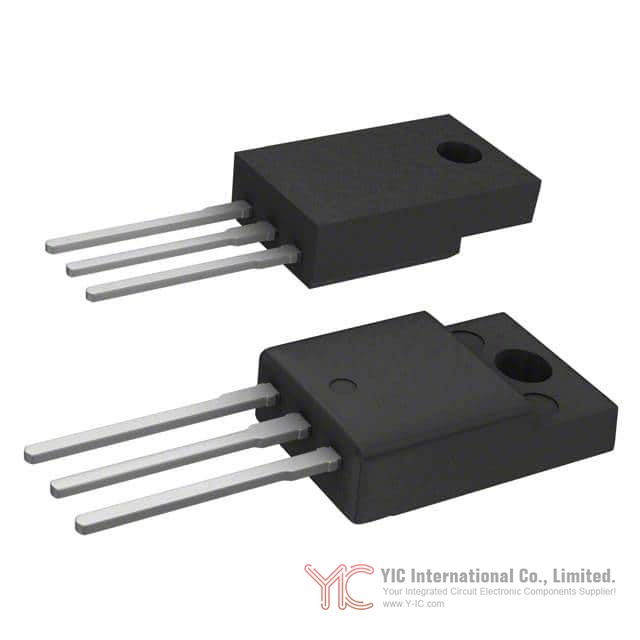

The STMicroelectronics L7805CP is a fixed positive linear voltage regulator designed to deliver a stable 5 V output up to 1.5 A, in a rugged TO-220FP package. Belonging to the established L78 series, the L7805CP targets a broad spectrum of applications where efficient, on-board voltage regulation is critical—spanning consumer electronics, industrial control systems, and embedded solutions. As a three-terminal device, it simplifies integration into new and legacy designs while providing dependable, local voltage regulation.

Main Characteristics and Functional Abilities of the L7805CP

The L7805CP incorporates a suite of features optimized for robustness and design flexibility:

Fixed 5 V output with ±2% tolerance (for A versions), supporting precise regulation needs.

Maximum output current up to 1.5 A (with suitable heat sinking), making it suitable for medium-power circuits.

Extensive protection mechanisms, including thermal overload shutdown, short circuit protection, and safe operating area (SOA) safeguards, which collectively enhance device survivability.

Internal current limiting provides fault resilience in demanding environments or during inadvertent load conditions.

Versatility in deployment: although available in various fixed output versions (5 V, 6 V, 8 V, etc.), the L7805CP can be configured for adjustable outputs and current regulation via external components.

Compliance with RoHS3 and REACH regulations, making it a viable option for environmentally conscious designs.

Comprehensive Electrical Specifications of the L7805CP

The L7805CP is engineered for predictable, stable performance across input voltages and environmental conditions. With a recommended input voltage typically around 10 V to 25 V, the device achieves precise 5 V regulation when loaded from 5 mA up to its maximum rated current. Key parameters include:

Line regulation and load regulation are tightly controlled, ensuring minimal drift even with fluctuating line or load conditions.

Typical quiescent current is low, optimizing the device for efficiency within linear regulator constraints.

Dropout voltage remains within standard expectations for TO-220FP-based regulators, with performance characterized over a junction temperature range of 0°C to 125°C.

Regulation performance and noise rejection are validated over a comprehensive range of frequencies and load steps.

Safety Features and Reliability Enhancements in the L7805CP

For design engineers, system reliability and fault tolerance are central concerns. The L7805CP delivers on these fronts with several integrated protections:

Thermal shut-down automatically disables output when die temperature exceeds safe limits, preventing thermal overstress.

Short circuit protection maintains device safety during output faults or accidental shorts by limiting current delivery well below the fatal threshold, until fault clearance.

SOA protections ensure the regulator continues to operate safely even under challenging transient conditions or atypical load profiles.

The internal architecture is designed to make the device virtually indestructible under normal operational stresses, provided correct external component choices and adequate thermal management are observed.

Common Uses and Application Examples of the L7805CP

The flexibility of the L7805CP makes it a strong candidate for diverse application needs:

On-board point-of-load regulation, minimizing voltage drop and noise pickup compared to centralized power supplies.

Embedded systems requiring a rock-solid 5 V rail for microcontrollers, logic, or analog circuitry.

Power supply modules benefiting from easily integrated, robust fixed-voltage regulation.

Design variants enable use as an adjustable regulator, current regulator, high-current or split rail solutions, and scenarios demanding increased output or specific voltage tracking functions.

The L7805CP can also be incorporated into circuits that require remote shutdown, temperature compensation, and light controllers.

Operational Performance and Design Considerations for the L7805CP

In practical engineering deployments, several performance characteristics of the L7805CP merit consideration:

Dropout voltage vs. junction temperature should be factored when operating near minimum input-output differentials, particularly for heat-sensitive environments.

Peak output current is closely related to input/output differential and device temperature, directly influenced by the installation’s thermal design and heat-sinking.

Load and line regulation values translate into stable output even during abrupt changes in supply or load—a key criterion for noise-sensitive analog or RF designs.

Supply voltage rejection (SVR) and output impedance offer predictable filtering performance, relevant for both digital and analog loads.

Transient response metrics, including load and line transients, allow the L7805CP to maintain tight output regulation even under rapid dynamic load events.

Available Packaging Styles and Physical Design Factors for the L7805CP

STMicroelectronics offers the L7805CP and related L78 series regulators in a variety of international-standard packages to suit different electrical, thermal, and assembly requirements:

TO-220FP (Fully Plastic): Electrically isolated tab for simplified heat sinking, suitable for compact or safety-critical layouts.

TO-220: Standard metal-tab package for efficient heat transfer.

DPAK and D²PAK: Surface mount options for compact, automated-assembly-friendly applications.

Mechanical data for all packages—such as pin pitch, dimensions, and recommended PCB footprints—should be checked against enclosure and PCB layout constraints.

ECOPACK-compliant versions are available, providing options for green manufacturing initiatives.

Alternative or Substitute Devices Comparable to the L7805CP

When considering supply continuity, cost optimization, or form-factor constraints, engineers may evaluate alternative linear regulators that match L7805CP’s key parameters:

Devices within the same L78 series from STMicroelectronics, such as L7806CP (6 V), L7808CP (8 V), and L7812CP (12 V), can be used directly for circuits requiring different standard voltages with similar electrical and thermal performance.

Depending on the required features—such as output current, protection level, and package—a range of standard positive linear voltage regulators from other reputable manufacturers may also serve as drop-in or pin-compatible replacements, provided output voltage, current capability, and protection features are verified.

When footprint, thermal, and regulatory needs align, alternative packaging (DPAK, D²PAK) within the L78 family facilitates board-level substitutions without PCB re-spin.

Conclusion

: Selecting L7805CP for robust, on-board voltage regulation

For engineers and procurement teams specifying voltage regulators, the L7805CP from STMicroelectronics stands out for its balance of precision, reliability, and comprehensive application support. Its strong protection suite, compliance with global standards, and broad range of package options make it a trusted choice for both new designs and maintenance of established products. By understanding its characteristics, capabilities, and integration options, design teams can confidently deploy the L7805CP for efficient, stable, and robust 5 V power regulation.
