Renesas Electronics America Inc R7F7015874AFP-C#BA3

Introduction to the R7F7015874AFP-C#BA3 (RH850/F1KH) Product

The R7F7015874AFP-C#BA3 is a high-performance microcontroller unit (MCU) from Renesas Electronics, part of the automotive-focused RH850/F1KH series. Engineered for reliability and efficiency, this 32-bit single-chip microcontroller integrates 2MB on-chip flash memory, is housed in a 176-pin LFQFP package, and utilizes a powerful G3KH CPU core architecture running at up to 120 MHz. With its focus on both high computational performance and low power consumption, the R7F7015874AFP-C#BA3 is well-suited for demanding body electronics, automotive gateways, and complex control applications such as HVAC, lighting, and Body Control Modules (BCM). An array of integrated peripherals and features, alongside low standby current options and advanced signal-handling capabilities, make this device a versatile solution for engineers seeking scalable and robust automotive MCU platforms.

Key Specifications of the R7F7015874AFP-C#BA3 (RH850/F1KH)

Central to the R7F7015874AFP-C#BA3 is its 32-bit G3KH CPU core, offering high processing performance for sophisticated automotive algorithms and communication stack handling. The MCU’s 2MB (2Mx8) flash memory supports rapid code execution and secure code storage, while integrated RAM delivers fast data access for real-time tasks. To maximize energy efficiency—a crucial requirement in automotive environments—the R7F7015874AFP-C#BA3 offers advanced power management, including the Low Power Sampler (LPS) and DeepSTOP features. LPS enables direct input signal polling (digital or analog) without waking the main CPU, and DeepSTOP effectively powers down most circuit blocks to further minimize current in standby or sleep modes.

Peripherals are extensive and include multiple general-purpose I/Os (GPIO), timers, communication interfaces (CAN FD, LIN, UART, I²C, FlexRay, and Ethernet AVB), and a full analog front-end. Special emphasis is given to the robustness of system control, including multi-level watchdogs, low-voltage detection, and reset logic, supporting the stringent requirements of functional safety in automobiles. The device’s flexible clocking, filter, and noise suppression features increase its suitability for harsh automotive and industrial environments.

Pin Layout and Functionality of R7F7015874AFP-C#BA3 (RH850/F1KH)

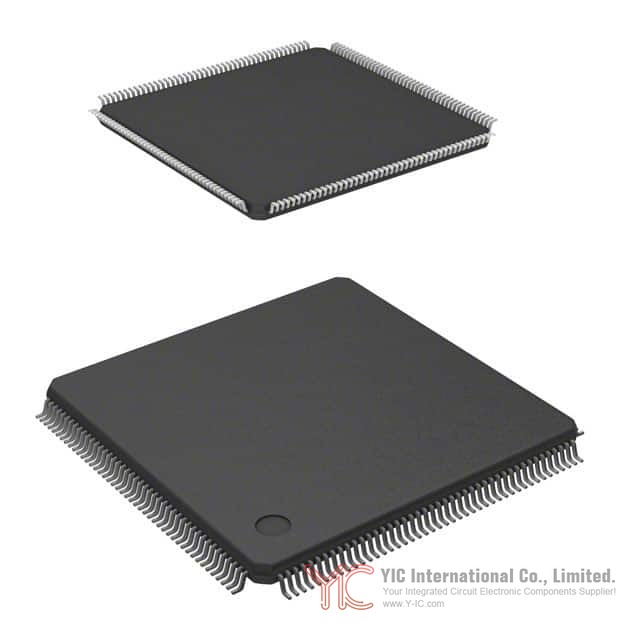

The R7F7015874AFP-C#BA3 in its 176-LFQFP package offers a wide range of pins grouped into configurable port groups, each managed by a dedicated port control register. The port system supports up to 16 pins per group, allowing tailored usage as input, output, or peripheral function channels. For maximum flexibility, each pin can be individually set for port mode (standard GPIO operation), alternative mode (functioning as a peripheral signal such as CAN, LIN, or CSIH/CSIG serial lines), or directly controlled by peripheral hardware.

Practical engineering scenarios require careful pin multiplexing: for example, an automotive gateway designer would optimize PCB routing and EMC performance by assigning neighboring pins from the same port group to a single bus or channel. The product documentation emphasizes that, when a communication channel such as CAN0 is mapped, both TX and RX signals should use pins from the same port group or adjacent groups for electrical consistency.

The MCU accommodates multi-function alternatives on individual pins (up to seven alternative functions per pin in hardware), ensuring that only one function is enabled per pin at a time. In applications such as HVAC node control, where a mix of analog sensing, communication, and digital control is needed, this approach allows high pin utilization without sacrificing system robustness. Care must be taken during configuration to prevent accidental simultaneous activation of multiple functions on the same physical signal line.

Input buffer configuration is equally granular, with software control over enabling, disabling, or selecting buffer characteristics for input- and output-capable pins. The inclusion of both pull-up and pull-down programmable resistors, drive strength adjustment, and open-drain or push-pull output modes allows adaptation to various signal interfaces and bus requirements. Special considerations are provided for unused pins, with best practices recommending their connection to power or ground via a resistor to avoid unpredictable system behavior.

Register Settings and Port Mapping in R7F7015874AFP-C#BA3 (RH850/F1KH)

The R7F7015874AFP-C#BA3 provides a comprehensive set of registers for software and hardware engineers to manage port states, function selection, and electrical parameters. The main port configuration process centers on several key registers:

Port Mode Control Register (PMCn): selects port vs. alternative mode for each pin in a group.

Port Mode Register (PMn): sets input or output direction when in GPIO or software-controlled alternative mode.

Port Function Control Register (PFCn/PFCEn/PFCAEn): selects which peripheral function is mapped to a pin (in multi-function setups).

Port IP Control Register (PIPCn): determines whether the I/O direction is controlled directly by peripheral hardware (crucial for high-speed or synchronous data lines).

Port Input Buffer Control Register (PIBCn): enables or disables the port pin input buffer; key when designing for low leakage or noise-sensitive inputs.

Drive strengths, pull-ups/downs, open-drain/push-pull modes, and associated registers (PDSCn, PUn, PDn, PODCn) allow further electrical tuning.

Bidirectional data lines—common in protocols like I²C or certain diagnostic interfaces—are supported through dedicated bidirection control registers (PBDCn), ensuring that the MCU can read back the state of an output pin if required. Registers for set, reset, and toggling port states (PSRn, PNOTn) facilitate atomic bit manipulation for real-time interrupt-driven applications.

Strong register protection and write-sequencing requirements reduce the possibility of inadvertent configuration changes—an important aspect in safety-critical automotive implementations. The structure supports both batch and individual port setup via flowcharts, with clear operational sequences recommended for each use case. For example, in power-stage drivers or sensor interfaces, adjusting drive strength and input filter characteristics can be performed through protected sequences, safeguarding the MCU against misconfiguration due to software faults or transient electromagnetic events.

Use Cases and Technical Implementation of R7F7015874AFP-C#BA3 (RH850/F1KH)

In real-world automotive and industrial design, the R7F7015874AFP-C#BA3 (RH850/F1KH) enables highly integrated solutions that balance flexibility and safety. A typical use case is a centralized automotive BCM, managing lighting, wipers, HVAC, and in-cabin networking via multiple bus interfaces. The engineer could leverage the device’s extensive multiplexed I/Os to connect to multiple sensors and actuators, optimize PCB real estate through alternative pin function mapping, and use the advanced power-down modes to minimize standby current during vehicle sleep cycles.

The granular port and buffer configuration (including programmable filters and open-drain settings) means the MCU can directly drive LEDs, MOSFETs, or read high-impedance sensor lines without the need for extensive external discretes. In systems with harsh EMC environments—common in automotive power distribution nodes—the flexibility to adjust drive strength and introduce noise filtering helps ensure signal integrity and reliability.

Additionally, the RH850/F1KH’s extensive register protection, write sequencing, and port group management simplify software task isolation, making the product suitable for projects requiring ASIL compliance or stringent functional safety measures. Designs can also benefit from the ability to re-map unused pins as extra diagnostics or future hardware expansion channels without moving to a larger package size.

Alternative or Substitute Models for R7F7015874AFP-C#BA3 (RH850/F1KH)

For engineers and procurement specialists considering alternatives to the R7F7015874AFP-C#BA3 (RH850/F1KH), Renesas provides a family of compatible MCUs within the RH850/F1KH and RH850/F1KM series, differentiated primarily by memory size, package type, and (for RH850/F1KH) core count. Options with different flash/RAM sizing, as well as variants in larger or smaller packages, offer flexibility to scale the solution up or down depending on the application requirements.

Other MCUs in the RH850 family, such as those in the F1KM series (including S4, S2, and S1 derivatives), share similar CPU cores and peripheral sets, enabling easier migration or cost optimization within the Renesas portfolio. The selection should be based on the desired memory size, pin count, peripheral needs, and automotive qualification demands.

When selecting a replacement model, engineers should always validate pin compatibility, available peripheral mappings, and register configuration compatibility to minimize re-engineering effort. Migration within the RH850/F1KH or RH850/F1KM lines is typically straightforward due to shared architectural building blocks and peripheral configuration paradigms.

Conclusion

The R7F7015874AFP-C#BA3 (RH850/F1KH) from Renesas Electronics exemplifies a modern, highly integrated automotive and industrial MCU platform, designed with the flexibility and configurability needed for next-generation body electronics, gateways, and smart actuator systems. Its robust set of port management registers, extensive peripheral pin-mapping options, advanced power control, and safety features allow hardware and software designers to meet stringent industry requirements while retaining the adaptability necessary for evolving specifications. By understanding the detailed port and register architecture, engineers can fully leverage the MCU’s strengths for optimal system-level integration and performance. For those seeking alternatives, the broader RH850/F1KH and RH850/F1KM family provides a highly compatible path for platform scaling or future-proofing existing designs.
