Renesas Electronics America Inc R5F1076CGSP#V0

Introduction to R5F1076CGSP#V0 RL78/I1A A Summary

The R5F1076CGSP#V0 is a high-efficiency 16-bit microcontroller from Renesas Electronics, belonging to the RL78/I1A series. Housed in a compact 20-pin LSSOP package, this MCU targets industrial and high-reliability embedded control applications, offering 32 KB of embedded Flash memory and a 4 KB data flash for non-volatile data management. The device is designed for use in environments ranging from -40°C to +125°C, making it suitable for inverter control, digital power control, and advanced lighting applications.

Main Functions and Architectural Overview of R5F1076CGSP#V0

At its core, the R5F1076CGSP#V0 leverages Renesas’s RL78 CPU with an efficient CISC Harvard architecture and three-stage pipeline. The CPU can operate at up to 32 MHz (derated to 20 MHz at extended temperatures) and achieves up to 41 DMIPS. Approximately 86% of instructions execute in one to two clock cycles, underpinning real-time responsiveness required in power-sensitive or high-speed designs.

Low power consumption is a standout attribute, with a typical operating current of just 156.25 μA/MHz. Various sleep modes—including Stop and Halt—enable deep reduction of power during idle system conditions, reaching currents as low as 0.23 μA (RAM retained).

The microcontroller features on-chip flash with 1 KB block protection, supporting in-application programming and secure boot. Data flash supports background operation, up to one million erase cycles, and wide voltage operation.

Internally, the RL78/I1A is supported by an on-chip high-speed oscillator (1–32 MHz selectable, ±1% accuracy), robust reset and supply management (including programmable low-voltage detection), and up to two independent DMA channels for efficient data transfer.

Pin Configuration, Physical Package, and Hardware Compatibility for R5F1076CGSP#V0

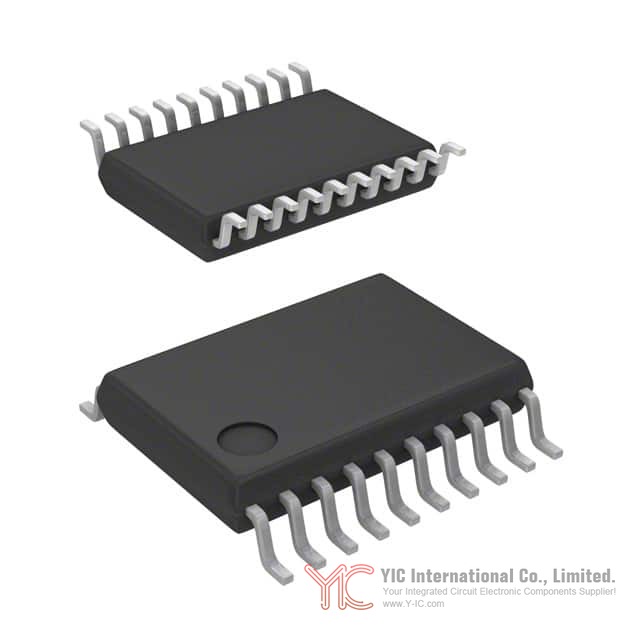

The R5F1076CGSP#V0 is supplied in a 20-pin plastic LSSOP (4.4 x 6.5 mm), emphasizing board space efficiency. Designers integrating this device should pay attention to the requirement of connecting the REGC pin to Vss through a decoupling capacitor (0.47 to 1.0 μF) for proper operation.

Pin functions can be dynamically assigned using peripheral I/O redirection control registers, providing flexibility for alternate pin functions. This is essential in compact designs, allowing peripheral pin functions to be remapped as required by the board layout.

System Block Diagram and Peripheral Functions of R5F1076CGSP#V0

The RL78/I1A MCU family, including the R5F1076CGSP#V0, is peripheral-rich to support complex, real-time control systems. It integrates multiple 16-bit timers (for PWM generation and advanced output modulation), including dedicated channels for high-resolution PWM with functions like smooth start, output gating, forced output stop for fault protection, and single/interleave Power Factor Correction (PFC).

Peripheral interfaces include:

UART: Up to 3 channels (7/8/9-bit), supporting DALI protocol on one channel.

SPI/CSI: 1 simplified SPI (master/slave) channel.

I²C: 1 master/slave channel with SMBus/PMBus compliance.

LIN: Up to 1 communication channel.

Analog subsystem highlights feature up to 11-channel, 8/10-bit ADCs with fast 2.125 μs conversion, three 8-bit DACs, eight comparators (with window and high-speed response), and a programmable gain amplifier (PGA) with selectable input channels and x4 to x32 gain. An integrated temperature sensor and internal voltage reference (1.45 V) facilitate precision analog measurements and self-diagnosis.

General purpose IOs are 5V-tolerant, designed for high-current (up to 8.5 mA per pin), and configurable for open-drain/pull-up support, enhancing compatibility with a range of sensors and actuators.

Electrical Characteristics and Environmental Requirements for R5F1076CGSP#V0

This MCU is robust for industrial deployment, sustaining operation across -40°C to +125°C and voltage supply from 2.7 V to 5.5 V. Key operational specifications include:

Absolute maximum voltage: 6.5 V (do not exceed to avoid permanent damage).

Maximum input/output currents should be kept below the figures outlined in device documentation, especially factoring in duty cycle effects (see relevant calculation methods in the datasheet).

High-speed main mode operation is up to 32 MHz (@ ≤105°C) or 20 MHz (@ ≤125°C).

On-chip oscillator frequencies are user-selectable, but, at ambient temperatures above 105°C, the maximum frequency is limited to 16 MHz.

The device’s internal RAM (2–4 KB, depending on configuration) retains contents in all modes, provided voltage is within the supported range. Flash memory endurance supports typical embedded update rates, with built-in programming features to facilitate robust field upgrades.

Analog Capabilities and Data Conversion Functions in R5F1076CGSP#V0

The R5F1076CGSP#V0’s analog subsystem is tailored for precise monitoring and control in embedded power and automation systems:

ADC: Up to 11 input channels (varies by package/pinout), 8and 10-bit resolution, multiple selectable reference sources, and typical integral linearity within ±1 LSB.

PGA: Programmable gain amplifier provides input gains of x4 to x32, supporting direct amplification of small signals prior to ADC conversion.

Comparators: Up to six channels with window comparator modes for event-triggered response—vital in fault and threshold monitoring scenarios.

DAC: Three integrated 8-bit digital-to-analog converters.

Temperature Sensor: On-chip analog temperature sensor provides real-time monitoring for thermal management or calibration correction.

Key considerations include proper pin multiplexing, reference configuration, and system grounding, as these impact the full-scale accuracy, speed, and noise performance of analog features.

Recommended Applications and Engineering Guidelines for R5F1076CGSP#V0

The R5F1076CGSP#V0 is ideal for:

Motor control/inverter drives, leveraging high-resolution and protected PWM outputs, fast analog comparators for safety cut-off, and high-speed ADC for current/voltage feedback.

Digital power management: Tight analog-to-digital integration and hardware safety features (clock/error detection, flash CRC, RAM parity, and illegal access alarms) enable robust system protection.

Lighting control: Dedicated DALI support, high-accuracy timers, and analog features simplify intelligent lighting designs.

General automation and sensor applications where small form factor, low power, integrated analog, and multi-protocol communication are critical.

When specifying this MCU, engineers should review the impact of high-temperature derating on clock frequency, ensure adequate decoupling, respect the limitations on I/O reconfiguration, and validate all analog signal chain requirements for their application.

Safety, Standards Compliance, and Dependability Considerations for R5F1076CGSP#V0

R5F1076CGSP#V0 is RoHS3 and REACH compliant, supporting extended industrial temperature classes, and is engineered to comply with IEC and UL 60730 in the context of system-level safety (including mechanisms like CRC validation, memory parity checks, hardware write protection, clock monitoring, and ADC self-testing).

The device leverages SuperFlash® technology for on-chip flash, offering industry-standard reliability, but designers should plan field updates and debug tool usage to avoid degrading memory endurance.

General MCU handling and board design best practices—including ESD management, proper unused pin treatment, and careful clock and power supply sequencing—apply for optimal reliability.

Comparable or Substitute Devices for RL78/I1A Series

When considering functionally compatible alternatives or evaluating family migration options within the RL78/I1A series, note the following variants, which differ primarily by I/O count and memory features:

R5F1076CMSP#V0/#X0: 20-pin package, similar feature set with memory and minor peripheral differences.

R5F107ACGSP#V0, R5F107AEGSP#V0: 30-pin package variants for expanded I/O and analog connectivity.

R5F107DEGSP#V0: 38-pin package for applications needing maximum I/O and analog/peripheral integration.

Always verify pin compatibility, available memory, and peripheral set prior to substituting for design reuse or cost-down engineering. Consult the latest Renesas documentation to cross-validate electrical parameters and legal notices for target application suitability.

Conclusion

The Renesas R5F1076CGSP#V0 RL78/I1A microcontroller offers a compelling blend of low-power operation, robust analog and timing capabilities, flexible communication options, and industrial-grade durability. Its architecture and peripheral set position it strongly for inverter, digital power, and advanced lighting controls. Proper package and pinout assignment, careful attention to memory and peripheral configuration, and ongoing compliance with Renesas-recommended handling practices will ensure reliable and efficient system design. For engineers and buyers, the RL78/I1A family—including the R5F1076CGSP#V0—represents a tested, scalable platform with compatibility across multiple package and memory options.
