Overview of the R5F104FCDFP#X0 RL78/G14 Microcontroller

The R5F104FCDFP#X0, manufactured by Renesas Electronics Corporation, is a 16-bit microcontroller within the RL78/G14 family, designed for both consumer and industrial applications. Packaged in a 44-lead LQFP (10x10 mm), this device integrates a powerful core, robust peripheral set, ultra-low-power consumption, and versatile on-chip memory, targeting applications where performance, energy efficiency, and connectivity are critical. This analysis provides engineers and component buyers with an in-depth look at the R5F104FCDFP#X0, supporting effective product evaluation and design integration.

Main Attributes of the R5F104FCDFP#X0 RL78/G14 Microcontroller

The R5F104FCDFP#X0 is engineered to balance computational throughput, power efficiency, and peripheral integration. Highlighted features include:

Ultra-low-power operation with current consumption as low as 66 μA/MHz during run and 0.60 μA in RTC/LVD-only operation.

Wide supply voltage operation range of 1.6 V to 5.5 V, extending usage from battery-powered designs to industrial controls.

Flash memory sizes from 16 KB up to 512 KB in the RL78/G14 series, with the R5F104FCDFP#X0 specifically offering 32 KB.

Multiple advanced low-power operating modes (HALT, STOP, SNOOZE).

Rich selection of timers, A/D and D/A converters, and comparators.

Enhanced serial communication interfaces: multiple simplified SPI (CSI), UART (LIN-bus capable), and I²C channels.

High-speed and accurate on-chip oscillators, supporting a system clock of up to 32 MHz (with oscillator options up to 64 MHz for peripheral use).

CPU Core Architecture of the RL78/G14 in R5F104FCDFP#X0

The R5F104FCDFP#X0 leverages the RL78 CISC core with a three-stage pipeline architecture, supporting efficient instruction execution and robust interrupt management:

Minimum instruction time: 0.03125 μs at 32 MHz (high-speed mode) or 30.5 μs at 32.768 kHz for ultra-low-power operation.

Hardware multiply/divide/multiply-accumulate instructions optimized for digital signal-type processing.

1 MB addressable space, with a robust general-purpose register set across four banks, supporting real-time embedded processing requirements.

Internal Memory and Data Storage in R5F104FCDFP#X0

A comprehensive embedded memory system makes the R5F104FCDFP#X0 suitable for code and data-rich applications:

Code flash: 32 KB, organized in 1 KB blocks, featuring security-protected erase/write operations.

Data flash: 4 KB and 8 KB options, enabling non-volatile data storage with up to 1,000,000 rewrite cycles (typical) at 1.8 V to 5.5 V.

On-chip RAM ranges up to 48 KB within the family; 2.5 KB minimum, sufficient for typical stack and data buffering needs.

Self-programming modes (flash library) supported for OTA firmware upgrades.

Power Control and Operational Modes for R5F104FCDFP#X0

The device offers flexible modes to match application power profiles:

Multiple sleep/stop modes with fast wake and preservation of specific peripheral activity, such as RTC operation during low-power states.

Integrated power-on-reset (POR) and low-voltage detection (LVD) circuits, with 14 selectable thresholds for system reliability.

The SNOOZE mode enables selective reactivation of peripherals from STOP, optimizing the balance of performance and power drain—crucial in portable and battery-backed products.

Peripheral Components and Interface Capabilities of R5F104FCDFP#X0

Engineers have access to a broad set of configurable I/O and feature-rich peripherals:

Serial channels: Up to 8 CSI (SPI-compatible) channels, up to 4 UART/LIN-capable channels, and 10 I²C channels (across RL78/G14 family).

Timer modules: Multiple 16-bit (TAU), real-time clock (with 99-year calendar and alarm), watchdog timer, and a 12-bit interval timer.

A/D converter: 8/10-bit resolution with up to 20 analog input channels, integrated reference, and internal temperature sensor.

D/A converter: 8-bit resolution, up to two analog output channels, real-time output possible.

Comparator: Up to two channels, supporting high/low speed and window comparison for power rail and signal monitoring.

I/O Capabilities: Up to 92 port pins (depending on package), software-selectable open-drain, TTL input buffer, and internal pull-up resistors. Ports support different potential interfacing, facilitating mixed-voltage system integration.

Package Details, Pin Configuration, and Physical Integration in R5F104FCDFP#X0

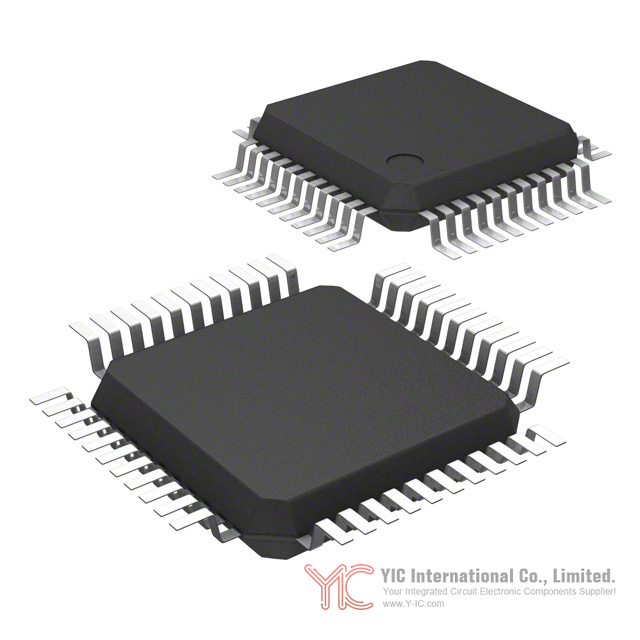

The R5F104FCDFP#X0 is presented in a 44-LQFP (10 x 10 mm, 0.8 mm pitch), meeting industry mounting standards:

Sufficient pin count to support rich I/O and multitasking applications.

Key power and ground routing guidelines per datasheet, including recommendations for noise isolation between VDD and EVDD, and REGC pin decoupling requirements (0.47–1 μF capacitor to Vss).

Assignable pin functions via peripheral I/O redirection registers (PIOR0, PIOR1), allowing flexible firmware-based routing of peripheral functions to physical I/O for PCB optimization.

Electrical Characteristics and Environmental Requirements of R5F104FCDFP#X0

Careful attention to electrical and timing requirements maximizes system stability and performance:

Absolute maximum ratings: Supply voltage up to 6.5 V, operational up to 5.5 V.

Standard operation temperature range: –40°C to +85°C (industrial 'D', consumer 'A') or extended up to +105°C with derating ('G' grade).

Power consumption is highly optimized: typical 66 μA/MHz in run mode; STOP mode with RTC/LVD active at 0.60 μA.

On-chip oscillators offer accuracy of ±1% from –20 to +85°C over 1.8 V to 5.5 V.

All interface pins have defined drive characteristics, with special consideration for open-drain (high-voltage tolerant up to 6 V on select lines).

Comprehensive AC/DC and analog specifications support robust mixed-signal and connectivity applications.

Engineering Applications and Practical Use Cases of R5F104FCDFP#X0

The R5F104FCDFP#X0 excels in energy- and code-constrained embedded systems, especially:

Battery-powered industrial sensors/process nodes where long-term RTC retention and precise analog measurement are essential.

Building automation modules requiring robust UART/I²C/SPI connectivity for sensor or actuator banks.

Home appliance and consumer electronics needing LIN bus for motor control, precise timer scheduling, and fault monitoring.

Mixed-voltage interface logic for applications combining older and newer subsystems, relying on flexible digital and analog peripheral multiplexing.

Alternative and Comparable Models to R5F104FCDFP#X0 RL78/G14

For engineers considering alternate sourcing or scalability, the RL78/G14 series offers multiple memory and pin count variants that maintain architecture and peripheral compatibility:

For 32KB flash/16-bit MCUs in the same family, alternatives with differing package size (e.g., 36-, 40-, 48-pin) can substitute the R5F104FCDFP#X0 where moderate pinout differences are permissible.

Devices such as R5F104GCDFP or R5F104HCDFP within the RL78/G14 family may suit higher memory or I/O count needs, maintaining software and peripheral set similarity for streamlined migration.

Selection should be driven by required flash size, RAM, package type, and ambient temperature range, all comprehensively presented in the RL78/G14 part selection matrix.

Conclusion

The R5F104FCDFP#X0 RL78/G14 microcontroller combines a state-of-the-art 16-bit core, comprehensive peripheral suite, and industry-leading low-power performance in a flexible LQFP package. Careful attention to detail in both digital and analog domains, strong safety and power management, and a family of compatible devices make the R5F104FCDFP#X0 a compelling solution for engineers developing robust, energy-sensitive embedded systems. Whether in cost-sensitive consumer products or demanding industrial environments, its blend of features ensures long-term design scalability and strong supply chain resilience through the broader Renesas RL78/G14 offerings.
