Power Integrations TOP104YAI

Product Summary TOP104YAI Three-Terminal Off-Line PWM Switch by Power Integrations

The TOP104YAI from Power Integrations is a versatile integrated circuit that combines an off-line PWM controller and a high-voltage power MOSFET into a standard three-pin TO-220 package. Designed for use in a wide range of switched-mode power supply topologies—including boost, buck, flyback, and forward converter designs—the TOP104YAI achieves a switching frequency of 100kHz and targets applications requiring 0 to 60W output for AC-to-DC conversion, or up to 110W in power factor correction (PFC) scenarios. This integration facilitates significant component count reduction, streamlines the design process, and boosts efficiency and reliability compared to traditional discrete or RCC-based solutions.

Main Features and Benefits of TOP104YAI

TOP104YAI distinguishes itself with a concentrated set of features that cater to cost, performance, and design flexibility in off-line power converters:

Integrated 350V low-capacitance power MOSFET and PWM controller, requiring just three external connections (DRAIN, CONTROL, and SOURCE).

Up to 90% conversion efficiency in flyback topologies, leveraging minimized conduction losses and optimized duty cycle management.

Built-in start-up circuitry and current limit for low DC start-up losses, with a CMOS gate driver that reduces internal power consumption to as low as 6mW.

Flexibility to support multiple converter topologies (buck, boost, flyback, forward) and operation in either continuous or discontinuous conduction modes.

Substantial reduction in external component count—reducing both cost and physical footprint—by integrating key functions such as oscillator, bandgap reference, and bias regulator.

EMI mitigation features, including source-connected tab and controlled MOSFET turn-on behavior.

Competitive positioning for applications above 5W as a replacement for bulkier linear designs.

Functional Design and Operating Principles of TOP104YAI

At the core of the TOP104YAI is a CMOS-based voltage mode PWM controller working in tandem with an integrated high-voltage N-channel power MOSFET. Key architectural elements include:

CONTROL Pin: Serves as the feedback entry point, bias supply node, and the connection for the required start-up/compensation capacitor. It manages device operation mode based on feedback current and voltage thresholds, dictating duty cycle and triggering auto-restart or shutdown states.

DRAIN Pin: Primary power switching interface to external circuitry and the current sense node.

SOURCE Pin: System ground and power return, essential for accurate Kelvin connections in sensitive feedback applications.

Start-up Bias: An internal high-voltage current source supplies the controller circuitry during the start-up phase by charging the CONTROL pin’s bypass capacitor.

Precision Bandgap Reference: Ensures stable operation across temperature variations by supplying accurate references for voltage, oscillator frequency, and current.

100kHz Oscillator and Gate Driver: Implements consistent PWM switching behavior, with a trimmed gate drive for precise timing and EMI reduction.

Duty Cycle Regulation: The duty cycle is inversely proportional to the CONTROL pin current, facilitating efficient voltage regulation via error signal feedback.

Protection Features, Safety, and Reliability of TOP104YAI

A standout aspect of the TOP104YAI is its robust set of integrated protection features designed to safeguard both the IC and the larger application:

Cycle-by-cycle current limiting implemented through MOSFET RDS(ON) sensing, utilizing a temperature-compensated comparator.

Leading-edge blanking to prevent false tripping of current limit circuits due to switch node transients.

Comprehensive auto-restart mechanism that limits power dissipation during sustained faults by invoking a low 5% duty cycle restart loop via an 8-count internal timer.

On-chip latching thermal shutdown that protects against overtemperature by halting switching until a power-up reset or a CONTROL pin reset event.

Output overvoltage latch triggering via a CONTROL pin high-current pulse, with rapid recovery by re-sequencing input power or CONTROL pin voltage.

Typical Application Schematics and Use Cases for TOP104YAI

The flexibility of the TOP104YAI is evident in its support for multiple power supply architectures:

Primary-side regulated flyback supplies, ideal for low-cost, isolated outputs where regulation is needed across a limited load range.

Optocoupler-based secondary regulation for improved output accuracy in applications such as set-top boxes, telecom equipment, or industrial controls.

Precision output regulation with feedback circuits employing shunt regulators (e.g., TL431) for high-power, tightly regulated designs up to 30W and beyond.

Discontinuous-mode boost PFC pre-regulators, achieving near-unity power factor and low THD, suitable for LED lighting ballasts or universal power supplies.

Real-world sample: A 5V, 5W auxiliary supply may employ minimal components with direct transformer feedback, whereas a 60W PFC stage leverages the device for high-voltage DC output with stringent power quality requirements.

Engineering Guidelines and Application Notes for TOP104YAI

To maximize performance and reliability in designs based on the TOP104YAI, engineers should focus on:

Maintaining very short and low-impedance connections to the SOURCE pin, especially for CONTROL pin bypass capacitors, to minimize ground bounce and noise.

Effective drain voltage clamping using Zener or TVS devices to suppress spikes and prevent device overstress during switch-off transients.

Avoiding hot-plugging the IC during testing, as uncontrolled capacitor surges may inadvertently trigger shutdown latches.

Bench evaluation procedures: Always power up CONTROL pin supply before DRAIN to ensure proper entry into the operating mode and to observe clean voltage waveforms.

Ensuring adequate minimum loading on outputs, where necessary, to prevent excessive voltage rise during light-load operation due to minimum ON-time constraints.

Accounting for longer auto-restart cycles at low input voltages and verifying bias capacitor selection accordingly.

Alternative or Substitute Models for TOP104YAI

Engineers considering alternatives to the TOP104YAI within Power Integrations’ product family can review other members of the TOPSwitch family:

TOP100, TOP101, TOP102, and TOP103: These models offer differing current limits and maximum output capabilities to better match specific power conversion requirements.

Selection is primarily based on output power, current limit, and application topology; care should be taken to ensure compatibility with the end design’s efficiency, size, and protection needs.

Package Details and Physical Specifications of TOP104YAI

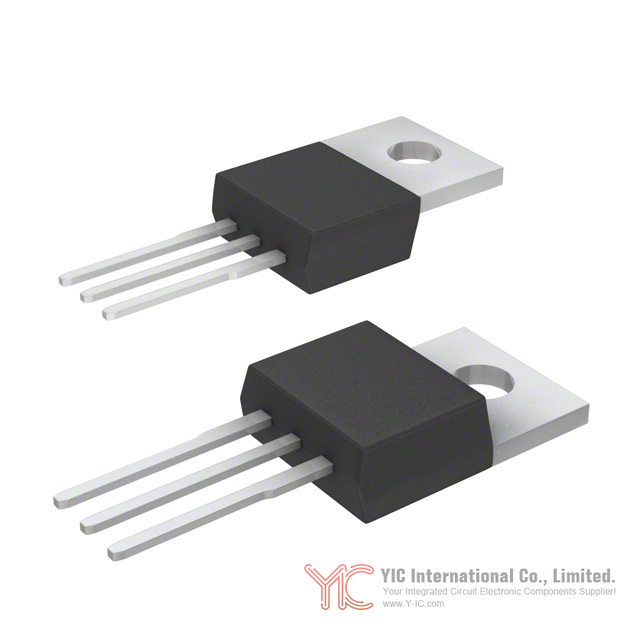

The TOP104YAI comes in a JEDEC-standard TO-220 3-pin (Y03A) package. All leads and the tab are solder-plated, with a 0.100-inch lead pitch and flange-mounted form for straightforward integration onto PCBs or heatsinks. The mechanical details conform to industry guidelines to ensure easy replacement and compatibility in existing layouts, maintaining robustness for both through-hole and socketed applications.

Conclusion

: Suitability of the TOP104YAI for Modern Power Supply Design

With its high level of integration, robust protection feature set, and support for a wide range of converter topologies, the TOP104YAI from Power Integrations delivers a compelling solution for designers seeking to develop compact, efficient, and ruggedized power supplies. The device’s streamlined pinout, high functional density, and proven reliability make it a prime candidate when moving from discrete switchers or when upgrading legacy designs to achieve better performance, reduced BOM cost, and faster time to market. For engineers and procurement professionals tasked with component selection, the TOP104YAI balances technical agility and economic value for present and next-generation power conversion projects.
