Power Integrations TNY263GN

Product Summary TNY263GN Power Integrations IC Offline Switch Flyback 8SMD

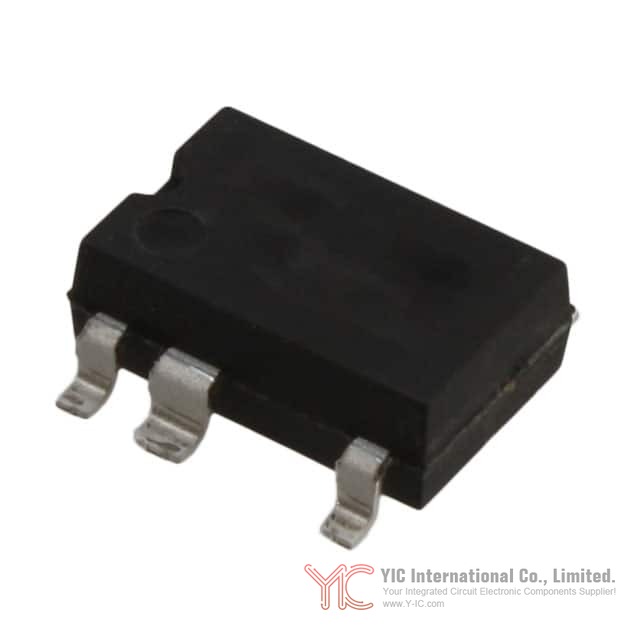

The TNY263GN from Power Integrations is a highly integrated off-line flyback switcher IC, offered in a compact SMD-8B package. Part of the TinySwitch-II (TNY263-268) family, the TNY263GN is tailored for low power, high efficiency switched-mode power supplies (SMPS), especially where cost, size, and energy efficiency are critical. Common applications include mobile chargers, PC and TV standby circuits, appliance controls, and network gear, benefitting from the device's small footprint and minimal external component requirements.

Operational Structure of TNY263GN Power Integrations IC Offline Switch Flyback 8SMD

At the core of the TNY263GN is the integration of a 700 V power MOSFET, an oscillator, current limit state machine, and protection features into a monolithic IC. The device leverages a simplified ON/OFF control mechanism rather than traditional pulse-width modulation (PWM), streamlining regulation in flyback topologies.

Key aspects of its functional architecture include:

Oscillator and Frequency Jittering: The internal oscillator operates at a nominal 132 kHz and employs frequency jitter (~8 kHz peak-to-peak at a 1 kHz modulation rate) to dramatically reduce EMI.

Auto-Restart and Protection: Fault conditions such as output short circuits or open loop are safely managed via a built-in auto-restart circuit, which alternates between operation and pause until normal conditions resume.

Enable/Undervoltage Pin (EN/UV): This dual-function pin controls operation and allows for programmable line undervoltage detection, preventing undesirable power cycles during input fluctuations.

BYPASS Pin Regulator: An internal 5.8 V regulator supplies the IC via a simple 0.1 μF external capacitor, while a 6.3 V shunt allows for very low standby consumption when powered externally.

Thermal and Current Protection: Integrated thermal shutdown (typically at 135°C with 70°C hysteresis) and precise current limiting ensure robust operation over a wide range of operating conditions.

Primary Technical Characteristics of TNY263GN Power Integrations IC Offline Switch Flyback 8SMD

Selection engineers reviewing the TNY263GN should pay close attention to its main technical metrics:

Maximum Drain Voltage: 700 V, allowing direct operation from universal mains supplies.

Typical Switching Frequency: 132 kHz, sized to enable compact transformer design.

No-Load Consumption: Less than 50 mW with bias winding; less than 250 mW without, at 265 VAC—surpassing global energy efficiency standards (CEC, Energy Star, EU).

Continuous Output Power: Suitable for low to medium power supplies, with power levels contingent on input voltage, enclosure type, and heat sinking.

Operating Junction Temperature: -40°C to 150°C.

Thermal Impedance: 70°C/W (SMD-8B package, 0.36 sq. in. copper area).

Reducing System Expenses and Enhancing Performance with TNY263GN Power Integrations IC Offline Switch Flyback 8SMD

The TNY263GN offers several features that translate directly into BOM cost savings and simplified design:

Component Count Reduction: By integrating multiple protection and control circuits—such as line undervoltage detection, auto-restart, and the high-voltage switch—external circuitry is minimized.

No Bias Winding Requirement: Direct startup and operation from the DRAIN pin eliminates the need for bias windings and associated components on the transformer.

Reduced EMI Filtering Requirements: Frequency jittering (~10 dB EMI reduction) often allows the use of simple, cost-effective input filters.

Audible Noise Suppression: Smart current limit reduction at low loads ensures transformer noise is virtually eliminated without exotic transformer designs.

No Optocoupler for Fault Protection: Auto-restart operation obviates the need for secondary feedback or extra optocouplers for open-loop/overload protection in many designs.

Usage Applications of TNY263GN Power Integrations IC Offline Switch Flyback 8SMD

The TNY263GN’s characteristics make it attractive across a range of compact, low power SMPS applications:

Mobile Device Chargers: Delivers constant voltage/constant current (CV/CC) charging with minimal component count, facilitating cost-effective universal adapters.

PC/TV Standby Power Supplies: Enables efficiency and reliability in always-on auxiliary circuits, even with tough hold-up and undervoltage requirements.

Appliance and Industrial Standby: Aids energy regulatory compliance and product miniaturization in white goods, network endpoints, and more.

Networking/Telecom Gear: Low quiescent consumption and robust protection circuits support reliable operation in ISDN, DSL, or home automation equipment.

Real-world designs can leverage TNY263GN’s ability to start up from high voltage rails, tightly regulate output, and protect against overloads, all in densely packed or thermally challenging environments.

Design Principles and Layout Advice for TNY263GN Power Integrations IC Offline Switch Flyback 8SMD

Engineers can optimize TNY263GN-based designs for robustness and performance by adhering to several layout and component considerations:

Grounding and Layout: Consolidate BYPASS pin capacitor and input filter capacitor grounds at the SOURCE pin; minimize the area of the primary loop; use ample copper under the IC for both grounding and heat dissipation.

Clamping and Protection: Employ a primary clamp (RCD, Zener, or combination) placed close to the DRAIN and transformer, minimizing voltage overshoot and noise.

Optocoupler Connections: Minimize the trace length between EN/UV and optocoupler; avoid proximity to the DRAIN to reduce noise coupling.

Filter Placement: Y-capacitor should connect from bulk capacitor positive to secondary return for maximum EMI suppression; input/output filter capacitors should have constrained traces to localize high frequency currents.

Undervoltage Detect Resistor: Mount close to EN/UV; observe voltage ratings for series resistors per DC input voltage.

Thermal Considerations: Sufficient copper under both the TNY263GN and output diode ensures reliability at higher power dissipation levels.

Alternative or Substitute Models for TNY263GN Power Integrations IC Offline Switch Flyback 8SMD

When considering alternatives or upgrades within the same product series, engineers may evaluate other members of the TinySwitch-II family:

TNY264GN / TNY265GN / TNY266GN / TNY267GN / TNY268GN: These variants offer incrementally higher output power capabilities and may be selected to match greater output power or efficiency requirements while preserving identical pin-compatibility and control architecture.

When replacing or upgrading from first-generation TinySwitch devices (e.g., TNY254), the TinySwitch-II series, including TNY263GN, delivers improved EMI, reduced no-load power, and enhanced protection features.

Always consider physical package compatibility and system output requirements when selecting a substitute device.

Conclusion

The TNY263GN Power Integrations IC OFFLINE SWITCH FLYBACK 8SMD stands out as a cost-effective, high efficiency solution for compact, low-to-medium power flyback converters across consumer, computing, and industrial markets. Its integrated features reduce design complexity, lower BOM costs, and help ensure global regulatory compliance. For engineers and procurement professionals seeking reliable, space-saving, and regulatory-friendly switcher ICs, the TNY263GN and its TinySwitch-II siblings remain compelling options for modern power supply designs.
