Power Integrations LNK605PG

LNK605PG Summary

The LNK605PG from Power Integrations is a highly integrated offline switcher IC designed for energy-efficient, accurate constant voltage (CV) and constant current (CC) regulation in low-power flyback converter applications. As a member of the LinkSwitch-II family (LNK603-606/613-616), this device is specifically intended to minimize design complexity in power supplies for chargers, adapters, and LED drivers, offering up to 85 kHz programmable switching frequency and robust protection features. The LNK605PG solution eliminates the need for optocouplers and secondary control circuitry, thereby reducing component count, cost, and potential points of failure within the end application.

Main Attributes and Performance of the LNK605PG

The LNK605PG offers a suite of features targeted at efficiency, reliability, and ease of implementation:

Primary-side regulation eliminates optocouplers and related compensation circuits for both CV and CC modes.

Proprietary parameter trimming achieves tight output tolerances – ±5% for voltage and ±10% for current (across line, component, and temperature variations in typical designs).

Automatic compensation for transformer inductance, input voltage, and external temperature ensures stable performance over a range of operating conditions.

Frequency jittering technology significantly reduces EMI filter requirements and costs.

Programmable switching frequency (up to 85 kHz) enables transformer size optimization to suit diverse power levels.

Integrated auto-restart and hysteretic thermal shutdown mechanisms protect against output short circuits, open-loop, and over-temperature conditions, increasing supply resilience and system safety.

ON/OFF control provides constant efficiency down to light and no-load, achieving <30 mW standby at 230 VAC (with bias winding).

Fully compliant with global energy efficiency and environmental standards including RoHS and halogen-free requirements.

No current sense resistors are needed, maximizing efficiency and minimizing conduction losses.

Enhanced Functional Design of the LNK605PG

At the heart of the LNK605PG is a monolithic IC combining a 700 V power MOSFET with an advanced controller, forming a complete flyback power stage on a single die. Core architectural elements include:

Oscillator and ON/OFF state machine for precise CV mode regulation.

Frequency control block modulates switching frequency to maintain constant current in CC mode.

Inductance correction circuit actively compensates for transformer tolerance, ensuring output stability.

Cycle-by-cycle current limit with leading-edge blanking to filter artifacts and minimize nuisance trips during switching transitions.

Hysteretic thermal shutdown with automatic recovery to safeguard long-term device reliability.

Self-bias high-voltage switched current source minimizing external components.

Main Uses for the LNK605PG

The LNK605PG is ideally suited for compact, reliable power supplies in applications such as:

Phone, PDA, and portable audio device chargers

Standalone and embedded AC-DC adapters

Energy-efficient LED drivers

Low-wattage flyback converters requiring precise CV and/or CC regulation

The device’s architecture and feature set make it especially advantageous in cost-sensitive, highly miniaturized designs that must comply with strict energy conservation standards such as CEC and ENERGY STAR.

LNK605PG Pin Layout and Packaging Information

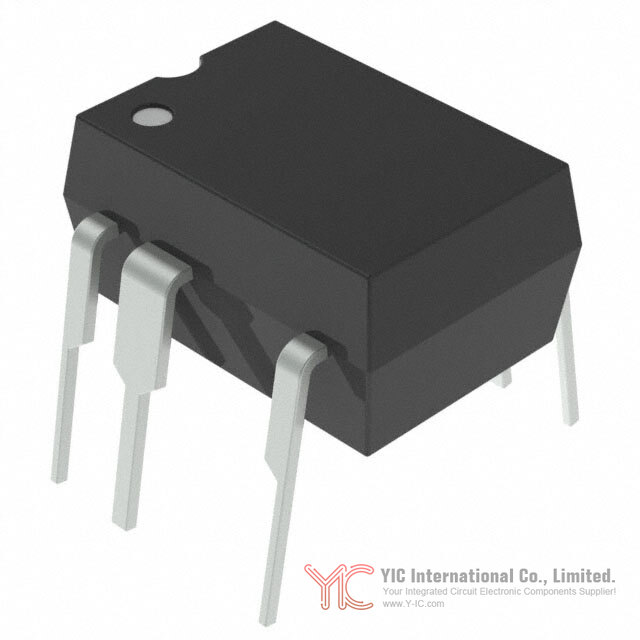

The LNK605PG is available in an 8-pin DIP-8C (P Package), with alternative options in SMD-8C and SO-8C footprints for space-constrained or automated assembly environments. The pinout is as follows:

DRAIN (D) – Power MOSFET drain and high-voltage input

BYPASS/MULTI-FUNCTIONAL PROGRAMMABLE (BP/M) – External bypass capacitor input and feature select (for certain variants)

FEEDBACK (FB) – Input for primary-side output sensing and regulation

SOURCE (S) – Return for power and control; forms heat dissipation path

The omission of Pin 3 is consistent with the standard power package convention, optimizing creepage and clearance distances for high-voltage operation. The package layout simplifies PCB integration and efficient heat dissipation via the SOURCE pin.

Standard Application Schematic LNK605PG in Flyback Converter Designs

A typical LNK605PG implementation follows a primary-side regulated flyback topology, supporting wide AC input range and high-frequency operation. The design includes:

Input pi-filter (inductors and capacitors) for optimal EMI attenuation and input transient handling.

Integrated startup and steady-state biasing, with the option to add a bias winding for minimizing standby consumption and maximizing light-load efficiency.

Output rectification via Schottky diodes for heightened efficiency, or standard diodes in cost-driven applications.

Output CV/CC regulation accomplished solely on the primary side using feedback resistors connected to the FB pin, substantially simplifying layout and improving reliability.

This architecture meets stringent output ripple, efficiency, and safety requirements mandated by modern adapter, charger, and consumer electronics standards.

Essential Design and Usage Guidelines for the LNK605PG

Effective deployment of the LNK605PG demands attention to several layout and thermal best practices:

Single-point (Kelvin) grounding at the input filter’s negative terminal for both SOURCE and bias winding returns enhances EMC immunity and transient response.

Minimize the area of high-frequency switching and analog loop traces, especially around feedback and bypass components, to suppress EMI and avoid unwanted coupling.

Adequate copper area under the SOURCE pins provides the necessary heat sinking; as a guideline, 10% of the output power will be dissipated by the switcher IC.

Implement electrostatic discharge (ESD) spark gap features on the PCB to improve system robustness, especially in harsh or unshielded installations.

Drain clamp design should be tuned to minimize high-frequency ringing and undershoot, reducing impact on regulation precision.

When utilizing output cable compensation (supported in LNK61x series only), the BYPASS pin capacitor (1 µF or 10 µF) selects the compensation level and must be chosen with attention to dielectric type, voltage rating, and physical placement.

Thermal and Electrical Specifications of the LNK605PG

The LNK605PG features robust electrical ratings and thermal performance that enable its use in demanding operating conditions:

Absolute maximum DRAIN voltage: -0.3 V to 700 V

Peak DRAIN current: up to 504 mA (750 mA pulsed with voltage constraint)

FEEDBACK and BYPASS pin voltages: -0.3 V to 9 V

Storage temperature: -65 °C to 150 °C; Operating junction: -40 °C to 150 °C

Thermal resistance (P Package): Junction-to-ambient (θJA) 70–60 °C/W, Junction-to-case (θJC) 11 °C/W

Tight CV/CC regulation across typical operating junction temperature ranges (0–100 °C) and board-mount scenarios (<90 °C at SOURCE recommended for best current accuracy)

Low OFF-state leakage (for high reliability in standby and shutdown)

To assure compliance with these values, engineers are strongly recommended to verify layout and thermal management under worst-case conditions during design validation.

Alternative or Substitute Models for the LNK605PG

For engineers considering alternatives or drop-in replacements, several models within the Power Integrations LinkSwitch-II family are viable, differentiated by current capability and feature set:

LNK603PG, LNK604PG, LNK606PG: Offer varying maximum output powers and similar flyback topologies with the core CV/CC regulation.

LNK615PG, LNK616PG: Enhanced versions with higher programmable current levels, suitable for applications requiring greater peak load.

For cable voltage drop compensation, the LNK613-616 (LNK61x) series should be selected, as the LNK60x devices (including LNK605PG) do not provide this feature.

When selecting replacements, attention must be paid to the variant’s peak current rating, compensation features, and package to ensure compatibility with the existing design constraints.

Conclusion

The LNK605PG from Power Integrations establishes a high standard for single-IC flyback switchers in offline low-power applications, delivering a combination of tight CV/CC regulation, high integration, energy efficiency, and robust protection. Its elimination of secondary-side feedback and discrete controller components enables streamlined, reliable designs that comply with the most stringent international standards. By understanding the device’s architecture, key features, optimal layout practices, and available variants, engineers and procurement personnel can confidently specify the LNK605PG or its sisters for demanding charger, adapter, and auxiliary power applications.
