Overview of the TQ2SA-5V Relay from Panasonic Electric Works

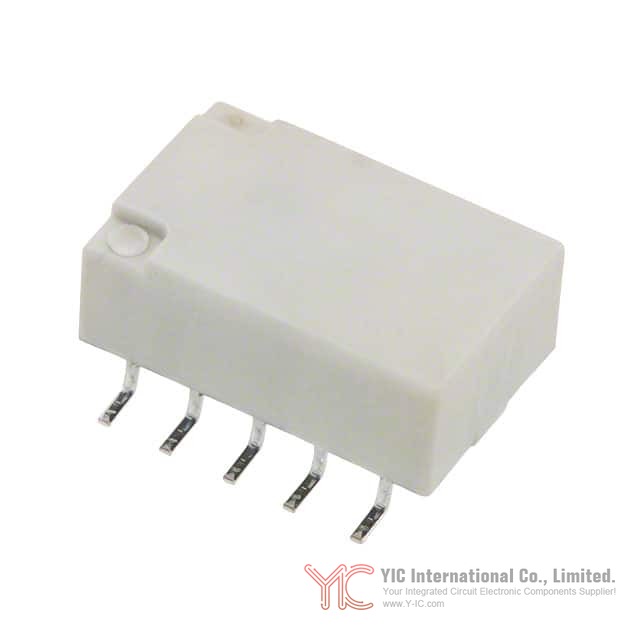

The TQ2SA-5V from Panasonic Electric Works is a signal relay specifically designed for telecom and industrial applications requiring a compact footprint and dependable switching performance. As a member of the TQ RELAYS series, this model offers double-pole double-throw (DPDT) functionality with a 2 ampere maximum switching current. Optimized for surface-mount integration, the TQ2SA-5V ensures reliable operation in a sealed, flat package with a thickness of only 5 mm. Telecommunication networks, measurement instrumentation, office automation devices, and various industrial machines commonly utilize the TQ2SA-5V to provide robust signal routing in environments that demand both space savings and electrical reliability.

Key Attributes of the Panasonic Electric Works TQ2SA-5V Series

Key distinguishing features of the TQ2SA-5V include its sealed construction, ensuring protection from environmental contaminants, and compliance with major telecom and industry specifications. The relay conforms to FCC Part 68, providing surge withstand voltage up to 1,500 V between open contacts. Multiple terminal options are available, such as standard and self-clinching PC board terminals as well as surface-mount terminals that meet JIS C0806 standards. Moreover, make-before-break (M.B.B.) contact variants are available to suit applications requiring uninterrupted signal integrity during contact transitions.

Configuration Options and Application Areas for TQ2SA-5V by Panasonic Electric Works

Product engineers can select from a variety of contact arrangements, terminal shapes, and coil operating functions within the TQ2SA-5V portfolio. These include single side stable, 1 coil latching, and 2 coil latching types, allowing for flexibility in circuit design and energy conservation strategies. Rated coil voltages span 1.5 V to 48 V DC, with the 5 V version optimally matched to telecom device standards. Beyond telecom infrastructure, typical scenarios include deployment in telephone exchanges, OA (office automation) equipment, and industrial control panels where board density and signal reliability are crucial design considerations.

Technical Details and Performance Metrics of TQ2SA-5V Panasonic Electric Works

Engineers evaluating the TQ2SA-5V will find performance parameters confirming its suitability for precise and durable switching tasks. Operate and release voltages exhibit minimal variance under controlled mounting and ambient temperature conditions, with a recommended operational range within ±5% of the rated coil voltage. Electrical life tests (e.g., 2 A 30 V DC resistive load at 20 cycles per minute) demonstrate robust endurance in demanding duty cycles. The sealed case construction supports extended mechanical life, while switching curves, coil temperature rise data, and high-frequency isolation figures are available for detailed design analysis. When deployed in micro-load analog circuits, designers should validate switching at the lowest voltage/currents with real-life loads, as performance may be influenced by frequency and environmental factors.

Size Specifications and Installation Instructions for TQ2SA-5V Panasonic Electric Works

The TQ2SA-5V features a compact, flat profile (height: 5 mm), optimized for high-density surface-mount PCB layouts. Detailed CAD data and recommended board pattern layouts are accessible to facilitate precise engineering integration. Design tolerances for the terminals and mounting footprint should adhere to ±0.3 mm for best results. When employing automatic insertion machinery, engineers must calibrate pick-up pressures and contact points as specified to maintain internal relay integrity. Both tube and tape/reel packing styles are engineered to preserve device orientation and functionality during assembly.

Guidelines for Soldering, Cleaning, and Packaging of TQ2SA-5V Panasonic Electric Works

The relay’s sealed design supports cleaning by immersion, using pure water or alcohol-based solvents at temperatures below 40°C. Ultrasonic cleaning is not advised, as it may damage internal contacts. For soldering surface-mount terminals, IRS (infrared reflow soldering) is recommended, with strict adherence to specified temperature profiles (up to 250°C, with optimal dwell times) to avoid thermal stress and preserve hermeticity. The surface-mount version is supplied in moisture-proof reel packaging with humidity indicators and silica gel; relays should be mounted within 72 hours of opening the pack, or baked when exposed to excessive humidity in accordance with guidelines to avoid case expansion or seal breakage.

Safety Approvals and Regulatory Compliance for TQ2SA-5V Panasonic Electric Works

The TQ2SA-5V relay fulfills UL/C-UL and CSA safety certifications, qualifying both its PC board and surface-mount terminal variants for use in regulated environments. These recognitions underscore its conformance to stringent operational and material standards for industry safety and reliability.

Operational and Environmental Recommendations for TQ2SA-5V Panasonic Electric Works

For optimal relay performance over its lifetime, designers must observe strict environmental guidelines. Storage and operation should be within -40 to 70°C and relative humidity between 5-85% RH, under atmospheric pressure ranging from 86 to 106 kPa. Moisture, condensation, and the presence of icing should be avoided, as these conditions can degrade insulation or trigger mechanical failures. Additionally, the proximity of high-temperature components or silicone-based substances must be controlled to prevent chemical ingress or contact film formation. Long-term current-carrying applications should utilize latching relays or appropriate circuit failsafes to mitigate contact degradation.

Alternative or Replacement Options for the TQ2SA-5V Panasonic Electric Works

When considering alternatives to TQ2SA-5V, engineers may evaluate other relays from the Panasonic TQ series, such as the TQ2-12V or TQ2SA-12V, which offer similar DPDT architectures with variations in coil voltage and mounting method. For analog signal switching at ultra-low levels, AgPd contact types in the TX or TX-S series are recommended. Selection should be aligned with the required coil voltage, form factor, and application-specific reliability needs.

Conclusion

Panasonic Electric Works' TQ2SA-5V relay stands out as a compact, surface-mount DPDT solution tailored for telecom and industrial use where signal reliability and board space efficiency are paramount. Its sealed construction, extensive safety certifications, and broad configurability make it an excellent choice for modern electronic system designs. Compliance with environmental and usage recommendations ensures lasting field performance, while the availability of alternate models aids procurement and engineers in maintaining design flexibility for future platforms.
