Panasonic Electric Works DSP1A-DC24V

DSP1A-DC24V Power Relay Summary and Introduction

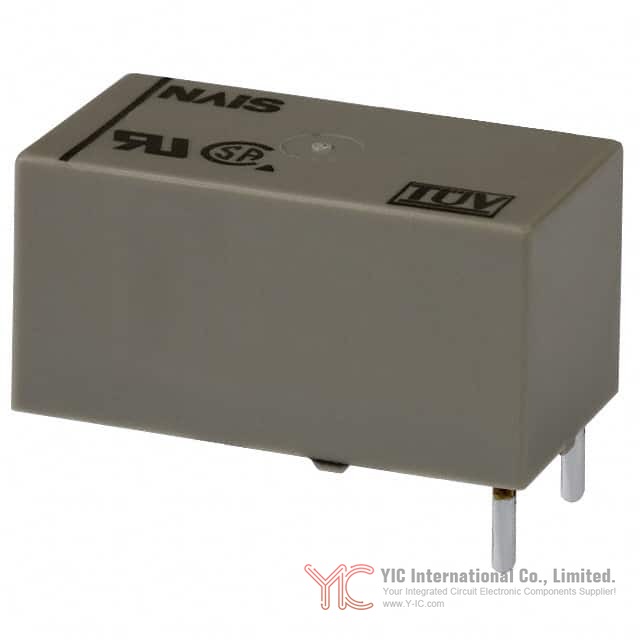

The Panasonic Electric Works DSP1A-DC24V is a general-purpose, single-pole single-throw normally open (SPST-NO) power relay designed for through-hole mounting and optimized for demanding applications in industrial, commercial, and measurement systems. Engineered within the renowned DS Power Relays family, it features a 24VDC coil and is rated to switch up to 8A for AC loads and 5A for DC loads. Its robust design and compact footprint make it suitable for space-constrained equipment requiring high reliability and consistent performance.

Main Attributes of the DSP1A-DC24V Power Relay

The DSP1A-DC24V offers several core strengths aligned with modern electronic equipment requirements:

Compact dimensions (11 mm width x 20.2 mm length x 10.5 mm height) allow for high-density PCB layouts.

Sealed construction delivers enhanced protection against environmental contaminants, increasing reliability and permitting cleaning processes.

Exceptional surge withstand voltage of 5,000 V, safeguarding circuits during transient conditions.

Multiple variants available, including latching types and a range of contact forms (1 Form A, 1 Form A 1 Form B, 2 Form A), allowing engineers to select the optimal fit for application needs.

Broad application support, including compatibility with PC board sockets for streamlined maintenance and module replacement.

Technical Specifications Electrical and Mechanical Data for DSP1A-DC24V

The relay supports the following electrical and mechanical parameters:

Contact rating up to 8A for AC loads (with appropriate model-specific limitations for DC), ensuring versatility for various power applications.

Coil voltage: 24VDC, with a recommended usage tolerance of ±5% to account for variations in ambient conditions and mounting.

Latching (both 1-coil and 2-coil) and non-latching (single side stable) models available, optimizing hold power and operational efficiency based on usage scenarios.

High switching capacity and robust expected electrical and mechanical life, substantiated by switching life and temperature characteristics tested on reference samples.

Contact Configurations and Model Options in the DSP1A Series

The DSP1A-DC24V is one member of a broader DSP1A relay lineup, which features a diverse array of configurations to accommodate varying circuit requirements:

1 Form A (SPST-NO): Single-pole, normally open, supporting high current switching.

1 Form A 1 Form B: Offers both normally open and normally closed contacts within a single compact design; attention is required to avoid scenarios where NO and NC could be simultaneously closed during transition phases.

2 Form A: Dual normally open contacts provide expanded switching alternatives.

In addition to contact style, the series includes latching options (single coil and dual coil) for power-sensitive designs and versions with reverse polarity compatibility for specific control logic needs.

DSP1A-DC24V Operating Properties and Environmental Specifications

Engineered for robustness, the DSP1A-DC24V relay demonstrates strong performance across a range of environmental factors:

Rated for operation under typical ambient temperature, humidity (5%–85% RH), and atmospheric pressure ranges (86–106 kPa).

The sealed construction ensures suitability for equipment cleaning procedures but care must be taken to avoid rapid thermal shocks post-soldering.

The relay is resilient against electrical surges, with a surge withstand capability of 5,000 V.

The unit’s operating voltages and reset characteristics are influenced by coil temperature and ambient conditions; careful control of set/reset pulse times is recommended for latching types to ensure reliable switching.

Design Requirements and Application Instructions for Integrating DSP1A-DC24V

Integrating the DSP1A-DC24V into a system requires attention to several practical engineering considerations:

For applications with prolonged energized coil states (e.g., alarm circuits), using the latching type is advisable to reduce power dissipation and extend relay life.

Use steady-state, rectangular waveform DC coil drive with less than 5% ripple for optimal reliability.

Ensure proper coil polarity, particularly for polarized and latching types, and prevent simultaneous application of set and reset voltages to avoid malfunction or coil damage.

Maximum allowable voltage and temperature must not be exceeded to prevent coil overheating and failure.

Evaluate the relay within the worst-case environmental and operational conditions, particularly with regards to condensation, icing, and exposure to contaminants such as silicone vapors, organic gases, or NOx, which can compromise contact reliability.

DSP1A-DC24V Compliance and Safety Certifications

The DSP1A-DC24V relay series is certified to major international safety standards, providing engineers with confidence in regulatory compliance for end products:

UL/C-UL approvals for 1 Form A, and 1 Form A 1 Form B, and 2 Form A arrangements.

CSA and VDE certifications extend assurance for global equipment manufacturers.

Refer to factory documentation for the latest status on certification maintenance and updates.

DSP1A-DC24V Physical Dimensions and Handling Guidelines

Mechanical integration is streamlined by the relay’s consistent and compact form factor:

Precise dimensions and PCB socket compatibility support dense, modular equipment layouts.

Safe handling procedures are essential during installation and removal; avoid insertion/removal while powered, and employ suitable tools to prevent physical damage to relay or socket lock mechanisms.

CAD data for board layout and mechanical integration is provided by Panasonic to assist in the design phase.

Alternative or Replacement Models Comparable to DSP1A-DC24V

When evaluating alternatives or replacements for the DSP1A-DC24V, consider related models within the Panasonic Electric Works DS Power Relay family, such as:

Other coil voltage variants of the DSP1A series (e.g., DSP1A-DC12V).

Latching variants (e.g., DSP1A-L2 for 2-coil latching needs).

DSP1A-DC24V models with additional contact arrangements if the system design evolves.

For specialized requirements, examine 2 Form A or mixed contact models such as DSP2A series for higher redundancy or extended switching.

Choosing an equivalent demands close attention to coil voltage, contact configuration, size, and certification requirements to ensure drop-in compatibility or minimal redesign.

Conclusion

The Panasonic Electric Works DSP1A-DC24V relay exemplifies the convergence of compact design, robust switching performance, and flexibility in modern power management relays. Its range of model variants, safety certifications, and well-documented application guidelines position it as a compelling choice for engineers and procurement specialists developing and supporting a wide spectrum of electrical equipment. Adhering to the design and integration guidance provided ensures reliability, system safety, and maximized operational life for every application leveraging this trusted relay series.
