Panasonic Electric Works DSP1-DC24V-F

Summary of DSP1-DC24V-F Panasonic Electric Works Power Relay

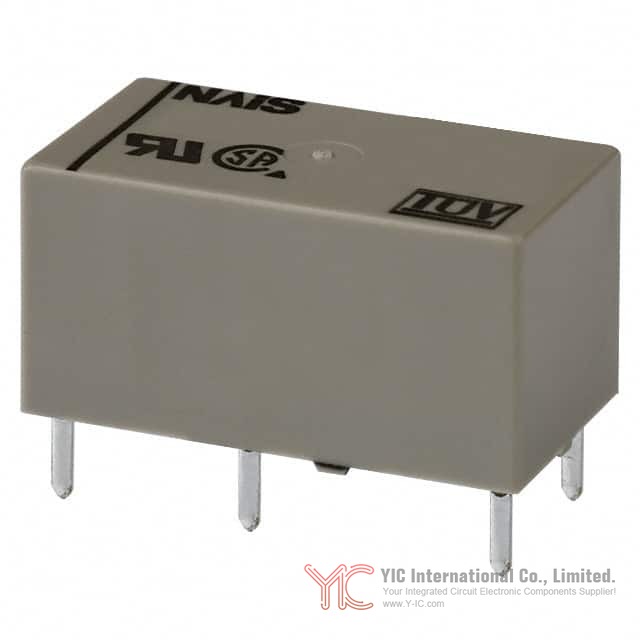

The DSP1-DC24V-F, manufactured by Panasonic Electric Works, is a compact, general purpose power relay designed to handle moderate switching currents and voltages in a variety of electronic circuits. Its dual pole, single throw (DPST-NO/NC, 1 Form A and 1 Form B) configuration allows simultaneous control of two separate circuits and offers both normally open and normally closed contact options for flexible circuit design. With a rated coil voltage of 24VDC, the relay is intended for use in control boards and industrial systems relying on stable DC actuation. This relay is part of the DS POWER RELAYS series, recognized for performance in applications requiring switch currents above 2A.

Main Attributes of DSP1-DC24V-F Panasonic Electric Works

The DSP1-DC24V-F relay is packed with features that target reliability and versatility for demanding engineering applications:

Compact construction: Measuring only 11mm in width, 20.2mm in length, and 10.5mm in height, the DSP1-DC24V-F is well suited for space-constrained circuit boards and modular devices.

Multiple contact forms: Available in 1 Form A, 1 Form A 1 Form B, and 2 Form A arrangements. This accommodates a range of switching scenarios and loads.

High surge withstand voltage: Rated for 5,000V, this relay is capable of handling transient overvoltages, contributing to its durability in industrial environments.

Protective sealed design: The sealed construction offers robust protection against dust and contaminants, safeguarding contacts and coil mechanisms.

Latching type options: Engineers may select single side stable, 1 coil latching, or 2 coil latching versions to optimize power consumption or control circuitry.

PCB compatibility: Through-hole mounting and dedicated PCB sockets provide flexible installation methods for automated production or field maintenance.

Electrical Specifications and Efficiency of DSP1-DC24V-F Panasonic Electric Works

The DSP1-DC24V-F exhibits robust electrical performance, with careful engineering allowing reliable operation across typical industrial and instrumentation loads:

Contact rating: Up to 5A at both AC and DC, depending on contact arrangement and load type.

Coil voltage: 24VDC, with operation recommended within ±5% of the rated voltage to ensure consistent switching characteristics and maintain relay longevity.

Surge testing: Qualified up to 5,000V for isolation and safety purposes.

Switching life: Relay lifetime depends on switching frequency, ambient conditions, and load nature; users are advised to validate under real load scenarios for reliability.

Operate and release times: Fast actuation times under both pulse and steady-state coil drive, with guidance provided for minimum pulse widths in latching variants (typically 25ms or longer).

Design Details and Installation for DSP1-DC24V-F Panasonic Electric Works

The compact profile of the DSP1-DC24V-F simplifies mechanical integration. Its dimensions cater to high-density circuit layouts while maintaining robustness:

Overall size: Width 11mm x length 20.2mm x height 10.5mm

Tolerances: Dimensional tolerances are maintained to ±0.1mm for precision in automated placement and socketing.

Mounting: Designed for through-hole technology and PCB sockets, with installation and removal guides to prevent relay or socket deformation.

CAD data availability: Engineers have access to detailed CAD drawings for board layout and enclosure design.

Common Uses of DSP1-DC24V-F Panasonic Electric Works

Engineers frequently select the DSP1-DC24V-F for the following application areas:

Electric power equipment: Used to isolate and switch control circuits in distribution panels and automatic transfer systems.

Measuring instruments: Provides robust channel switching for data acquisition, meter control, and test setups.

Industrial machines: Suitable for motor starter circuits, process automation, and safety interlocks.

Office automation (OA) equipment: Enables reliable control of peripherals and modular subsystems where compactness is valued.

Compliance and Certifications of DSP1-DC24V-F Panasonic Electric Works

Certification and standards compliance are critical for deploying relays into regulated industries. The DSP1-DC24V-F conforms to several international safety requirements:

UL/C-UL approval (for 1 Form A contacts)

CSA standard approval (for 1 Form A, 1 Form A 1 Form B, and 2 Form A)

VDE certification (for all contact forms)

Engineers should verify the latest certificate versions for use in safety, industrial, or export-sensitive designs.

Usage Recommendations and Important Notes for DSP1-DC24V-F Panasonic Electric Works

Proper relay selection and configuration are essential to maximize operational safety and reliability:

Coil input precautions: Ensure the correct coil polarity for polarized types, and never apply voltages to both set and reset coils simultaneously.

Power supply: Only apply rectangular, low-ripple DC voltage to the coil to guarantee consistent operation.

Pulse control (latching types): For reliable switching, recommended set/reset pulse times should exceed 25 ms at rated coil voltage, accommodating ambient temperature fluctuations.

Long-term energization: Latching types are preferred where the relay remains activated for extended periods to minimize coil heating and insulation decay.

Switching logic: For DPST-NO/NC variants, attention is required because the NO and NC contacts may momentarily be ON together during actuation.

Environmental Considerations and Handling Instructions for DSP1-DC24V-F Panasonic Electric Works

Performance and longevity of the DSP1-DC24V-F are highly dependent on storage, transport, and operational environment:

Temperature: Operate and store the relay within each model’s specified range; deviations may lead to plastic brittleness, sealing loss, or premature contact wear.

Humidity: Use within 5–85% RH; avoid exposure to condensation or icing, which can affect insulation and mechanical motion.

Pressure: 86–106 kPa recommended.

Storage: Do not expose to direct sunlight, organic gases, or silicone-containing substances, which may degrade contact surfaces and reliability.

Cleaning: Sealed relays may be cleaned using gentle boiling methods (<40°C); avoid ultrasonic cleaning, which can damage internal coil and contacts.

Handling: Insert and remove the relay only when de-energized, applying force as directed to avoid damage to the relay or socket.

Alternative or Substitute Models for DSP1-DC24V-F Panasonic Electric Works

When designing new equipment or maintaining existing installations, it is beneficial to consider alternative relay models offering similar performance or form factors. Within the Panasonic Electric Works DS POWER RELAYS series, engineers may select among the following equivalents depending on voltage, contact configuration, and latching requirements:

DSP1-DC12V-F: Identical switching arrangement with 12VDC coil for lower voltage systems.

DSP1a, DSP2a variants: Allow 1 Form A, 2 Form A forms for different load or switching logic.

Latching versions: Single coil and dual coil types available for energy-saving applications or specific switching behavior.

Where replacement is necessary, consult the selector chart and dimensional data to ensure interchangeability with sockets and PCB layouts. Compatibility of seal type, contact ratings, and safety certifications must be checked according to application requirements.

Conclusion

: Evaluating DSP1-DC24V-F Panasonic Electric Works for Engineering Projects

The DSP1-DC24V-F relay from Panasonic Electric Works integrates high-density packaging, robust electrical performance, and broad compliance with safety standards, making it a compelling choice for engineers seeking reliable switching solutions in compact designs. Its configurability, sealed construction, and PCB compatibility support a range of industrial, instrumentation, and automation functions. Adherence to specified operating, environmental, and handling guidelines is essential to achieve optimal performance and service life. When considering system upgrades or new design cycles, engineers may select from several equivalent models within the DS POWER RELAYS family to match specific technical requirements. The DSP1-DC24V-F stands out as a versatile and trusted component for modern control and automation challenges.
