Panasonic Electric Works DS4E-ML2-DC48V

Mfr. Part

DS4E-ML2-DC48V

Manufacturer

Panasonic

Y-IC is a quality distributor of Panasonic. We deliver genuine parts, fast service, and the best customer support.

Detailed Description

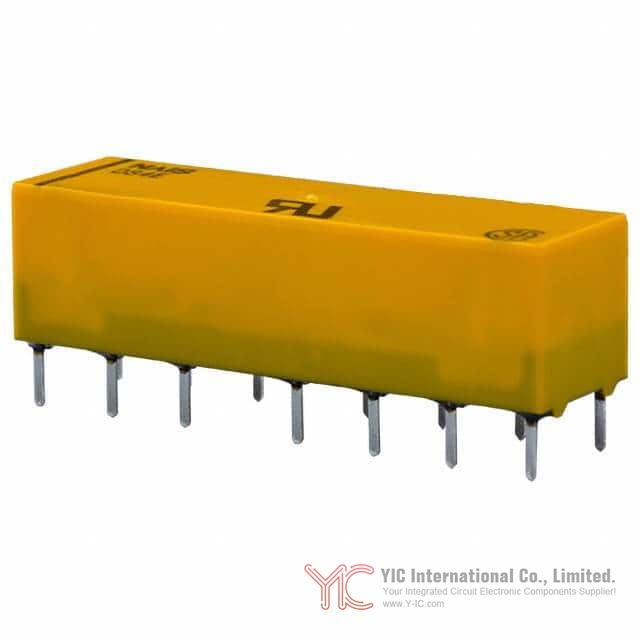

General purpose signal relay, DS series, 4PDT (4 Form C), 2 A per contact

48 VDC dual-coil latching design; holds state without continuous power

Through-hole, PC pin termination; fully sealed construction; tube packaging

Base product number: DS4E-ML; series: DS

Operating temperature: -40°C to +70°C

Typical electricals: coil current 7.5 mA, coil resistance 6.4 kΩ, must operate voltage 33.6 VDC, switching voltages up to 250 VAC / 220 VDC max

Fast timing: operate 10 ms, release 5 ms

Contact material: silver with gold (Ag/Au)

Current stock example: 2160 units available (subject to change)

Key Features

4PDT contact form for dense signal routing

2 A contact rating supports low-power loads

48 VDC dual-coil latching; minimal power consumption

Fully sealed for flux protection and washability

Through-hole PC pins for robust board mounting

Wide switching voltage range: 250 VAC / 220 VDC max

Fast operate and release times: 10 ms / 5 ms

Broad temperature range: -40°C to +70°C

Panasonic DS series reliability

Key Advantages

Latching design saves energy by holding position without coil power

4PDT reduces relay count and board space for complex signal paths

Sealed body improves durability in harsh and high-humidity environments

Stable performance for low-level signal integrity and repeatable switching

Simple assembly and serviceability with through-hole pins

Backed by Panasonic quality and Y-IC’s dependable distribution and support

Packaging

Type: Tube for safe handling and automated loading

Material: Molded plastic housing, fully sealed construction; tin-plated PC pins

Size: Compact, DIP-style footprint optimized for dense layouts; refer to the datasheet for exact dimensions, pad layout, and drilling patterns

Pin configuration: 4PDT contact matrix with PC pin terminations; dual-coil latching pins; standard DS series pinout; consult the datasheet for precise pin numbering and coil polarity

Thermal characteristics: Operating -40°C to +70°C; sealed case resists flux and wash; follow Panasonic soldering temperature profiles to avoid thermal stress

Electrical properties: 48 VDC coil, 7.5 mA coil current, 6.4 kΩ coil resistance, 33.6 VDC must operate voltage; 2 A contact rating; 250 VAC / 220 VDC max switching; 10 ms operate, 5 ms release; Ag/Au contact materials

Lifecycle

Status: Active and in production based on current industry data; not nearing discontinuation

Availability: Lead times can vary by demand; Y-IC can secure supply and schedule deliveries

Equivalent or alternative models (same series, different coil voltages):

- DS4E-ML2-DC24V (dual-coil latching, 24 VDC)

- DS4E-ML2-DC12V (dual-coil latching, 12 VDC)

- DS4E-ML2-DC5V (dual-coil latching, 5 VDC)

- DS4E-ML-DC48V (single-coil latching variant, 48 VDC) if single-coil latching is preferred

For cross-brand or footprint-compatible substitutes, please contact our sales team via the Y-IC website for a tailored list and technical review

Key Application Areas

Test and measurement switching matrices and instrumentation

Telecom and networking signal routing and line selection

Audio mixing, studio gear, and channel switching

Industrial controls, PLC I/O, low-power signal switching

Security and alarm systems, panel logic control

Data acquisition, multiplexers, and sensor selection

Battery-powered systems that benefit from latching state retention

Medical and lab equipment requiring clean, low-distortion signal paths
