Murata Electronics LQG15HS2N2B02D

Introduction to the LQG15HS2N2B02D Murata Electronics Surface Mount Inductor

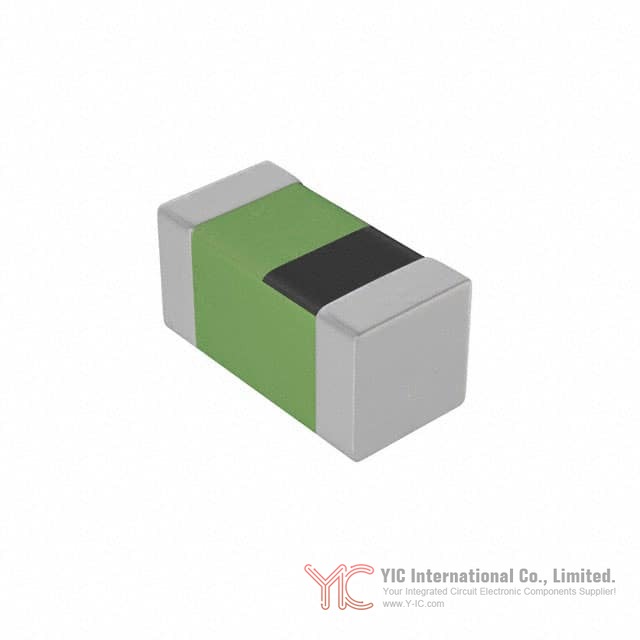

The LQG15HS2N2B02D from Murata Electronics is a fixed multilayer chip inductor designed for a wide spectrum of consumer and industrial electronics applications. Offered in an ultra-compact 0402 (1005 metric) SMD package, this unshielded inductor delivers a rated inductance of 2.2 nH, a maximum DC current rating of 900 mA, and a maximum DC resistance of 90 mΩ. Its miniature size and robust electrical performance make it a strong choice for engineers and procurement professionals seeking to optimize PCB layouts in high-density designs.

The LQG15HS2N2B02D is part of Murata's LQG15HS series, engineered to meet demanding requirements where space optimization, low resistance, and reliable surface-mount compatibility are critical factors.

-

Common Uses of the LQG15HS2N2B02D Murata Electronics Surface Mount Inductor

The LQG15HS2N2B02D Murata Electronics SMD Inductor is suitable for a broad range of applications involving consumer, industrial, and medical equipment (within specified limits). Specific intended uses include:

Consumer electronics such as mobile devices, wearable technology, smart home devices, and A/V or communication products where size is at a premium.

Industrial applications including base stations, robotic systems, test and measurement equipment, and automation platforms.

Power equipment, such as renewable energy control units, energy storage devices, and EV charging stations, provided that its function does not directly pertain to the protection of human life or property.

Certain medical devices (GHTF Classes A, B, and C, excluding implants and high-risk categories), suitable for functions where malfunction does not pose direct life-threatening risks.

Engineers should avoid deploying the LQG15HS2N2B02D in mission-critical environments such as aerospace, undersea, power plant controls, or any application specified as restricted by Murata due to the rigorous demands for safety and reliability in those sectors.

-

Main Electrical and Physical Characteristics of the LQG15HS2N2B02D Murata Electronics Surface Mount Inductor

The LQG15HS2N2B02D Murata Electronics SMD Inductor is defined by the following critical parameters:

Inductance: 2.2 nH (nominal)

Maximum Rated DC Current: 900 mA

Maximum DC Resistance: 90 mΩ

Form Factor: 0402 (1005 metric, thin profile)

Unit Mass: approximately 0.001 g

The device is unshielded and constructed with multilayer technology, balancing small size with consistent electrical performance. Its current handling capability—up to 900 mA—supports high-frequency and power integrity applications, while the low DC resistance minimizes insertion loss and enhances overall efficiency in RF and signal-line filtering circuits.

Electrical performance is assured through compliance with standardized test methods, and all ratings are specified for performance under conditions such as glass-epoxy substrate mounting, as recommended by Murata.

-

Package Type, Labeling, and Size Information for the LQG15HS2N2B02D Murata Electronics Surface Mount Inductor

Murata Electronics provides the LQG15HS2N2B02D SMD Inductor in tape-and-reel packaging, designed for efficient high-volume automated placement processes. The tape width is 8 mm, following industry best-practice for compact SMD passives. Box and reel markings include customer and Murata part numbers, inspection numbers, RoHS compliancy, and quantity information to streamline material tracking and traceability.

Device marking for orientation is minimal—the standard for this size class—with a black mark indicating directionality for visual reference during assembly when required.

For mounting, detailed recommended land patterns and tape-leader configurations are provided, facilitating robust and repeatable placement on production lines.

-

Guidelines for Placement and Soldering of the LQG15HS2N2B02D Murata Electronics Surface Mount Inductor

The LQG15HS2N2B02D Murata Electronics SMD Inductor is intended exclusively for assembly via reflow soldering methods. Key considerations for installation include:

Adhering to specified land dimensions, soldering materials, and thermal profiles to avoid thermal shock, solder joint cracking, or electrical degradation.

Ensuring that inrush or surge currents in the application do not exceed rated limits to prevent internal damage or catastrophic failure such as fusing or overheating.

Mechanical layout design should minimize exposure to flexing, board bending, or stress concentrations around the mounted inductor—especially near board breaks or screw fittings.

Avoid excessive solder volume which may induce mechanical stress and compromise electrical reliability; this is particularly critical in high-density layouts.

Cleaning procedures must respect maximum allowable temperatures (60°C for general, 40°C with IPA) and preclude aggressive solvents. When using resin encapsulants, perform qualification tests to avoid interaction-induced failures.

Murata further recommends evaluating the inductor in the final application context to confirm compatibility with customer specifications and end-use conditions.

-

Environmental Suitability and Reliability Aspects of the LQG15HS2N2B02D Murata Electronics Surface Mount Inductor

To maintain long-term reliability and electrical performance, the LQG15HS2N2B02D Murata Electronics SMD Inductor must be operated within its specified environmental limits:

Avoid exposure to corrosive atmospheres (e.g., chemical vapors, chloride, sulfur compounds) and situations where condensation or liquid ingress is likely.

When installed near heat-generating devices, ensure adequate thermal management so that the device’s ambient and substrate temperature remain within rated maximums.

Proper storage and handling are crucial; excessive humidity, temperature fluctuations, or physical shocks during transportation can impact performance.

The device is RoHS-compliant, ensuring suitability for environmentally regulated markets.

The product is not intended for direct deployment in critical safety, aerospace, or high-reliability life-support applications unless specifically evaluated and approved for such use cases by Murata.

-

Alternative or Substitute Options for the LQG15HS2N2B02D Murata Electronics Surface Mount Inductor

For circumstances such as second-source qualification or design migration, engineers may consider other inductors within the LQG15HS series that share similar form factors with alternative inductance or impedance values to suit different tuning or filtering requirements. Within the Murata catalog, related products sharing the 0402 (1005 metric) package and comparable electrical characteristics offer straightforward drop-in replacements.

It is recommended to cross-reference all electrical, mechanical, and environmental ratings when selecting substitutes, and to consult the latest Murata selection guides and reference specifications to ensure compatibility for the intended application.

-

Conclusion

The LQG15HS2N2B02D Murata Electronics SMD Inductor is a versatile and high-performance solution for environments demanding compact, efficient, and reliable inductance in surface-mount form. By adhering to best practices for component selection, board layout, and process integration, engineers can fully leverage its advantages for contemporary electronics design in consumer, industrial, and non-critical medical markets. With comprehensive technical documentation and a family of related products, Murata provides the support necessary for successful adoption of the LQG15HS2N2B02D in modern electronic systems.
