Murata Electronics GQM1885C1H120GB01D

GQM1885C1H120GB01D Overview Provided by Murata Electronics

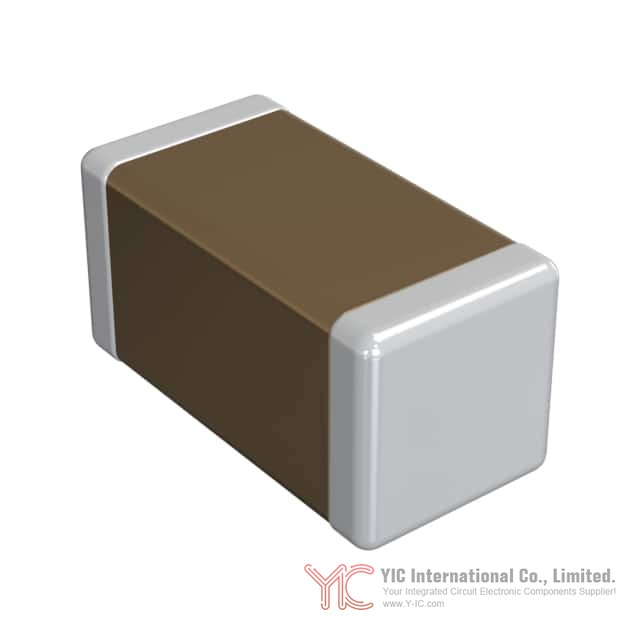

The GQM1885C1H120GB01D from Murata Electronics is a surface-mount, monolithic ceramic capacitor engineered for RF (radio-frequency) applications requiring high stability and reliability. Classified under Murata's GQM series, this model features a capacitance of 12 pF, a rated voltage of 50 V, a tight tolerance of ±2%, and employs a C0G (NP0) dielectric for minimal temperature dependence. Sized in the compact 0603 metric footprint (1.6 x 0.8 mm), the GQM1885C1H120GB01D is tailored for integration into high-frequency circuit boards where consistent performance and size constraints are paramount.

Essential Features and Electrical Properties of GQM1885C1H120GB01D

The GQM1885C1H120GB01D distinguishes itself with the following principal characteristics:

Capacitance: 12 pF

Tolerance: ±2%

Rated Voltage: 50 V DC

Dielectric: C0G (NP0) – ensures a near-zero temperature coefficient from 25°C to 125°C

Package Size: 0603 (Metric: 1.6 mm x 0.8 mm)

High-frequency performance: Designed for minimal loss and high Q-factor at RF

Stability: Extremely low drift due to dielectric material selection

These attributes make the capacitor ideal for frequency-determining circuits, filters, and impedance matching in wireless/RF modules, and other applications demanding both stability and low-loss performance at high frequencies.

Physical Size and Packaging Choices for GQM1885C1H120GB01D

The GQM1885C1H120GB01D adheres to the industry-standard 0603 package, enabling straightforward integration into automated pick-and-place production lines. The component is typically supplied on tape-and-reel carriers, supporting high-volume, automated assembly. Specific attention is paid to consistent tape winding, reliable reel construction, and robust tape adhesion, minimizing risk during transportation and storage. Packaging options accommodate various minimum quantities per reel according to Murata's logistics and the assembly process requirements of OEMs and EMS providers.

Application Guidelines and Primary Usage Scenarios for GQM1885C1H120GB01D

Murata's GQM1885C1H120GB01D is engineered for high-frequency environments, including RF circuits in wireless communications equipment, impedance matching networks, resonant circuits, and high-Q filter designs. Due to the high mechanical reliability and the robust ceramic body, it is suitable for environments sensitive to temperature drift and where board space is limited. Application engineers should note, however, that the device is not designed for safety-critical circuits, general power supplies, or lighting, nor should it be used in applications with extraordinary reliability requirements without further engagement with Murata application engineering.

Reliability Standards, Storage Methods, and Handling Instructions for GQM1885C1H120GB01D

Long-term reliability of the GQM1885C1H120GB01D is optimized by adhering to recommended storage conditions: temperature between +5°C and +40°C and relative humidity between 20% and 70%. Capacitors should be kept in unopened, manufacturer-supplied packaging to avoid exposure to damaging environmental factors such as dust, direct sunlight, corrosive gases (e.g., hydrogen sulfide, chlorine, ammonia), and sudden temperature changes which may impair solderability or electrical performance. Usage within six months of receipt is recommended for best results; for longer storage, confirm solderability. Mechanical shocks (e.g., dropping) risk microcracking and should always be avoided during transport and handling.

Soldering Techniques, Assembly Methods, and PCB Layout Tips for GQM1885C1H120GB01D

To maximize the mechanical integrity and electrical performance of GQM1885C1H120GB01D, careful consideration must be given to soldering profiles, mounting strategies, and PCB layout:

Mounting position should minimize stress; orient component horizontally to expected board flex direction.

Solder paste amount should be carefully controlled: excess increases mechanical/thermal stress, while insufficient solder reduces adhesion, risking detachment.

Reflow, flow, and manual soldering operations should be preheated appropriately to avoid thermal shock.

For flow soldering, ensure the solder fillet does not surpass component thickness; for rework, observe height/thickness ratio guidelines.

Land pattern dimensions must align with Murata's recommendations—oversized pads and improper layout increase the risk of cracking, especially on PCB materials with higher coefficients of expansion or in double-sided assemblies.

After mounting, avoid PCB bending, resonance, or stacking boards in ways that subject the capacitors to concentrated mechanical stress.

Appropriately planned cleaning (washing) and flux usage are essential: avoid water-soluble and aggressive fluxes, and select compatible cleaning agents to prevent flux residue and moisture intrusion.

Environmental Conditions and Operating Restrictions for GQM1885C1H120GB01D

Engineers must account for environmental and operational constraints when designing with the GQM1885C1H120GB01D:

Operating temperature range must not exceed device ratings, considering both ambient and self-heating from operating conditions.

Avoid deployment in corrosive or high-condensation environments, direct exposure to sunlight, or where subject to excessive vibration/shock.

Capacitance drift under voltage, high temperature, and aging is negligible for C0G/NP0 dielectrics, but should still be evaluated for frequency-sensitive applications.

Avoid using the GQM1885C1H120GB01D in applications outside its specified parameters without consultation—for example, aerospace, automotive safety, medical life-support, or undersea systems—due to heightened qualification requirements.

Comparable or Substitute Models for GQM1885C1H120GB01D

Engineers assessing the GQM1885C1H120GB01D may consider other devices in the Murata GQM series with similar voltage, tolerance, capacitance, and form factor if BOM flexibility is required. Alternative suppliers may also offer functionally similar 12 pF, 50 V, C0G/NP0 0603 ceramic capacitors. When selecting an equivalent, it is vital to verify:

Capacitance and tolerance match

Voltage rating equals or exceeds 50 V

RF/high-Q performance and C0G/NP0 dielectric are employed

Package dimensions and tape/reel packaging standards are compliant with assembly needs

Minor differences in voltage, Q-factor, process reliability, and temperature coefficient can have a significant performance impact in exacting RF environments—engineering judgment should therefore always guide substitution.

Conclusion

: Engineering Value and Suitability of GQM1885C1H120GB01D

The Murata Electronics GQM1885C1H120GB01D presents an attractive option for engineers and procurement teams needing a robust, stable, and low-loss RF ceramic capacitor in a compact 0603 package. Its C0G/NP0 dielectric affords outstanding frequency and temperature stability with minimal aging drift, making it ideal for precise, high-frequency analog designs. Stringent attention to handling, storage, assembly parameters, and environmental limits ensures optimal reliability and performance. For RF front-end, filtering, and impedance-critical applications in wireless, instrumentation, or precision analog circuits, the GQM1885C1H120GB01D is a well-supported, field-proven component to consider in the product selection process.
