Murata Electronics BLM31SN500SZ1L

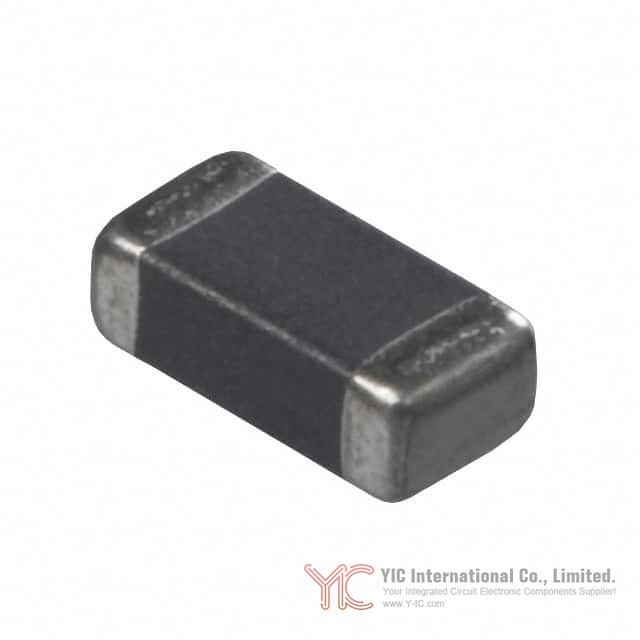

Overview of the Murata BLM31SN500SZ1L Ferrite Bead Product

The BLM31SN500SZ1L ferrite bead from Murata Electronics is engineered for use in automotive electronics and general EMI suppression applications. As part of Murata’s BLM31_SZ series, this surface-mount device (SMD) offers a robust solution for engineers seeking effective high-frequency noise filtering on power lines and signal paths. The device features a rated impedance of 50 Ohms at 100 MHz, fitting the standard 1206 (3216 metric) package, and is suitable for power line use. With its automotive-grade reliability, it aligns with the demands of environments requiring consistent noise attenuation.

Electrical Specifications and Performance Insights of BLM31SN500SZ1L

The key functional parameter of the BLM31SN500SZ1L is its impedance, rated at 50 Ohms at 100 MHz, which addresses electromagnetic interference in typical circuit environments. Supporting up to 12A maximum current and demonstrating only 1.6mOhm of DC resistance, the bead provides high current handling capability with minimal voltage drop, critical for power delivery circuits. Its frequency response follows an equivalent circuit where a resistance element becomes dominant at high frequencies. This characteristic ensures effective filtering without signal distortion in high-speed or high-power applications.

Physical Properties and Dimensional Details of BLM31SN500SZ1L

The BLM31SN500SZ1L adopts the industry-standard 1206 (3.2mm x 1.6mm) SMD footprint, simplifying board layout and integration. With a typical unit mass of 0.025g, it suits size-constrained designs while maintaining mechanical robustness. The device is constructed with no explicit polarity, facilitating straightforward placement during assembly. The compact form factor and electrode configuration enable use on high-density or automotive-grade PCBs, where spacing and reliability are critical.

Regulatory Compliance, Reliability, and AEC-Q200 Certification of BLM31SN500SZ1L

Murata’s BLM31SN500SZ1L ferrite bead meets the AEC-Q200 standard (excluding powertrain and safety-critical areas), certifying its suitability for automotive environments and other high-reliability applications. The device is built and tested in accordance with rigorous standards for EMI suppressors and filters. This compliance assures procurement personnel and engineers of consistent quality and robust performance when deployed in mission-critical designs such as control units, infotainment systems, and body electronics.

Usage Guidelines, Mounting Methods, and PCB Design Tips for BLM31SN500SZ1L

For optimal performance and reliability, Murata provides comprehensive guidelines for mounting and PCB layout. The BLM31SN500SZ1L is designed for soldered attachment using both flow and reflow methods. Recommended land patterns help manage thermal stress and minimize the risk of solder joint cracking, especially under significant temperature cycling. Engineers should ensure proper pre-heating and temperature profiling to avoid product damage, limit solder volume to reduce mechanical stress, and position devices to dampen board deflection during separation and assembly. Special attention is advised when placing components near screw holes or heat-generating elements, as excess mechanical or thermal stress can compromise reliability.

Packaging Information and Identification Details for BLM31SN500SZ1L

Murata’s packaging protocol for the BLM31SN500SZ1L involves 8mm width plastic tape reels for automated assembly processes. Taping specifications—such as break down force, peel-off force, and leader/trailer sections—are standardized, facilitating compatibility with pick-and-place machines and other production equipment. Reels and outer boxes include clear labeling with customer and Murata part numbers, inspection identification, RoHS compliance, and quantity, supporting precise inventory management and traceability throughout the supply chain.

Alternative or Substitute Models for BLM31SN500SZ1L

When evaluating alternatives or replacements, engineers should identify devices with comparable impedance ratings (50 Ohms at 100 MHz), similar current handling capability (up to 12A), and equivalent package footprints (1206 SMD). Other ferrite beads in the Murata BLM31_SZ series or similar automotive-qualified components from leading manufacturers may be considered, provided they meet the desired circuit performance and standards requirements. Detailed cross-referencing of electrical and mechanical specifications facilitates risk-managed product selection for retrofit or new designs.

Important Operating Precautions and Environmental Factors for BLM31SN500SZ1L

To ensure safe and reliable operation, Murata stipulates several critical precautions. The BLM31SN500SZ1L should not be used beyond rated current, voltage, or temperature, as this may result in wire breakage or burning. The device must not be applied in environments containing corrosive gases or oils, or where there is a risk of rapid temperature/humidity shifts and dew formation. Fail-safe circuitry should be incorporated to prevent cascading failures, especially in automotive and industrial applications. The product’s performance may change under resin coatings or high mounting density, so adequate evaluation and thermal management are essential. Lastly, handling and board design must minimize mechanical stress due to bending, twisting, or cleaning vibration to prevent cracking and ensure long-term reliability.

Conclusion

The BLM31SN500SZ1L ferrite bead from Murata Electronics offers a compact, high-performance solution for EMI suppression in automotive and industrial electronics. Its robust electrical characteristics, compliance with AEC-Q200 standards, and reliable mounting/packaging protocols make it a versatile choice for engineers and procurement teams aiming to optimize noise reduction in high-current, space-constrained designs. Careful consideration of operational and design guidelines will further maximize the value and lifespan of this essential filtering component.
