Microchip Technology USB2512B-AEZG-TR

Introduction to USB2512B-AEZG-TR Microchip Technology Hi-Speed USB 2.0 Hub Controller

The Microchip Technology USB2512B-AEZG-TR is a high-performance, low-power, multi-transaction translator (MTT) USB 2.0 hub controller IC designed for embedded USB solutions. Housed in a compact 36-pin QFN (6x6 mm) package, the USB2512B-AEZG-TR is part of the versatile USB251xB/xBi family, supporting multiple downstream ports and advanced configuration capabilities. With full compliance to the USB 2.0 specification, the device supports low-, full-, and hi-speed downstream peripherals, making it a robust solution for expanding USB connectivity within applications such as LCD monitors, set-top boxes, PC motherboards, printers, scanners, media drive bays, portable hubs, and embedded platforms.

Main Attributes and Technical Advantages of USB2512B-AEZG-TR

Central to the USB2512B-AEZG-TR are several key innovations and integrated features that deliver both design flexibility and reliable performance. The MultiTRAK™ architecture equips each downstream port with a dedicated Transaction Translator, maximizing full-speed data throughput regardless of the number of active devices. Engineering teams benefit from programmable capabilities such as PortMap (selectable port mapping and disable sequencing) and PortSwap (reconfigurable PCB alignment of USB signal pairs).

Signal integrity is further enhanced by PHYBoost, which allows up to four programmable drive strength levels on downstream port transceivers to recover degraded USB signaling. OEMs can leverage integrated USB port resistors (termination and pull-up/down) and both individual or ganged port power management. A single 3.3V external supply supports internal voltage regulation, contributing to low power operation.

Additional safety features include onboard ESD protection up to 4kV (HBM JESD22-A114F), fully integrated termination, and compliance with industrial and extended commercial temperature ranges (up to -40°C or 0°C through +85°C depending on variant). Battery charging support (USB-BC Rev 1.1 CDP) is available for designs requiring elevated output current to downstream peripherals.

Configuration Possibilities and Firmware Connections of USB2512B-AEZG-TR

Design adaptability is enabled through multiple configuration approaches. The USB2512B-AEZG-TR defaults with strapping option pins, allowing for hardware-based overrides such as port disabling, non-removable device indication, or activation of battery charging features. For more granular control, engineers can utilize an external I²C EEPROM or configure via an SMBus host port.

Through these firmware interfaces, a wide range of custom settings can be applied: vendor, product, and device IDs; string descriptors for manufacturer, product, and serial number; port-level power control; signal drive strength; USB differential pair mapping; over-current filtering delay; precise reporting of hub and port power requirements; and more. The register map is extensive, including areas for power-on timing, language ID, string lengths, and battery charging enable bits.

For SMBus-equipped systems, the USB2512B-AEZG-TR operates as a slave-only block device, adhering to standard block write/read protocols with bus and slave timeouts, stretching support, and straightforward reset procedures. This flexibility enables rapid design cycles for products targeting different sectors and platform requirements.

Support for Battery Charging with USB2512B-AEZG-TR

The USB2512B-AEZG-TR includes per-port battery charging capability, compliant with USB Battery Charging Specification Revision 1.1 for Charging Downstream Ports (CDP). When configured for battery charging, the controller can provide up to 1.5A per port—a key requirement for modern USB-powered devices that need efficient charging even during system suspend or power-off states (S3, S4, S5).

Port power is enabled immediately after reset and hardware configuration, independent of enumeration or VBUS_SOURCE detection, thus supporting charging outside of normal USB operation. The device monitors over-current conditions continually, disconnecting power if limits are exceeded to protect both the hub and attached devices. Proper selection of power supply, port controllers, and over-current protection components is crucial to meet the high-rise current demands for battery charging peripherals.

Pin Configuration and Packaging Options for USB2512B-AEZG-TR Usage

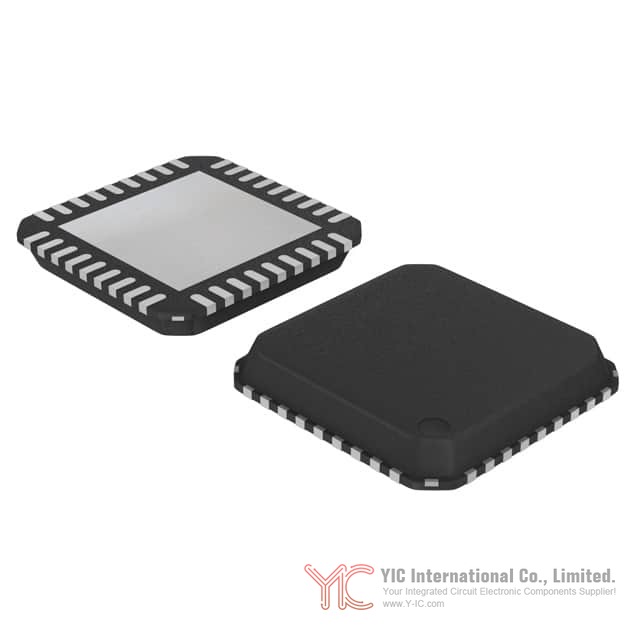

The USB2512B-AEZG-TR is offered in a 36-pin QFN (legacy) or SQFN (preferred) 6x6 mm package, well suited for high-density PCB layouts. Engineers should review the detailed pin assignment and groupings by function to optimize connectivity and minimize PCB signal crossing—made easier with the PortSwap feature.

Strap pins play a vital role in default and override configurations with their buffer types (I/O, internal pull-down, LED functionality), requiring the appropriate pull-up/pull-down resistors per the hardware setup. Refer to the comprehensive pinout and mechanical package drawings for accurate board design, and note that these packages are fully footprint-compatible with earlier USB251x/xi/xA/xAi devices, enabling straightforward upgrades or design reuse.

Electrical Specifications and Timing Parameters of USB2512B-AEZG-TR

For integration into both new and existing platforms, attention to electrical parameters is key. Maximum ratings must not be exceeded to avoid permanent damage during power-on/power-off transitions—clamping circuitry is recommended if transient voltage spikes are expected. The controller operates from a 3.3V supply with onboard regulation to 1.2V core logic.

DC characteristics (operating current, output leakage, pin capacitance) and detailed supply current tables are provided for both unconfigured/configured and host speed scenarios. In terms of timing, the oscillator circuit requires a 24 MHz crystal (±350 ppm) or external clock input, with careful calculation of load capacitances to ensure compliant performance. Variety in clock sources and SMBus/I²C timing further supports design flexibility.

Thermal Performance and Mechanical Packaging Information for USB2512B-AEZG-TR

Device reliability is bolstered by robust thermal specifications. The package thermal resistance and maximum power calculation formulas are referenced to industry-standard JESD51 methodology, supporting temperatures up to +125°C junction and an ambient of +85°C. Proper layout of PCB thermal vias and exposed pad soldering maximizes heat dissipation.

Standard device marking (part number, year code, week code, traceability) ensures traceability and supports industry documentation requirements. Detailed mechanical drawings and recommended PCB land patterns are available for both SQFN and QFN packages, allowing for customization based on manufacturing capabilities.

Alternative or Substitute Models Comparable to USB2512B-AEZG-TR

System designers may evaluate the USB2512B-AEZG-TR as a direct drop-in replacement for previous Microchip Technology USB251x, USB251xi, USB251xA, and USB251xAi families. These models share compatible pinouts and PCB footprints, often allowing reuse of board layouts, compliance by similarity, and simplified migration paths. When assessing replacement options, be attentive to register defaults, product/device IDs, and any functional enhancements—especially additional configuration fields and battery charging support unique to B/xBi series.

Conclusion

: Engineering value of the USB2512B-AEZG-TR in USB hub designs

The USB2512B-AEZG-TR Hi-Speed USB 2.0 Hub Controller represents a mature, highly adaptable hub solution for modern embedded designs requiring expanded USB port functionality, robust battery charging capabilities, and flexible configuration interfaces. Its advanced signal integrity, integrated power management, ease of PCB implementation, and solid protection features make it an excellent choice for applications spanning consumer, industrial, and enterprise electronics. With strong mechanical, electrical, and firmware support, engineers and procurement professionals can rely on the USB2512B-AEZG-TR to future-proof their USB expansion requirements and streamline the BOM across multiple product lines.
