Microchip Technology SST39VF3201B-70-4C-EKE

Product Summary Microchip Technology SST39VF3201B-70-4C-EKE

Microchip Technology’s SST39VF3201B-70-4C-EKE is a high-performance parallel flash memory IC, offering 32 Mbit (2M x16) density, designed to meet the rigorous requirements of embedded and industrial applications. Based on the proven SuperFlash technology, this device operates at a single voltage (2.7–3.6V), delivers fast 70ns read access time, and is housed in a 48-lead TSOP package suitable for high-density surface mount configurations.

As an advanced nonvolatile memory solution, the SST39VF3201B-70-4C-EKE stands out with its robust write/erase endurance (100,000 cycles typical) and exceptional data retention (>100 years), supporting the needs of product selection, rapid prototyping, and high-volume production.

Key Specifications and Benefits of SST39VF3201B-70-4C-EKE

The SST39VF3201B-70-4C-EKE delivers numerous technical and operational benefits crucial to modern embedded systems:

32 Mbit (2M x16) CMOS flash memory structure.

Fast performance: 70ns read access and 7μs typical word-program time.

Low energy operation: 6mA typical active current at 5MHz, 4μA standby and auto-low-power mode.

Broad operating voltage range (2.7–3.6V) for superior power supply flexibility.

Flexible erase capability: uniform 2KWord sectors, 32KWord blocks, or full chip erase.

Robust endurance and long-term data retention suitable for critical code and data storage.

Advanced hardware block protection, sector protection, and program/erase suspend/resume for robust command flexibility.

Compliance with JEDEC x16 memory pin-out standards for straightforward system integration.

RoHS-compliant, with lead-free options supporting current environmental guidelines.

Design Structure and Underlying Technology

The SST39VF3201B-70-4C-EKE is built on Microchip’s proprietary SuperFlash split-gate cell and thick-oxide tunneling injector architecture. This construction offers significant advantages over floating-gate and other legacy flash designs. Key highlights include consistent erase/program times—independent of cycle count—and inherently lower erase/program currents, greatly improving energy efficiency during update operations.

Internal hardware and software protection schemes guard against inadvertent writes or erasures, further ensuring data integrity in harsh environments. JEDEC standard pin assignments facilitate drop-in replacement and aid interoperability across platforms with similar parallel flash solutions.

Working Modes of SST39VF3201B-70-4C-EKE

A comprehensive set of operation modes supports a wide spectrum of application requirements:

Read Mode: Achieves full device access with CE# and OE# asserted low, providing high-speed, random-access device reads.

Word-Program: Individual 16-bit words can be programmed after the target sector is erased. Protection is provided via a mandatory software command sequence to initiate write operations.

Sector/Block/Chip-Erase: Flexible erase options enable selective data area refresh, with erase completion indicated via Data# Polling or Toggle Bit feedback.

Erase Suspend/Resume: Temporarily halts ongoing erase processes while allowing read or program operations on other memory areas.

Auto Low Power Mode: After valid reads, the device reduces supply current dramatically, entering near-standby mode without external intervention.

Security ID and Product Identification: Dedicated regions for custom user data and permanent, factory-programmed unique IDs, critical in anti-cloning and secure boot use cases.

Enhanced Data Safeguarding and Protection Mechanisms

The SST39VF3201B-70-4C-EKE incorporates multiple protection layers:

Hardware data protection via input signal qualification and voltage monitoring, ensuring write inhibition during system transients such as power-up/down.

Software Data Protection (SDP) demands specific command sequences for write/erase functions, minimizing risk of accidental data alteration.

Hardware block protection (unique to SST39VF3201B for bottom boot blocks) enables design of robust memory maps to shield bootloader or critical configuration data from accidental overwrite.

Dedicated hardware reset pin (RST#) ensures immediate device return to default read array mode—an essential safeguard for fault recovery and watchdog implementations.

Electrical Properties and Reliability Performance

With tight specification controls, the SST39VF3201B-70-4C-EKE supports commercial-grade operating temperatures (0°C to +70°C) and industrial ranges when specified. Absolute maximum conditions for input voltages, storage temperatures, and power dissipation underscore its resilience in demanding environments.

Device reliability is further assured with specification for 100,000 program/erase cycles (typical) and over 100 years of data retention. Capacitance, current consumption, and power-up timing parameters support precise power budgeting and signal integrity modeling at the board level.

Integration Methods and Available Packaging Types

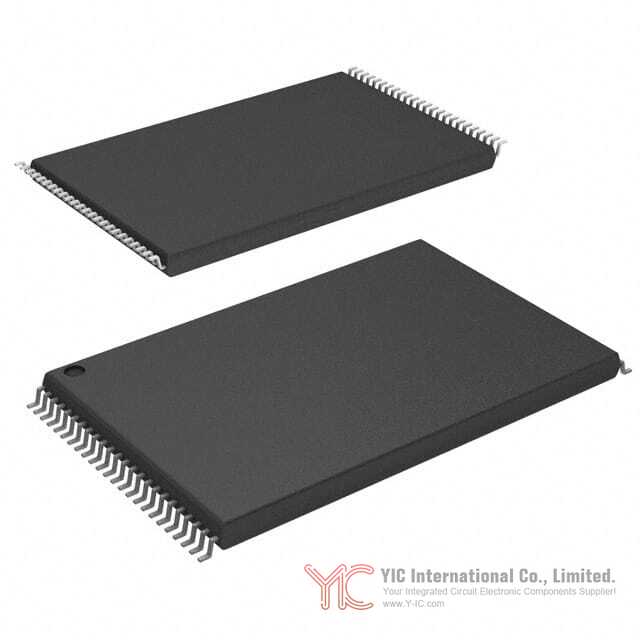

The SST39VF3201B-70-4C-EKE comes in a 48-lead TSOP (12mm x 20mm) package. For designs prioritizing ultra-compact footprints, alternative ordering codes offer a 48-ball TFBGA (6mm x 8mm) package. Both packages comply with industry-standard JEDEC outlines, facilitating automated assembly and compatibility with standard sockets and reflow soldering processes.

System-level designers benefit from the device’s CMOS I/O compatibility and standard interface, easing signal routing and multiprocessor system integration.

Engineering Usage and Selection Guidelines

SST39VF3201B-70-4C-EKE is engineered for applications requiring robust, reprogrammable nonvolatile storage with fast access and high reliability. Common deployment scenarios include:

Embedded microcontroller/FPGA code storage (boot and application code)

Configurable field updates for industrial controls, PLCs, and instrumentation

Data logging and parameter storage in communication, automotive, and consumer electronics

Multi-boot/multi-image embedded systems requiring secure, protected partitions

Engineers should consider:

Package selection (TSOP vs TFBGA) based on available PCB area and thermal requirements.

Protection mechanism requirements—selecting SST39VF3201B for bottom boot block protection is ideal when system-critical code resides at the memory base address.

Interface compatibility—the parallel interface (x16 data bus) fits legacy and high-speed system architectures, especially where serial flash bandwidth is a limiting factor.

Possible Alternatives or Substitute Models

For engineers with sourcing constraints or multi-vendor requirements, the following models are pertinent:

Microchip Technology SST39VF3202B series: Offers top boot block protection, otherwise similar in architecture and performance to SST39VF3201B-70-4C-EKE.

Other parallel NOR Flash alternatives with comparable density, access times, and voltage range, subject to JEDEC x16 pin compatibility (device-specific qualification required).

Manufacturers such as Cypress, Macronix, and Winbond also offer 32Mbit parallel NOR flash solutions; however, engineers must carefully validate hardware block protection scheme and sector/block organization before replacement.

Conclusion

The SST39VF3201B-70-4C-EKE by Microchip Technology is a benchmark in robust, high-speed parallel flash memory, perfectly aligned for embedded applications demanding reliability, performance, and secure program storage. With advanced protection mechanisms, flexible erase/programming modes, industry-standard packaging, and JEDEC interface compliance, it is a compelling choice for engineers building resilient, updatable systems. Its pin-compatible sibling and a range of industry alternatives further simplify second-sourcing and long-term lifecycle planning, making the SST39VF3201B-70-4C-EKE a preferred choice for new and legacy designs alike.
