Microchip Technology PIC18F66J15-I/PT

Summary of Microchip PIC18F66J15-I/PT

The Microchip PIC18F66J15-I/PT is a high-performance, 8-bit microcontroller tailored for embedded control systems requiring a rich feature set alongside competitive price and low-power operation. As part of the PIC18F87J10 family, this device integrates comprehensive digital and analog functions, making it suitable for industrial automation, consumer appliances, and advanced instrumentation. The PIC18F66J15-I/PT is housed in a 64-pin TQFP package, providing ample I/O and memory resources for complex embedded applications.

Main capabilities and structural design of PIC18F66J15-I/PT

At the heart of the PIC18F66J15-I/PT is the PIC18 enhanced microcontroller core, delivering up to 40 MHz operation in an 8-bit architecture optimized for C language programmability and code efficiency. Key architectural components include:

C compiler-optimized core with an optional extended instruction set, beneficial for applications using high-level languages and requiring re-entrant code support.

Single-cycle 8 × 8 hardware multiplier for efficient arithmetic processing.

User-selectable extended instruction set for complex operations and flexible memory addressing.

These architectural choices enable robust real-time performance and code portability across a range of application scales.

Embedded peripherals and built-in features of PIC18F66J15-I/PT

The PIC18F66J15-I/PT stands out for its comprehensive on-chip peripheral set, enabling system integration and minimizing the need for external components:

Multiple communication interfaces: Two Enhanced Universal Synchronous Asynchronous Receiver Transmitters (EUSARTs) support RS-232, RS-485, and LIN protocols; two MSSP modules with SPI and I²C (both Master/Slave modes).

Up to five Capture/Compare/PWM (CCP/ECCP) modules supporting advanced motor control, power conversion, and signal generation algorithms. The ECCP modules include features such as programmable dead time, auto-shutdown, and full-/half-bridge PWM outputs.

10-bit Analog-to-Digital Converter (A/D) with up to 11 input channels on the 64-pin configuration, supporting precise monitoring and sensor interfacing.

Dual analog comparators with voltage reference support and flexible input multiplexing.

Wide range of timers (including 8/16-bit modes), brown-out detection, programmable power-on reset (POR), and watchdog timer (WDT) with extended programmable timeout.

These peripherals provide engineers with the flexibility to design versatile embedded systems with minimal board space and lower system costs.

Memory capacity and support for external storage in PIC18F66J15-I/PT

Significant program and data memory resources make the PIC18F66J15-I/PT suitable for demanding embedded applications:

96 KB (48K x 16) self-programmable Flash memory for code, with 100 typical erase/write cycles and 20+ years data retention, supporting over-the-air firmware updates and configuration retention.

8 KB (3,936 x 8) SRAM for dynamic application variables and buffering.

EEPROM-like data retention achieved via Flash; no separate EEPROM block.

External memory bus interface available on extended family members for applications requiring beyond 128 KB code or large data-set storage, via 8/16/20-bit addressing over up to 2 MBytes.

Such capacities allow implementation of feature-rich user interfaces, modular communication stacks, and real-time control logic within a single device.

Clock configuration and energy management in PIC18F66J15-I/PT

Robust clock generation and power-saving modes are critical in embedded systems. The PIC18F66J15-I/PT provides:

Multiple oscillator sources: two crystal/ceramic resonator modes (up to 40 MHz), two external clock modes with divide-by-4 capability, integrated Phase-Locked Loop (PLL) for frequency multiplication, and an ultra-low-power 31 kHz internal RC oscillator for standby operation.

Advanced power management: alternate run modes select lower-power clock sources during code execution, multiple idle and sleep modes allow disabling CPU or both CPU and peripherals to minimize power consumption, and on-the-fly mode switching facilitates dynamic adaptation.

Fail-Safe Clock Monitor and Two-Speed Start-up ensure continuous safe operation and rapid wake-up from sleep, directly supporting reliability in harsh or power-constrained environments.

These features help engineers design systems with low energy budgets, extended battery life, or stringent thermal requirements.

Physical and environmental characteristics of PIC18F66J15-I/PT

For reliability and design compatibility, the PIC18F66J15-I/PT offers:

Operating voltage: 2.0V to 3.6V, suitable for modern, low-power embedded designs.

Industrial temperature range: -40°C to +85°C (TA), making it suitable for demanding operating environments.

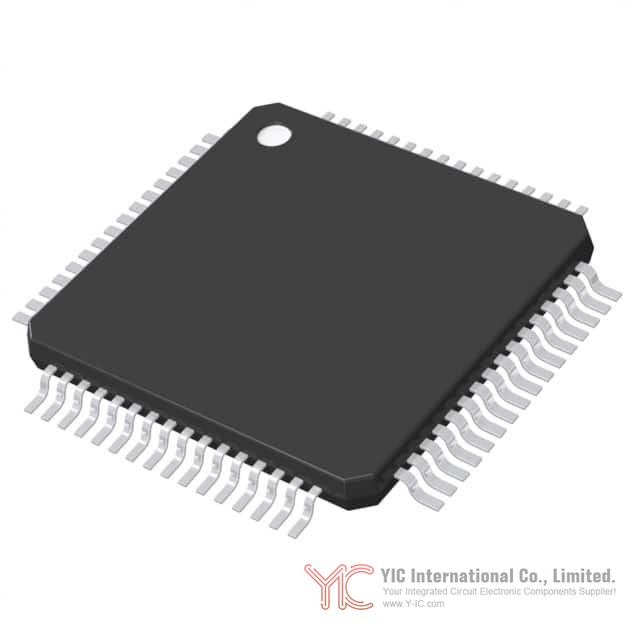

64-pin TQFP (10x10 mm) surface-mount package, enabling dense multi-function boards while maintaining compact assembly.

RoHS3 and REACH compliance, with MSL 3 (168 hours) classification for safe storage and soldering practices.

Such specifications make the device ready for use in cost-sensitive mass production as well as higher-robustness applications.

Possible alternative or substitute models for PIC18F66J15-I/PT

Engineers seeking alternatives within the Microchip portfolio due to application evolution or supply chain considerations can consider related devices:

For increased program memory and additional I/O/channels: PIC18F67J10 and PIC18F87J10 offer up to 128 KB Flash and 80-pin packages.

For applications with reduced program memory needs: PIC18F65J15 (48 KB Flash) and PIC18F66J10 (64 KB Flash) maintain the same peripheral set and pin compatibility.

For migration between package sizes, the 64-pin PIC18F66J15-I/PT remains pin-compatible with other family members, while transitioning to 80-pin versions allows increased analog and digital resources.

For legacy or high-end migration: Pin compatibility with PIC18F8722 and other PIC18 families supports long-term platform evolution and design preservation.

Selecting suitable replacements requires balancing code size, I/O requirements, and mechanical constraints across the application’s lifecycle.

Conclusion

The Microchip PIC18F66J15-I/PT demonstrates a well-engineered blend of high performance, low power, and robust peripheral integration, equipping product developers with the tools for diverse and scalable embedded control solutions. Its flexible architecture, rich set of analog/digital features, and reliable operation across typical industry environments ensure that the PIC18F66J15-I/PT remains a compelling choice for both new designs and ongoing platform refreshes. The availability of compatible models and migration support further addresses supply chain and future-proofing needs, making the PIC18F66J15-I/PT a strong candidate for critical embedded design roles.
