Microchip Technology MIC5205-3.3YM5-TR

MIC5205-3.3YM5-TR from Microchip Technology Product Summary

The MIC5205-3.3YM5-TR is a fixed 3.3V linear voltage regulator produced by Microchip Technology, designed to deliver up to 150 mA output current in a compact SOT-23-5 package. As part of the MIC5205 series, this device offers a low-noise, low-dropout power solution, specifically targeting applications where size, efficiency, and quiet operation are paramount. The regulator is a positive, single-output LDO (Low Dropout) type, making it ideal for modern electronics demanding stable power rails for high-performance, noise-sensitive loads.

Main Attributes and Benefits of the MIC5205-3.3YM5-TR

The MIC5205-3.3YM5-TR distinguishes itself through a suite of technical advantages optimized for battery-powered and portable applications:

Ultra-low output noise, critical for RF or analog-sensitive circuitry

Precise output voltage accuracy (initial accuracy better than 1%)

Guaranteed continuous output current of 150 mA

Very low quiescent current, enhancing system efficiency and battery lifetime

Low dropout voltage (as little as 17 mV at light load, typically 165 mV at full rated current)

Robust load and line regulation performance

Minimal temperature coefficient, ensuring stable operation across a wide temperature range

Protection features: current limit, thermal shutdown, reverse-battery protection

Zero off-mode current with full shutdown capability via CMOS or TTL-compatible enable input

These features make the MIC5205-3.3YM5-TR especially suitable for precision applications where power supply quality directly affects end-device performance and reliability.

Electrical Specifications and Performance Data for MIC5205-3.3YM5-TR

The regulator operates from a supply input range of 2.5V to 16V, with absolute maximum ratings extending from -20V to +20V for both input and enable pins. At 100 mA load current, the ground current is only 600 μA, minimizing parasitic drain. Dropout voltage is tightly controlled—under light load, it is typically 17 mV, and at 150 mA, it remains typically 165 mV, making the device ideal for low-voltage battery operation.

Thermal specs give a maximum allowable junction temperature of 125°C, and the SOT-23-5 thermal resistance (junction-to-ambient) is 220°C/W (with standard PCB mounting). Important performance curves available from Microchip include power supply rejection ratio (PSRR), ripple rejection versus voltage drop, and output noise characteristics, supporting designers’ assessment of the IC’s suitability for sensitive analog/RF subsystems.

Use Cases and Application Areas of MIC5205-3.3YM5-TR

The MIC5205-3.3YM5-TR’s profile fits a wide spectrum of applications:

Cellular handsets and portable telecom equipment

Laptop computers, notebooks, palmtop PCs

Battery-powered consumer or personal electronics

PCMCIA VCC/VPP regulation and switching

Power supplies requiring post-regulation for switch-mode modules

Keep-alive circuits in CMOS RAM

High-efficiency linear power rails in compact, battery-driven systems

Its ultra-low noise and high PSRR support use in applications with direct analog or RF signal processing, or where “quiet” power rails are required for system accuracy and minimal interference.

Guidelines for Incorporating MIC5205-3.3YM5-TR into Designs

Successful use of the MIC5205-3.3YM5-TR hinges on several practical design points:

The enable/shutdown input is compatible with CMOS logic; connecting EN to high (above 2V) enables regulation. If not used, EN can be tied directly to VIN.

Input capacitance: A 1 μF ceramic capacitor from IN to GND is recommended, notably where supply leads exceed 25 centimeters, or battery input is implemented.

Reference bypass: Connecting a 470 pF capacitor from BYP to GND minimizes output noise but requires increasing output capacitance (2.2 μF minimum) to maintain stability. Larger BYP capacitance increases start-up (ramp) time; if fast turn-on is needed or if noise is a secondary concern, the BYP cap can be omitted.

Output capacitor: A minimum of 1 μF is mandatory for stable operation without a BYP capacitor; 2.2 μF or larger is recommended if BYP is present. ESR should be less than 5Ω, and resonant frequency over 1 MHz for optimal suppression and stability.

At extremely light load currents (below 10 mA), output capacitance requirements may be reduced for further miniaturization or board space savings.

Thermal Analysis of MIC5205-3.3YM5-TR in Engineering Applications

Given the compact SOT-23-5 package and output current capability, power dissipation analysis is necessary to prevent excessive die temperature or thermal shutdown. The maximum power dissipation (PDmax) is given by:

PDmax = (TJmax - TA) / θJA

Where TJmax is 125°C, TA is ambient temperature, and θJA is 220°C/W on standard board. For instance, with TA = 25°C, PDmax is 455 mW. Thus, at 3.3V output and 150 mA, the maximum input supply voltage should not exceed approximately 6.2V to avoid exceeding PDmax and ensure long-term reliability.

Designers must consider board layout for thermal path optimization and operating environment. Applications that push package or thermal boundaries should include robust thermal management strategies, referencing Microchip application notes for advanced topics.

Comprehensive Pinout Description for MIC5205-3.3YM5-TR

The SOT-23-5 pin functions for MIC5205-3.3YM5-TR are configured as follows:

IN: Supply voltage input

GND: Ground reference

EN: Enable/shutdown (logic-level activation)

BYP: Reference bypass (noise suppression)

OUT: Regulated 3.3V output

Pin allocation is critical for PCB layout to achieve optimal noise performance and thermal dissipation.

Package Details, Labeling, and Mechanical Drawings for MIC5205-3.3YM5-TR

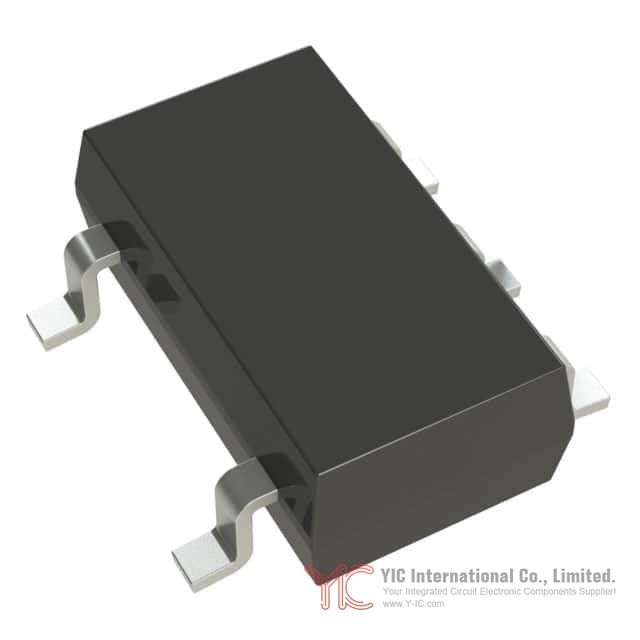

MIC5205-3.3YM5-TR comes in a lead-free, RoHS-compliant SOT-23-5 package, supporting high-density PCB assembly and reflow soldering requirements. Microchip provides clear marking codes for traceability, including date and lot identifiers. The recommended land pattern follows conventional SOT-23-5 standards to ensure mechanical robustness and thermal conduction.

For most updated package outlines and further mechanical data, consult Microchip's official packaging specifications and documentation.

Alternative and Substitute Models for MIC5205-3.3YM5-TR

For designs seeking alternatives or upgrades, potential equivalents include other members of the MIC5205 series in different output voltage configurations, as well as adjustable variations (e.g., MIC5205-xxYM5 adjustable). Additionally, Microchip’s μCap MIC5245/6/7 family is suggested for those requiring ceramic output capacitor stability or higher current ratings. Always verify replacement compatibility based on voltage, current, dropout, package, and noise characteristics for the intended application.

Conclusion

The MIC5205-3.3YM5-TR from Microchip Technology is a versatile and robust low-dropout linear regulator, featuring ultra-low noise and impressive quiescent efficiency—essential for battery-powered, portable, and noise-critical electronics. Its highly integrable SOT-23-5 form factor, advanced protection features, and flexible enable/shutdown logic empower engineers to address strict power management and analog integrity requirements. By following best practices in thermal management and layout, and by considering application-specific capacitance strategies, product selection engineers and procurement professionals can ensure a reliable, high-performance power solution for next-generation designs.
